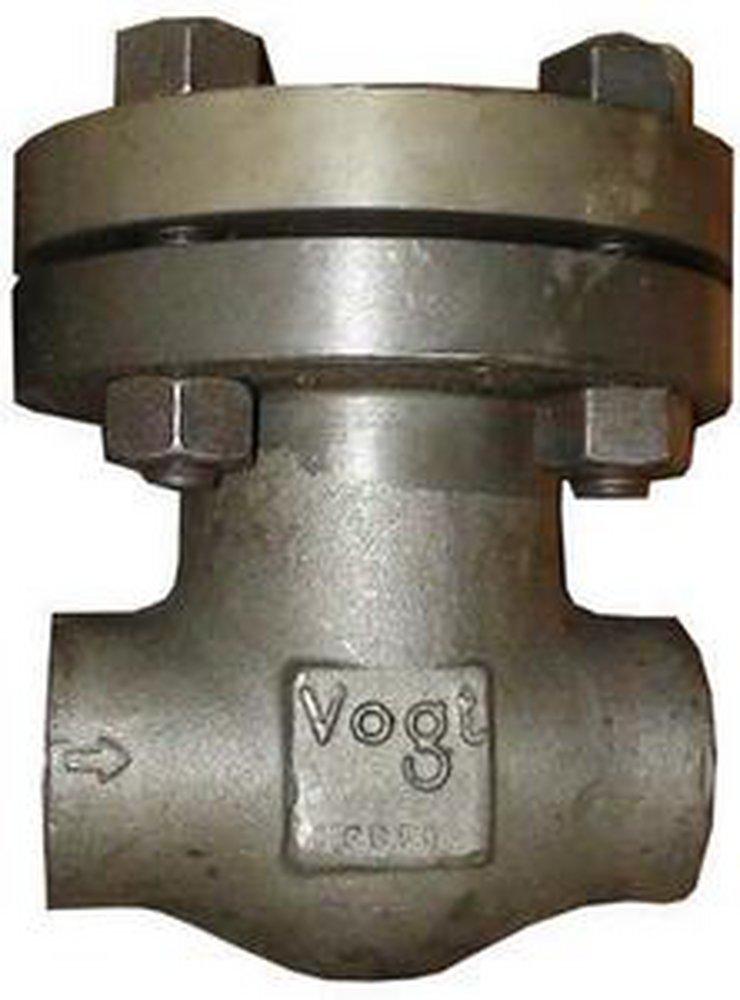

1in. 800# Thrd A105 T8 Piston Check Valve Reduced Port Bolted Cover Forged Steel, API 602
Vogt Valves
701 Series 1in. 800# Thrd A105 T8 Piston Check Valve Reduced Port Bolted Cover Forged Steel, API 602
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 1 Pallet: 293
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Vogt Valves
701 Series
1in. 800# Thrd A105 T8 Piston Check Valve Reduced Port Bolted Cover Forged Steel, API 602
GPB85VV001002
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Round bolted bonnet
- Spiral wound gasket
- Horizontal type
- Integral hard faced seat
Specifications
- API:
- API 602
- ASME:
- ASME B16.34
- ASTM:
- ASTM A-105
- Collection:
- 701 Series
- End Connection 1:
- Threaded
- End Connection 2:
- Threaded
- End Connections:
- Threaded
- Length:
- 4-31/50 in
- NSF Certified:
- No
- Pressure - High:
- 1975
- Pressure Class:
- 800#
- UL Listed:
- No
- UPC:
- 698554001965
- Valve Body Material:
- Forged Steel
- Valve Bonnet Type:
- Bolted
- Valve Disc Material:
- CR 13
- Valve Port Opening:
- Standard Port
- Valve Seat Material:
- Integral HF
- Valve Size:
- 1 in
- Valve Type:
- Piston Check Valve
- Weight:
- 6.5 lb
