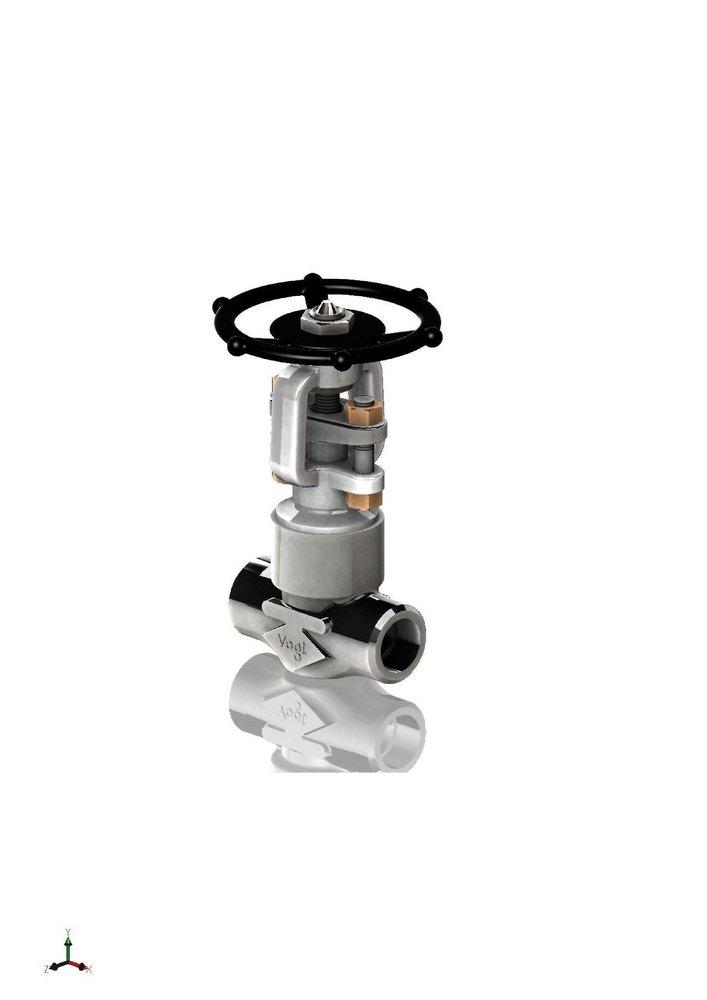

1/2 in. Forged Steel Conventional Port Socket Weld Gate Valve
Vogt Valves
Series 2801 1/2 in. Forged Steel Conventional Port Socket Weld Gate Valve
Package Quantity Info:
Each: 1 Inner Pack: 1
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Vogt Valves
Series 2801
1/2 in. Forged Steel Conventional Port Socket Weld Gate Valve
AAC83VV001002
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Solid wedge
- Hard faced seats
Specifications
- API:
- API 602
- ASME:
- ASME B16.34
- ASTM:
- ASTM A105
- Coating:
- Hardfaced
- Collection:
- Series 2801
- End Connection 1:
- Socket Weld
- End Connection 2:
- Socket Weld
- End Connections:
- Socket Weld
- Handle Length (in):
- 4 in
- Length:
- 3-19/50 in
- Material:
- Forged Steel
- Material Type:
- A105
- Maximum Temperature:
- 100
- Pressure - Maximum:
- 1975 psi
- Pressure Class:
- 800#
- UPC:
- 698554021123
- Valve Body Material:
- Forged Steel
- Valve Body Style:
- Socket Weld
- Valve Bonnet Type:
- Welded
- Valve Operator:
- Handwheel
- Valve Port Opening:
- Standard Port
- Valve Size:
- 1/2 in
- Valve Stem:
- Outside
- Valve Type:
- Gate Valve
- Weight:
- 3.6 lb
