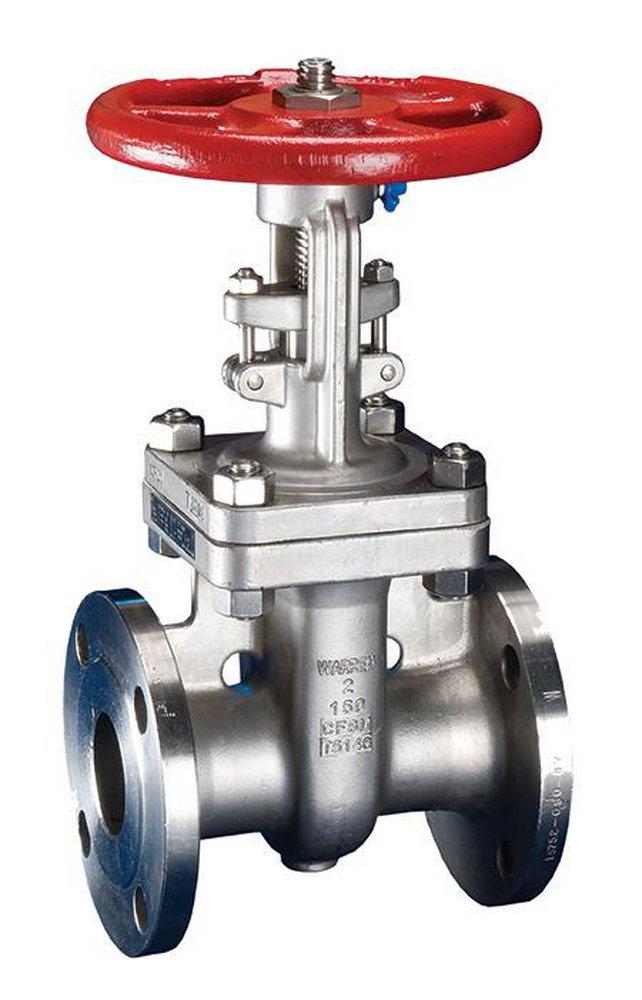

2 in. 300# RF FLG CF8M T10 Gate Valve PTFE Packing, ASME B16.34, Stainless Steel 316 Body, Trim 10, Bolted Bonnet
Warren Valve LP
2 in. 300# RF FLG CF8M T10 Gate Valve PTFE Packing, ASME B16.34, Stainless Steel 316 Body, Trim 10, Bolted Bonnet
Package Quantity Info:
Each: 1 Inner Pack: 1 Pallet: 15
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Warren Valve LP
2 in. 300# RF FLG CF8M T10 Gate Valve PTFE Packing, ASME B16.34, Stainless Steel 316 Body, Trim 10, Bolted Bonnet
1306 2
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- NACE compliant, OS&Y, rising stem, flexible wedge, bolted bonnet, packing & gasket (Low fugitive emission)
- Also available in our WA Series 2 in - 12 in
Documents
Specifications
- ANSI:
- ANSI 304, ANSI B16.10, ANSI B16.34, ANSI B16.512
- ASTM:
- ASTM A193 Grade 8B, ASTM A193 Grade B8MA, ASTM A194 Grade 8MA, ASTM A276 Grade 304, ASTM A276 Grade 316, ASTM A351 Grade CF8, ASTM A351 Grade CF8M, ASTM A439 Grade D2C, ASTM A536, ASTM A666 Grade 304
- End Connection 1:
- Flanged
- End Connection 2:
- Flanged
- End Connections:
- Flanged
- FM Approved:
- No
- Handle Material:
- Ductile Iron
- Length:
- 8-1/2 in
- MSS:
- MSS SP-55
- Material:
- Stainless Steel
- Material Type:
- 316L, CF8M, Stellite 6
- NSF Certified:
- No
- Origin:
- Global
- Pressure Class:
- 300#
- Recommended Valve Application:
- Gas, Oil, Petrochemical
- UL Listed:
- No
- Valve Body Material:
- Stainless Steel
- Valve Body Style:
- Flanged
- Valve Bonnet Type:
- Bolted
- Valve Disc Material:
- Stainless Steel
- Valve Operator:
- Handwheel
- Valve Port Opening:
- Full Port
- Valve Seat Material:
- Stellite
- Valve Size:
- 2 in
- Valve Stem:
- Rising
- Valve Type:
- Gate Valve
