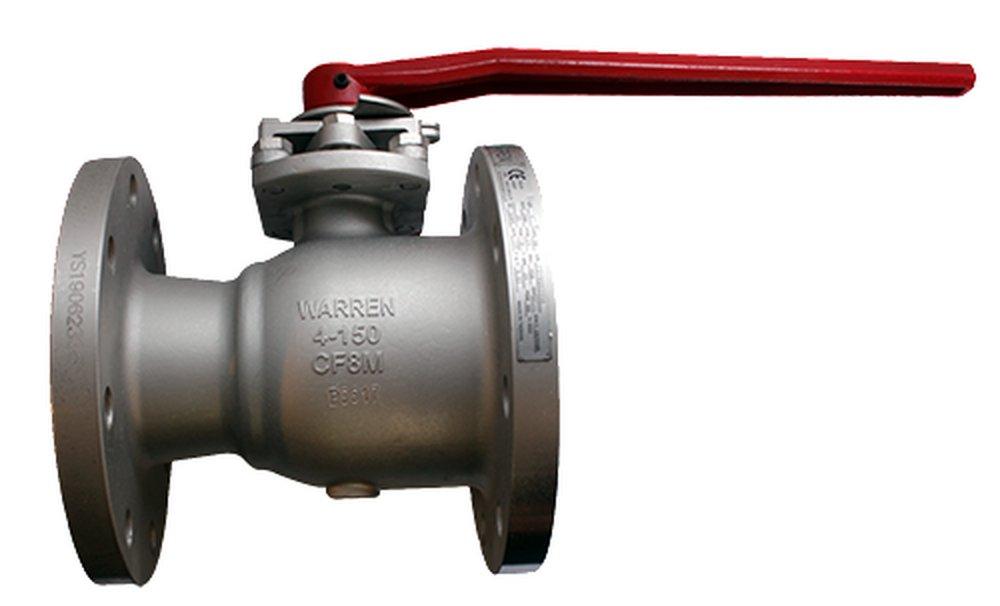

2 in. Stainless Steel Reduced Port Flanged 150# Ball Valve
Warren Valve LP
5156FS Series 2 in. Stainless Steel Reduced Port Flanged 150# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Pallet: 42
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Warren Valve LP
5156FS Series
2 in. Stainless Steel Reduced Port Flanged 150# Ball Valve
5156FS 2
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Locking device
- ISO 5211 mounting pad
- Anti-static device
- Fire safe
- NACE compliant
- Graphite packing
- Low fugitive emission
Documents
Specifications
- ANSI:
- ANSI Class 150
- API:
- API 607
- ASME:
- ASME B16.34
- ASTM:
- ASTM A-193 Grade B8, ASTM A-276 Type 316, ASTM A-351 Grade CF8M, ASTM A-666
- Collection:
- 5156FS Series
- End Connection 1:
- Flanged
- End Connection 2:
- Flanged
- End Connections:
- Flanged
- Height:
- 5-49/50 in
- ISO:
- ISO 5211
- Length:
- 7 in
- Material:
- Stainless Steel, Plastic
- Material Type:
- CF8M, RPTFE
- Pressure - High:
- 150
- Pressure Class:
- 150#
- Recommended Valve Application:
- Residential
- Valve Body Material:
- Stainless Steel
- Valve Body Style:
- 1 piece
- Valve Disc Material:
- Stainless Steel
- Valve Operator:
- Locking Lever Handle
- Valve Port Opening:
- Standard Port
- Valve Seat Material:
- RPTFE
- Valve Size:
- 2 in
- Valve Type:
- Ball Valve
