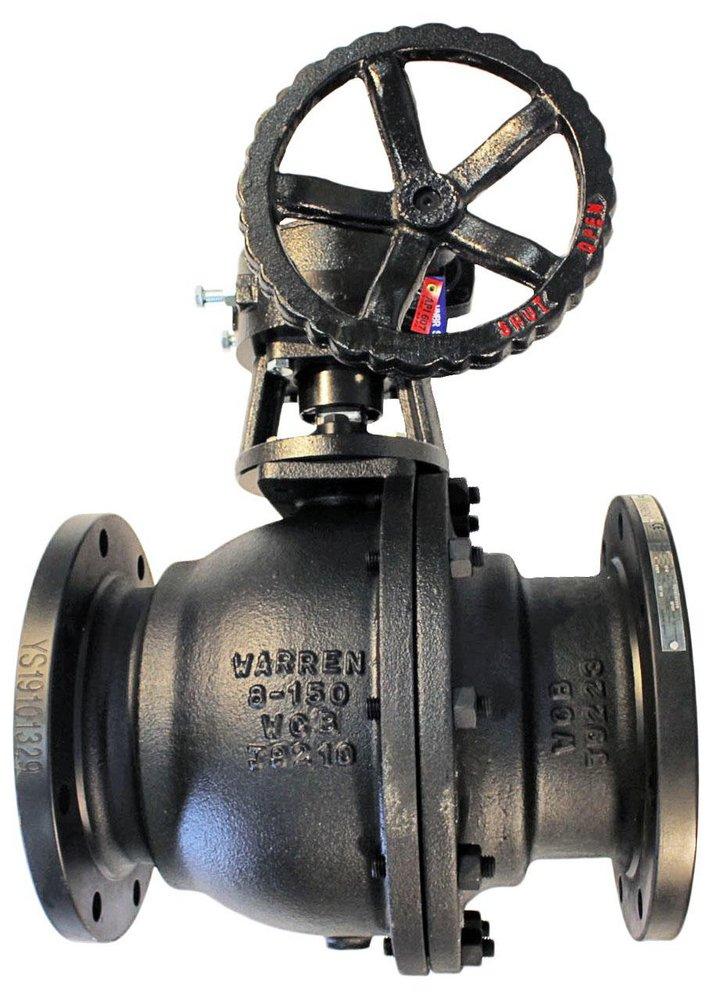

1 in. Carbon Steel and Stainless Steel Full Port Flanged 150# Ball Valve
You last purchased this on
Warren Valve LP
6155FS Series 1 in. Carbon Steel and Stainless Steel Full Port Flanged 150# Ball Valve
Purchase history
Warren Valve LP
6155FS Series
1 in. Carbon Steel and Stainless Steel Full Port Flanged 150# Ball Valve
6155FS 1
Order #
Order Date
Job Name
My PO#
Frequently Purchased Together
Product Details
Product Details
- Locking device
- ISO 5211 mounting pad
- Anti-static device
- Fire safe
- NACE compliant
- Graphite packing
- Low fugitive emission
Documents
Specifications
- ANSI:
- ANSI Class 150
- API:
- API 607
- ASTM:
- ASTM A-193 Grade B7M, ASTM A-194 Grade 2HM, ASTM A-216 Grade WCB, ASTM A-351 Grade CF8M, ASTM A-666
- Clean Bagged:
- No
- Collection:
- 6155FS Series
- End Connection 1:
- Flanged
- End Connection 2:
- Flanged
- End Connections:
- Flanged
- FM Approved:
- No
- Handle Material:
- Stainless Steel
- IAPMO Listed:
- No
- ISO:
- ISO 5211
- Length:
- 5 in
- Material:
- Carbon Steel, Stainless Steel, Plastic
- Material Type:
- A216-WCB, RPTFE, 304
- NSF Certified:
- No
- Pressure Class:
- 150#
- UL Listed:
- No
- Valve Body Material:
- Carbon Steel
- Valve Body Style:
- 2 piece
- Valve Disc Material:
- Stainless Steel
- Valve Operator:
- Locking Lever Handle
- Valve Port Opening:
- Full Port
- Valve Seat Material:
- RPTFE
- Valve Size:
- 1 in
- Valve Type:
- Ball Valve
