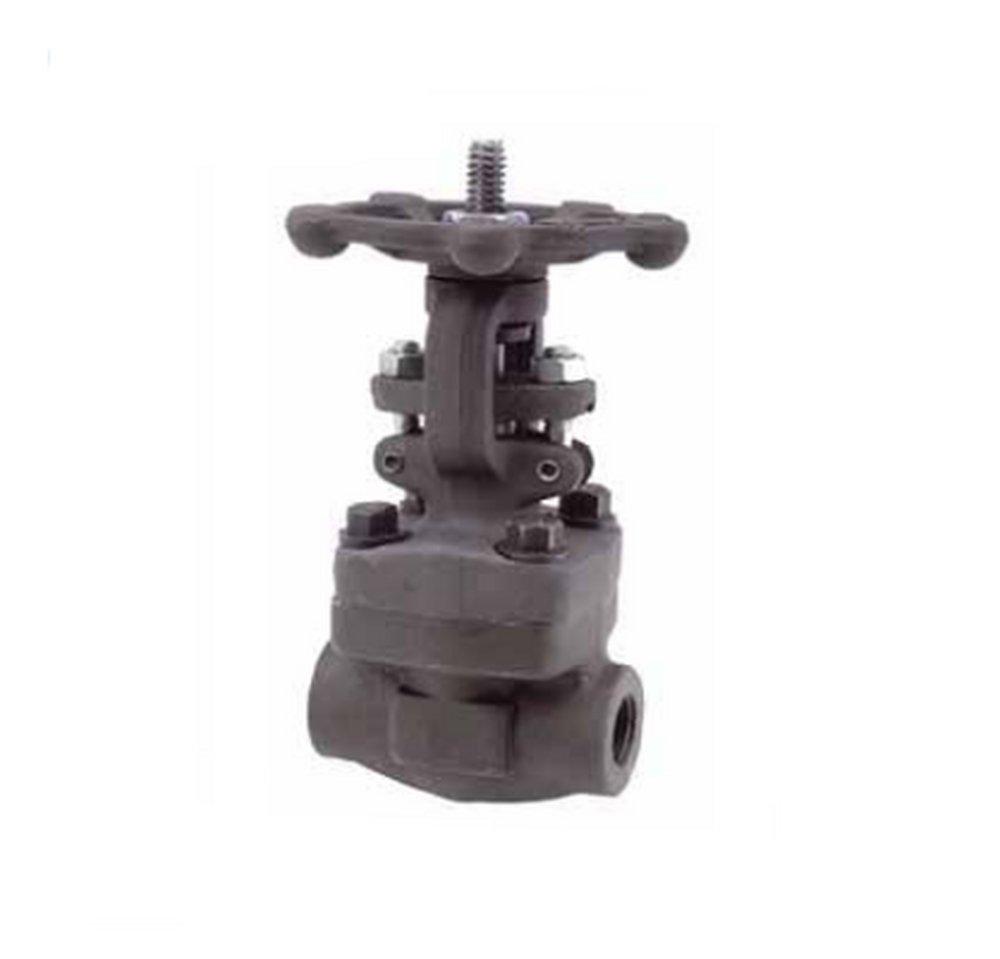

1 in. Forged Steel Standard Port Threaded Gate Valve
Warren Valve LP
Figure 851 1 in. Forged Steel Standard Port Threaded Gate Valve
Package Quantity Info:
Each: 1 Inner Pack: 1
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Warren Valve LP
Figure 851
1 in. Forged Steel Standard Port Threaded Gate Valve
851-T 1
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
Documents
Specifications
- ANSI:
- ANSI 800
- API:
- API 602
- ASTM:
- ASTM A105N, ASTM A182, ASTM A193 B7M, ASTM A193 B8, ASTM A197, ASTM A276, ASTM A276 Type 420, ASTM A479 Type 316
- Collection:
- Figure 851
- End Connection 1:
- NPT
- End Connection 2:
- NPT
- End Connections:
- NPT
- FM Approved:
- No
- Length:
- 4-37/100 in
- Material:
- Forged Steel
- NSF Certified:
- No
- Pressure - High:
- 1000
- Pressure Class:
- 800#
- Recommended Valve Application:
- Gas, Oil, Water
- UL Listed:
- No
- Valve Body Material:
- Forged Steel
- Valve Bonnet Type:
- Bolted
- Valve Operator:
- Handwheel
- Valve Port Opening:
- Standard Port
- Valve Seat Material:
- Solid Wedge
- Valve Size:
- 1 in
- Valve Stem:
- Rising
- Valve Type:
- Gate Valve
- Weight:
- 7.7 lb
