3 in Cast Iron Flanged Reduced Pressure Zone Assembly with Flood Sensor

Watts

LF009 Series 3 in Cast Iron Flanged Reduced Pressure Zone Assembly with Flood Sensor

  • Fast #
  • Part #WLF009LFFSM
  • Item #10039190
  • Manufacturer Part #F122650
5 out of 5 Customer Rating
Brand image

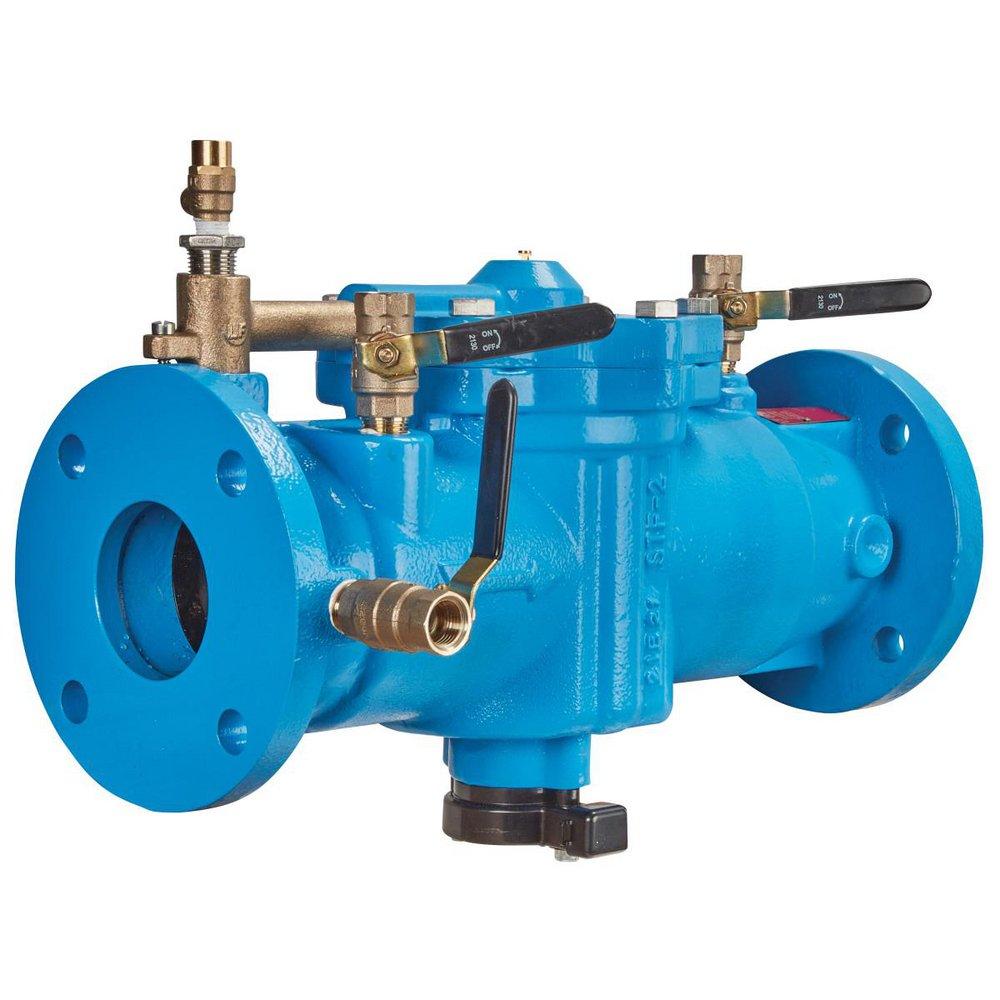

3 IN CAST IRON REDUCED PRESSURE ZONE BACKFLOW PREVENTER ASSEMBLY NO SHUTOFF VALVES ARMORTEK COATING BACKFLOW FLOOD SENSOR
3 IN CAST IRON REDUCED PRESSURE ZONE BACKFLOW PREVENTER ASSEMBLY NO SHUTOFF VALVES ARMORTEK COATING BACKFLOW FLOOD SENSOR
null
Watts

LF009 Series 3 in Cast Iron Flanged Reduced Pressure Zone Assembly with Flood Sensor

  • Fast #
  • Part #WLF009LFFSM
  • Item #10039190
  • Manufacturer Part #F122650
5 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Log in or Create an Account to see product availability.
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • Features an integrated flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve
  • Alert features available with add-on sensor connection kit
  • Utilizes advanced ArmorTek coating technology to resist corrosion of internals
  • The valve body shall utilize a coating system with built in electrochemical corrosion inhibitor and microbial inhibitor
  • Compact design
  • Single access cover and modular check construction for easy maintenance
  • No special tools required for servicing
  • Replaceable seats for economical repair
  • Captured springs for safe maintenance
  • ArmorTek™ coating technology to resist internal corrosion
  • Requires Certification

  • Lead Law Compliant

Specifications

ANSI:
ANSI 61-G
ASSE Standards:
ASSE 1013
AWWA:
AWWA C-511
CSA Certified:
CSA B64.4
Coating:
Epoxy
Collection:
LF009 Series
End Connection 1:
Flanged
End Connection 2:
Flanged
End Connections:
Flanged
Height:
11-1/2 in
IAPMO Listed:
Yes
Included:
Flood Sensor
Lead Law Compliance Level:
Lead Law Compliant and Certified
Lead Law Compliant:
Yes
Material:
Cast Iron
NSF:
NSF 61 G
NSF Certified:
Yes
Pressure - High:
175
Pressure - Maximum:
175 psi
Recommended Valve Application:
Potable Water
Temperature Range:
110 to 140 Deg F (43 to 60 Deg C)
UL Listed:
Yes
UPC:
098268520118
Valve Body Material:
Cast Iron
Valve Body Style:
Inline
Valve Seat Material:
Stainless Steel
Valve Size:
3 in
Valve Type:
Reduced Pressure Zone Assembly
Weight:
76 lb
