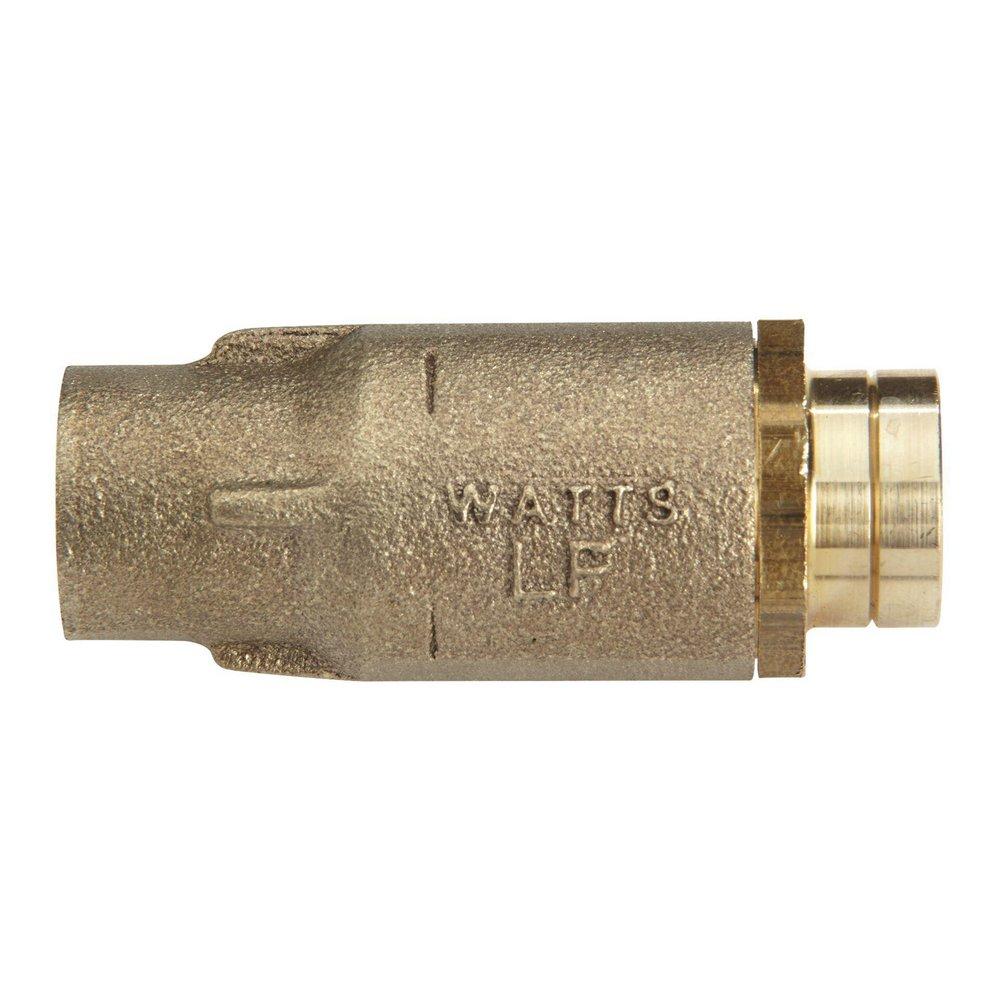

1 in. Solder Cast Copper Silicon Alloy Check Valve
You last purchased this on
Watts
LF601S Series 1 in. Solder Cast Copper Silicon Alloy Check Valve
Log in or Create Account
Log in or Create an Account to see product availability.
-
Pick Up: Not available
-
Shipping: Not available
Purchase history
Watts
LF601S Series
1 in. Solder Cast Copper Silicon Alloy Check Valve
0555183
Order #
Order Date
Job Name
My PO#
Frequently Purchased Together
Product Details
- Y-pattern
- Horizontal swing
- 200 SWP - 425° F 400 WOG - 150° F
- Non-shock
- Not intended for use in potable water
- Conforms to MSS SP-80 , Type 3
-
Lead Law Compliant
Specifications
- ADA Compliant:
- No
- ANSI:
- ANSI B16.18
- Application:
- Commercial, Industrial, Residential, Solar
- BAA Compliant:
- Yes
- Clean Bagged:
- No
- Collection:
- LF601S Series
- Depth:
- 1-22/25 in
- End Connection 1:
- Sweat
- End Connection 2:
- Sweat
- End Connections:
- Sweat
- FM Approved:
- No
- Height:
- 1-7/8 in
- IAPMO Listed -:
- No
- Installation Type:
- Horizontal Mount, Vertical Mount
- Lead Law Compliance Level:
- Lead Law Compliant and Certified
- Lead Law Compliant:
- Yes
- Length:
- 3-13/16 in
- Material:
- Cast Copper Silicon Alloy, Brass, Copper Silicon Alloy, Rubber, Stainless Steel
- Material Type:
- Viton®
- Maximum Temperature:
- 100
- Minimum Temperature:
- -20
- NSF Certified:
- No
- Origin:
- Domestic
- Pressure - High:
- 250
- Recommended Valve Application:
- Water
- UL Listed:
- No
- Valve Body Material:
- Cast Copper Silicon Alloy
- Valve Body Style:
- Straight
- Valve Disc Material:
- FKM
- Valve Seat Material:
- Copper Silicon Alloy
- Valve Size:
- 1 in
- Valve Type:
- Silent Check Valve
- Weight:
- 1.0 lb
- Width:
- 1-22/25 in
