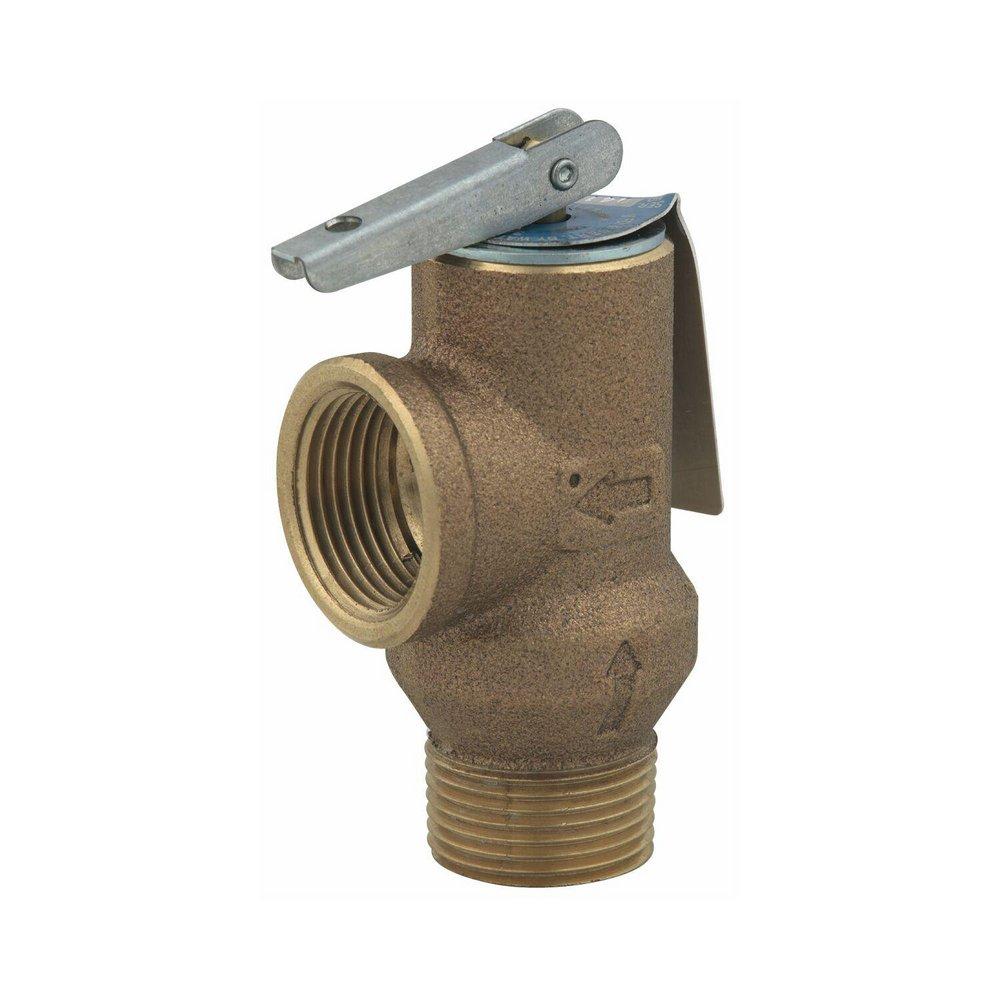

3/4 in. Bronze MNPT x FNPT 125# 210 Relief Valve
Watts
Series 3L 3/4 in. Bronze MNPT x FNPT 125# 210 Relief Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 50 Pallet: 3100
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Watts
Series 3L
3/4 in. Bronze MNPT x FNPT 125# 210 Relief Valve
0011640
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Spring loaded
- Non mechanical seat-to-disc alignment will not stick or freeze
- Lead free body
- Automatic reseating
- Seat located above drain, water cannot be trapped and sediment cannot foul seat
- Water seal of high temperature resisting material isolates spring working parts from water during relief
Specifications
- ANSI:
- ANSI Z21.22
- ASME:
- ASME Section IV
- Application:
- Water Heaters
- CSA Certified:
- CSA 4.4
- Collection:
- Series 3L
- End Connection 1:
- MNPT
- End Connection 2:
- FNPT
- End Connections:
- MNPT x FNPT
- Height:
- 3-11/64 in
- ISO:
- ISO 9001
- Lead Law Compliance Level:
- Applicable to Lead Leaching, Not Compliant
- Material:
- Brass, Plastic
- Material Type:
- Silicone
- Maximum Temperature:
- 210
- Number of Handles:
- Single Handle
- Origin:
- Domestic
- Pressure - Maximum:
- 94 psi
- Pressure Class:
- 125#
- Recommended Valve Application:
- Water
- UL Listed:
- Yes
- UPC:
- 098268001501
- Valve Body Material:
- Brass
- Valve Disc Material:
- Silicone
- Valve Operator:
- Lever Handle
- Valve Size:
- 3/4 in
- Valve Type:
- Pressure Relief Valve
- Weight:
- 0.52 lb
- Width:
- 1-5/32 in
