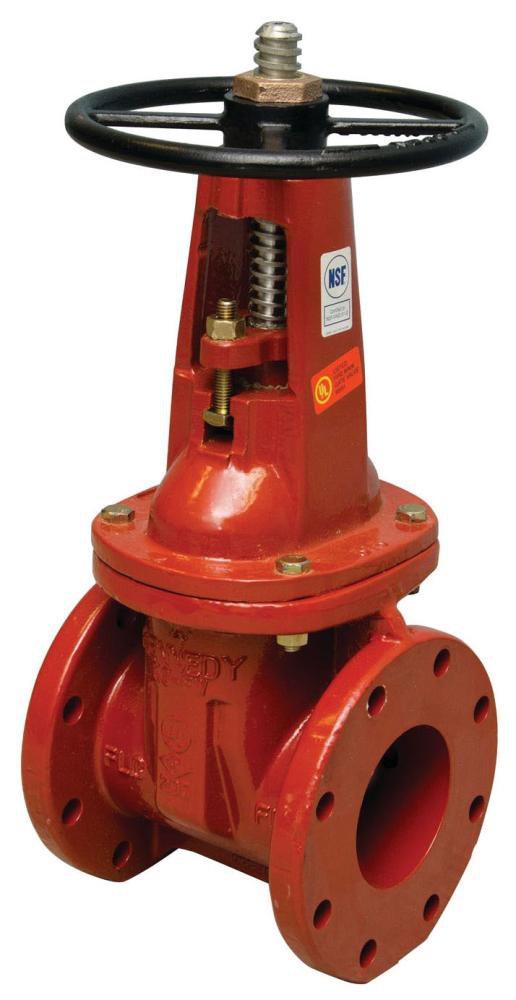

4 in. Flanged Cast Iron Straight Resilient Wedge Gate Valve
Watts
Series 408-OSYRW 4 in. Flanged Cast Iron Straight Resilient Wedge Gate Valve
Package Quantity Info:
Each: 1
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Watts
Series 408-OSYRW
4 in. Flanged Cast Iron Straight Resilient Wedge Gate Valve
0702320
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Full port flow, low head loss
- Encapsulated resilient wedge
- Easy in-line service
- Replaceable disc
- Lead-Free
- Cast iron hand wheel
- Epoxy coated cast iron body
- Resilient wedge disc
- Flanged connections
Specifications
- ANSI:
- ANSI B16.1, ANSI B16.10
- ASTM:
- ASTM A-126 Class B, ASTM A-307, ASTM A-563, ASTM B-36, ASTM B-584
- AWWA:
- AWWA C-509
- Coating:
- Epoxy
- Collection:
- Series 408-OSYRW
- End Connection 1:
- Flanged
- End Connection 2:
- Flanged
- End Connections:
- Flanged
- FM Approved:
- Yes
- Lead Law Compliance Level:
- Lead Free Not Certified, Approved for Non-Potable Water Applications
- Length:
- 9 in
- MSS:
- MSS SP-70
- Material:
- Cast Iron
- Maximum Temperature:
- 140
- NSF Certified:
- No
- Pressure - Maximum:
- 250 psi
- Pressure Class:
- 125#
- Proposition 65:
- WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Recommended Valve Application:
- Fire Protection
- UL Listed:
- Yes
- UPC:
- 098268089158
- Valve Body Material:
- Cast Iron
- Valve Body Style:
- Straight
- Valve Disc Material:
- Cast Iron
- Valve Operator:
- Cross Handwheel
- Valve Port Opening:
- Full Port
- Valve Size:
- 4 in
- Valve Stem:
- Rising OS&Y
- Valve Type:
- Resilient Wedge Gate Valve
- Weight:
- 100 lb
- Width:
- 9 in
