3 in. Cast Iron Mechanical Joint Backflow Preventer

Watts

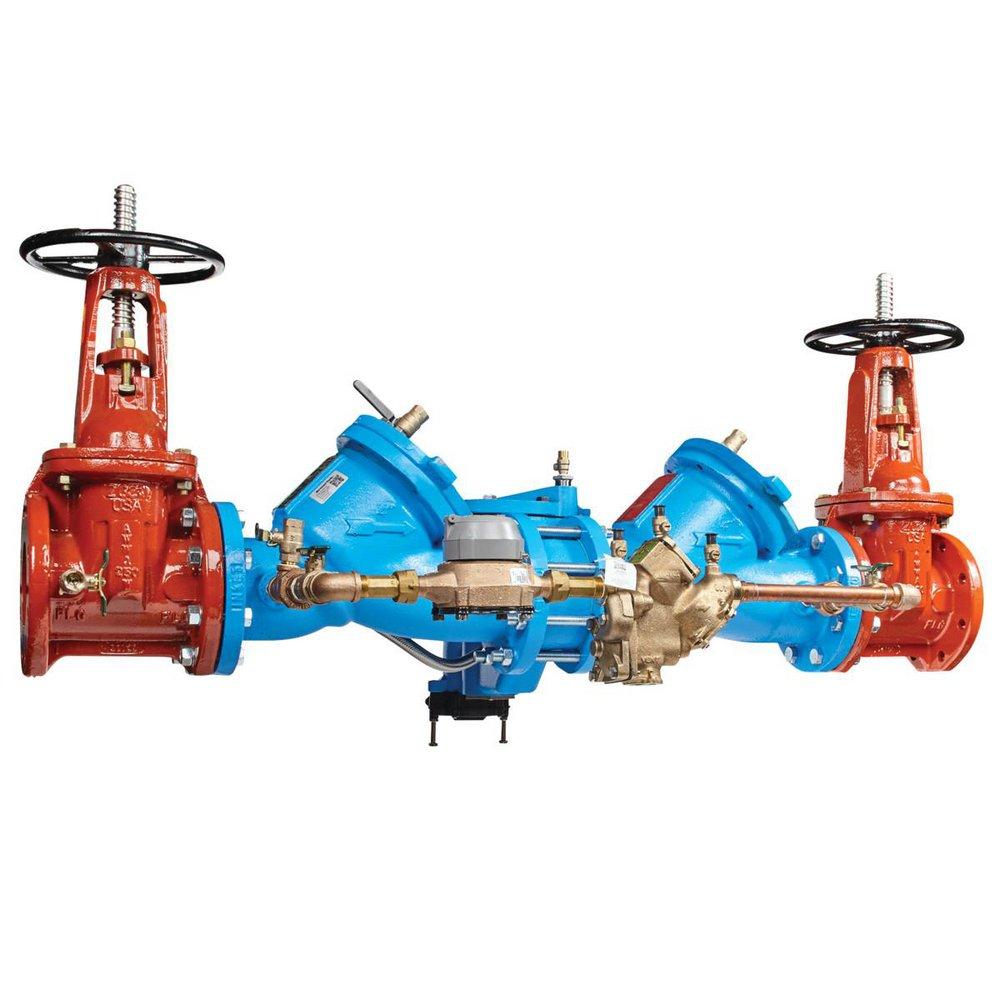

Series 909RPDA 3 in. Cast Iron Mechanical Joint Backflow Preventer

  • Fast #
  • Part #W909RPDAOSYGPMFS3M
  • Item #9776569
  • Manufacturer Part #88009366
4.6 out of 5 Customer Rating
Brand image
*CVR* 3 IN CAST IRON REDUCED PRESSURE DETECTOR ASSEMBLY BACKFLOW PREVENTER OSY SHUTOFF GALLONS/MINUTE METER ARMORTEK COATING BACKFLOW FLOOD SENSOR
*CVR* 3 IN CAST IRON REDUCED PRESSURE DETECTOR ASSEMBLY BACKFLOW PREVENTER OSY SHUTOFF GALLONS/MINUTE METER ARMORTEK COATING BACKFLOW FLOOD SENSOR
Watts

Series 909RPDA 3 in. Cast Iron Mechanical Joint Backflow Preventer

  • Fast #
  • Part #W909RPDAOSYGPMFS3M
  • Item #9776569
  • Manufacturer Part #88009366
4.6 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Log in or Create an Account to see product availability.
How to get it:
  • Pick Up   Not Available
    0  in  Alexandria, VA
    0 nearby
    Pick Up  Not Available
    Not available in VA
  • Shipping Not Available
    Not available at this time
    Shipping Not Available
    Not available in VA

Product Details

Product Details

  • Epoxy coated cast iron body
  • Furnished with a gallon per minute meter
  • Health hazard applications
  • Detects underground leaks and unauthorized water use
  • Maximum flow at low pressure drop
  • Simple design for easy maintenance
  • Compact for economy combined with performance
  • No special tools are required for servicing
  • Replaceable seats
  • Requires Certification

Specifications

ASSE Standards:
ASSE 1047
AWWA:
AWWA C-511 1992
BAA Compliant:
Yes
CSA Certified:
CSA B64
Coating:
Epoxy
Collection:
Series 909RPDA
End Connection 1:
Mechanical Joint
End Connection 2:
Mechanical Joint
End Connections:
Mechanical Joint
FM Approved:
Yes
Height:
20
IAPMO Listed:
No
Included:
Flood Sensor, Water Meter, OS and Y Gate
Lead Law Compliance Level:
Applicable to Lead Leaching, Not Compliant
Length:
42-1/4
Material:
Cast Iron
NSF Certified:
No
Number of Handles:
Two Handle
Pressure - High:
175
Pressure - Maximum:
175 psi
Recommended Valve Application:
Potable Water
Temperature Range:
33 to 140 Deg F (0.5 to 60 Deg C)
UL Listed:
Yes
UPC:
098268294316
Valve Body Material:
Cast Iron
Valve Body Style:
Inline
Valve Disc Material:
Rubber
Valve Material:
Cast Iron
Valve Operator:
Wheel Handle
Valve Seat Material:
Stainless Steel
Valve Size:
3 in
Valve Stem:
Outside
Valve Type:
Reduced Pressure Detector Assembly
Weight:
230
Width:
24
