10 in. Stainless Steel Flanged Backflow Preventer

Watts

Series 957-FS 10 in. Stainless Steel Flanged Backflow Preventer

  • Fast #
  • Part #W957DNRSFS10
  • Item #10001313
  • Manufacturer Part #F792324
3.4 out of 5 Customer Rating
Brand image

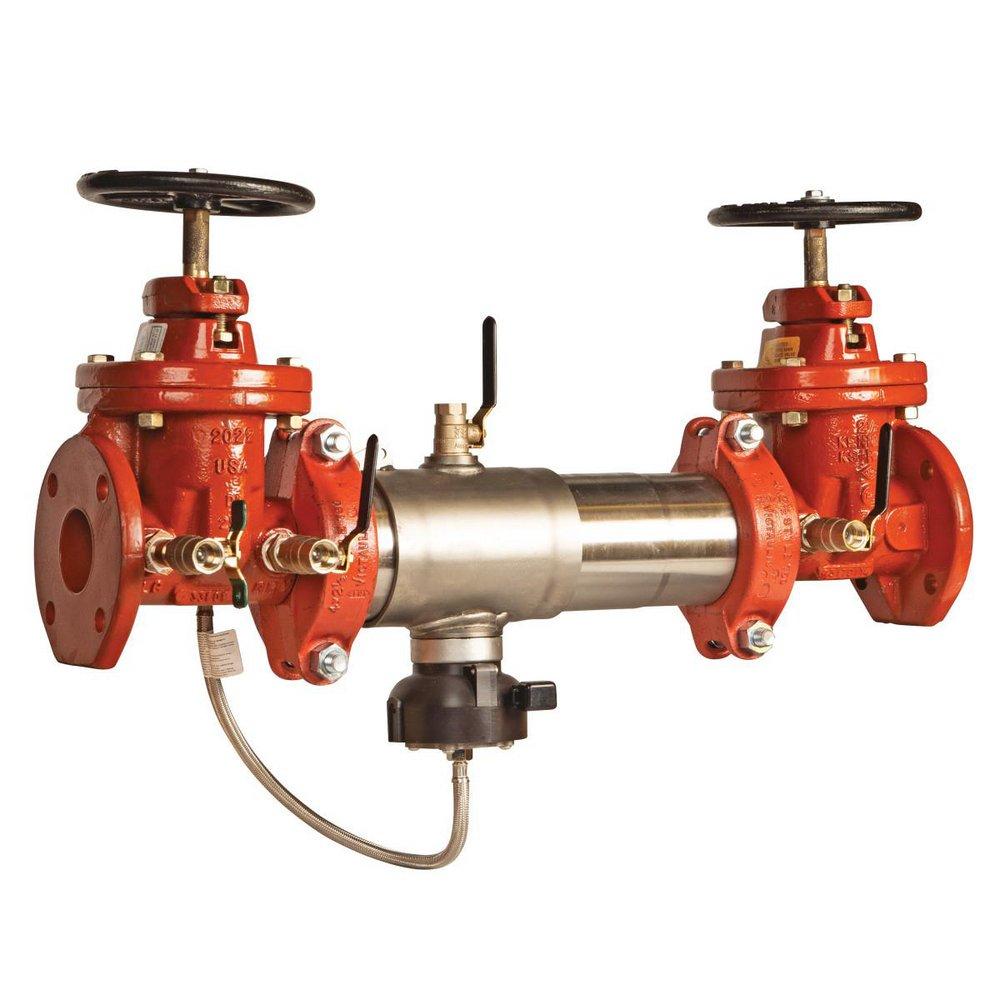

10 IN SS REDUCED PRESSURE ZONE ASSEMBLY BACKFLOW PREVENTER DOMESTIC NRS SHUTOFF VALVES BACKFLOW FLOOD SENSOR
10 IN SS REDUCED PRESSURE ZONE ASSEMBLY BACKFLOW PREVENTER DOMESTIC NRS SHUTOFF VALVES BACKFLOW FLOOD SENSOR
null
Watts

Series 957-FS 10 in. Stainless Steel Flanged Backflow Preventer

  • Fast #
  • Part #W957DNRSFS10
  • Item #10001313
  • Manufacturer Part #F792324
3.4 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • Features an integrated flood sensor with SentryPlus alert technology to detect excessive water discharges from the relief valve
  • Alert features available with add-on sensor connection kit
  • 304 (schedule 40) stainless steel housing and sleeve
  • UL and FM outside stem and yoke resilient seated gate valves
  • Sizes 2-1/2", 3", and 4" available with quarter-turn ball valve shutoffs
  • Replaceable check disc rubber
  • Extremely compact design
  • 70% Lighter than traditional designs
  • Groove fittings allow integral pipeline adjustment
  • Requires Certification

Specifications

ANSI:
ANSI 61-G
ASSE Standards:
ASSE 1013
AWWA:
AWWA C-511 1997
CSA Certified:
CSA B64.4
Coating:
Polymer
Collection:
Series 957-FS
End Connection 1:
Flanged
End Connection 2:
Flanged
End Connections:
Flanged
FM Approved:
Yes
Height:
64 in
Included:
Flood Sensor, Shutoff Valve(s)
Lead Law Compliance Level:
Applicable to Lead Leaching, Not Compliant
Material:
Stainless Steel
NSF:
NSF 61 G
NSF Certified:
Yes
Pressure - High:
175
Pressure - Maximum:
175 psi
Proposition 65:
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov
Recommended Valve Application:
Potable Water
Temperature Range:
33 to 140 Deg F (0.5 to 60 Deg C)
UL Listed:
Yes
UPC:
098268503654
Valve Body Material:
Stainless Steel
Valve Body Style:
Inline
Valve Disc Material:
Silicone
Valve Seat Material:
Engineered Plastic
Valve Size:
10 in
Valve Stem:
Non-rising
Valve Type:
Reduced Pressure Zone Assembly
Weight:
723 lb
Width:
30 in
