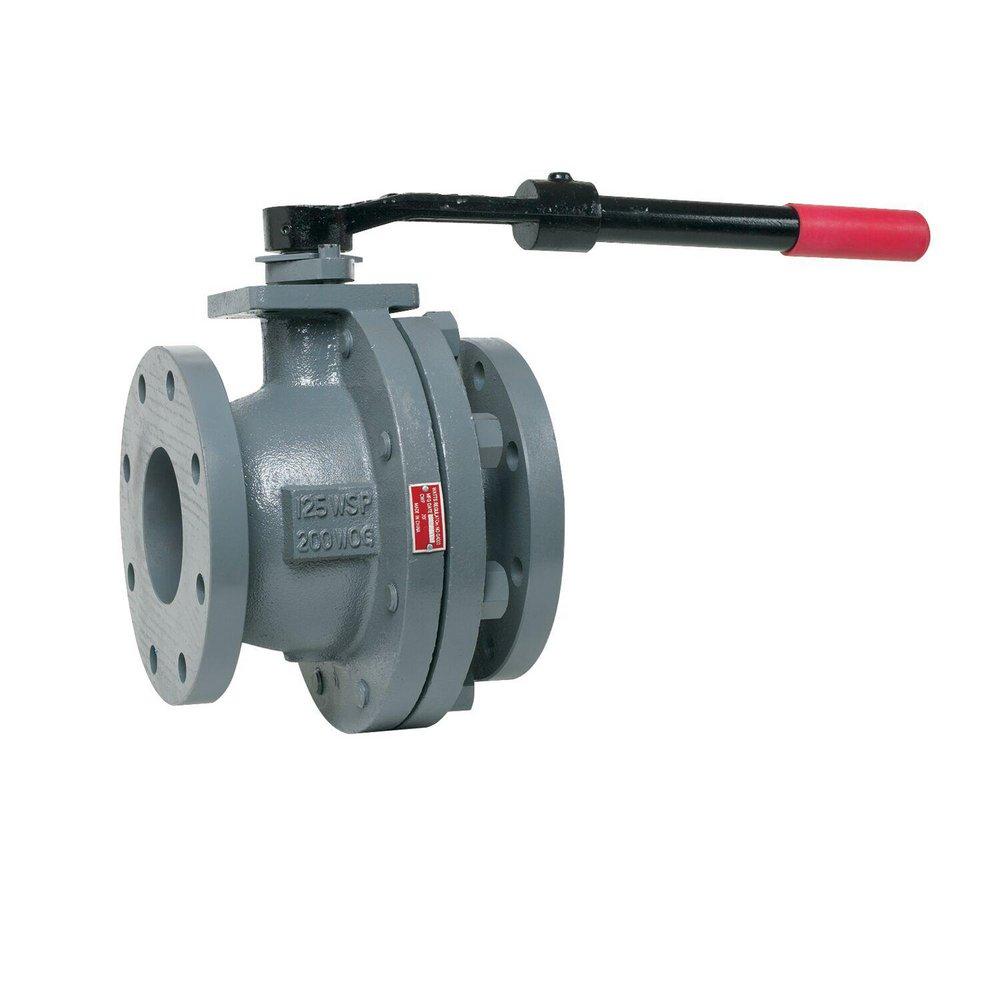

6 in. Cast Iron Full Port Flanged 125# Ball Valve
Watts
Series G4000M1 6 in. Cast Iron Full Port Flanged 125# Ball Valve
Package Quantity Info:
Each: 1
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Watts
Series G4000M1
6 in. Cast Iron Full Port Flanged 125# Ball Valve
0822654
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Cast iron
- Flanged
- Full port
- Stainless steel ball and stem
- Positive shutoff
- 2-piece body construction
- FDA approved epoxy-coated valve available
- Quarter-turn open or close operation, sizes 8 in. - 10 in. and manual gear operation
-
Not Compliant, Approved for Non-Potable Water Applications
Specifications
- ANSI:
- ANSI 16.10, ANSI B16.1
- ASTM:
- ASTM A-126 Class B, ASTM A-351, ASTM A-439, ASTM A-6
- Clean Bagged:
- No
- Collection:
- Series G4000M1
- End Connection 1:
- Flanged
- End Connection 2:
- Flanged
- End Connections:
- Flanged
- FM Approved:
- No
- Fire Suppression System Rated:
- No
- Handle Material:
- Ductile Iron
- Height:
- 12-1/2 in
- IAPMO Listed:
- No
- Lead Law Compliance Level:
- Not Compliant, Approved for Non-Potable Water Applications
- Length:
- 10-1/2 in
- MA Approved:
- No
- Material:
- Cast Iron
- Maximum Temperature:
- 353
- NSF Certified:
- No
- Origin:
- Global
- Pressure - High:
- 200
- Pressure Class:
- 125#
- Recommended Valve Application:
- Gas, Oil, Steam
- UL Listed:
- No
- UPC:
- 098268908879
- Valve Body Style:
- 2 piece
- Valve Operator:
- Lever Handle
- Valve Port Opening:
- Full Port
- Valve Seat Material:
- PTFE
- Valve Size:
- 6 in
- Valve Stem:
- Standard
- Valve Type:
- Ball Valve
- Weight:
- 118 lb
- Width:
- 14-1/2 in
- cUPC Certified:
- No
