1-1/2 in. Female Threaded 175 psi Bronze Double Check Valve Assembly

This product has been replaced by

LF 1-1/2 DBL CHK VLV BFP ASSY QT
Watts 1-1/2 in. Lead Free Double Check Valve Backflow Preventer Assembly
Manufacturer Part #T122619
Watts

Series LF007 1-1/2 in. Female Threaded 175 psi Bronze Double Check Valve Assembly

  • Fast #
  • Part #WLF007M2QTSJ
  • Item #4321435
  • Manufacturer Part #0122619
4.9 out of 5 Customer Rating
Brand image

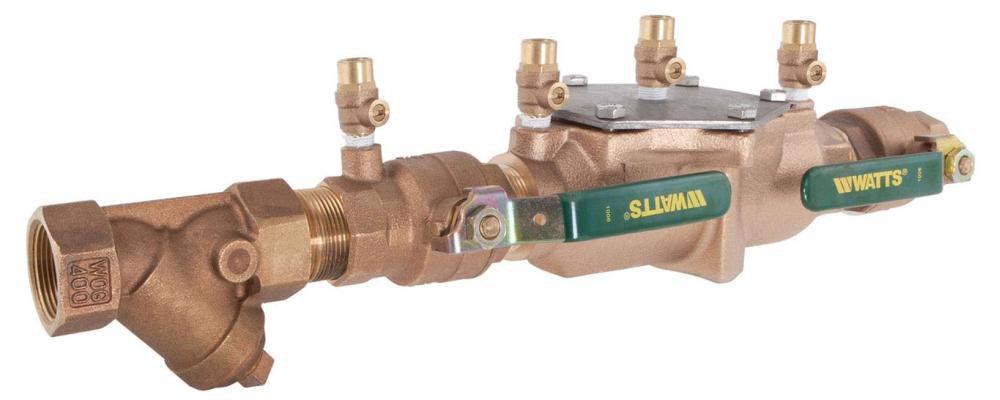

Watts Epoxy Coated Cast Copper Silicon Alloy FNPT 175 psi Backflow Preventer
Watts Epoxy Coated Cast Copper Silicon Alloy FNPT 175 psi Backflow Preventer

This product has been replaced by

LF 1-1/2 DBL CHK VLV BFP ASSY QT
Watts 1-1/2 in. Lead Free Double Check Valve Backflow Preventer Assembly
Manufacturer Part #T122619
Watts

Series LF007 1-1/2 in. Female Threaded 175 psi Bronze Double Check Valve Assembly

  • Fast #
  • Part #WLF007M2QTSJ
  • Item #4321435
  • Manufacturer Part #0122619
4.9 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • Ease of maintenance - only one cover
  • Top entry
  • Modular construction
  • Compact design
  • Top mounted Lead-Free ball valve test cock
  • Low pressure drop
  • No special tools required for servicing
  • Lead-Free
  • Requires Certification

  • Lead Law Compliant

Specifications

ANSI:
ANSI 61 Annex G
ASSE Standards:
ASSE 1015
AWWA:
AWWA C-510
CSA Certified:
CSA B64.5
Coating:
Epoxy
Collection:
Series LF007
End Connection 1:
FNPT
End Connection 2:
FNPT
End Connections:
FNPT x FNPT
FM Approved:
No
Height:
7-1/4 in
IAPMO Listed:
Yes
Installation Type:
Horizontal, Vertical
Lead Law Compliance Level:
Lead Law Compliant and Certified
Lead Law Compliant:
Yes
Length:
21-3/4 in
Material:
Bronze
Maximum Temperature:
180
Minimum Temperature:
33
NSF:
NSF 61G
NSF Certified:
Yes
Pressure - Maximum:
175 psi
Proposition 65:
WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Recommended Valve Application:
Water
Temperature Range:
33 to 180 Deg F (0.5 to 82 Deg C)
UL Listed:
No
UPC:
098268639735
Valve Body Material:
Cast Copper Silicon Alloy
Valve Body Style:
Inline
Valve Disc Material:
Rubber
Valve Operator:
Quarter Turn Handle
Valve Seat Material:
Rubber
Valve Size:
1-1/2 in
Valve Type:
Double Check Valve Assembly
Weight:
19.6 lb
Width:
9-1/2 in
