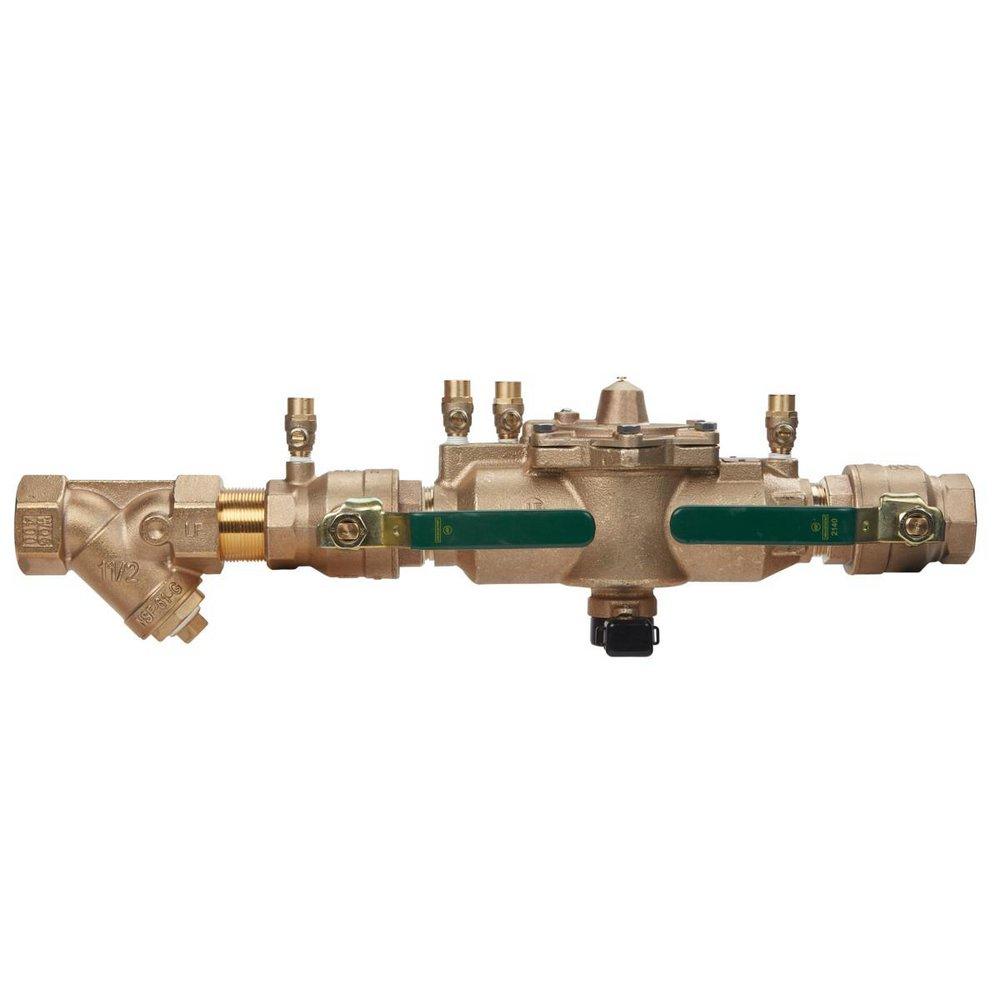

1-1/2 in. Cast Copper Silicon Alloy FPT Reduced Pressure Zone Assembly with Quarter Turn Shutoff Valves, Strainer and Flood Sensor
Watts
Series LF009 1-1/2 in. Cast Copper Silicon Alloy FPT Reduced Pressure Zone Assembly with Quarter Turn Shutoff Valves, Strainer and Flood Sensor
Package Quantity Info:
Each: 1 Inner Pack: 1Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Watts
Series LF009
1-1/2 in. Cast Copper Silicon Alloy FPT Reduced Pressure Zone Assembly with Quarter Turn Shutoff Valves, Strainer and Flood Sensor
88004084
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Features an integrated flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve
- Alert features available with add-on sensor connection kit
- Lead free bronze body construction for durability
- Furnished with a strainer
- Quarter turn Full port resilient seated ball valve shutoffs
- Single access cover and modular check construction for the ease of maintenance
- Internal relief valve for reduced installation clearances
- No special tools required for servicing
- Lead-Free
Dimensions & Measurements
End Connection 1
FPT
End Connection 2
FPT
End Connections
FPT
Height
6-3/4 in
Length
22-3/4 in
Pressure - Maximum
175 psi
Valve Size
1-1/2 in
Weight
16 lb
Width
9-1/2 in
Included Components
Included
Flood Sensor, Quarter-Turn Ball Valve(s), Strainer
Characteristics & Features
Collection
Series LF009
Material
Cast Copper Silicon Alloy, Plastic, Rubber
Material Type
Silicone
Proposition 65
CALIFORNIA PROP 65 WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Valve Body Material
Copper Silicon Alloy
Valve Body Style
Inline
Valve Disc Material
Silicone
Valve Operator
Tee Handle
Valve Port Opening
Full Port
Valve Seat Material
Plastic
Valve Type
Reduced Pressure Zone Assembly
Electrical & Operational Information
Maximum Temperature
180
Minimum Temperature
33
Pressure - High
175
Warranty & Product Information
ANSI
ANSI 61-G
ASSE Standards
ASSE 1013
AWWA
AWWA C-511
BAA Compliant
Yes
CSA Certified
CSA B64.4
FM Approved
No
IAPMO Listed
Yes
Lead Law Compliance Level
Applicable to Lead Leaching, Not Compliant
NSF
NSF 61-G
NSF Certified
Yes
Recommended Valve Application
Water
Type
WLF009M2QTSFS112
UL Listed
Yes
UPC
098268348583
