This product requires certification to purchase.

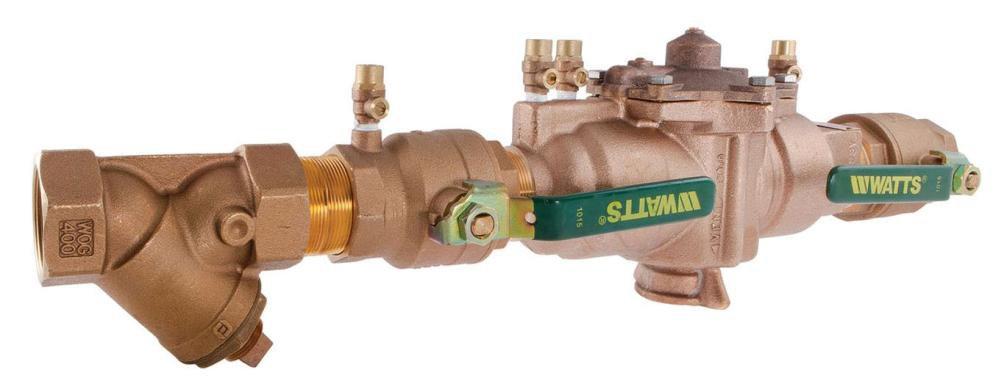

1-1/4 in. Cast Bronze FNPT Backflow Preventer

This product has been replaced by

Watts Cast Copper Cast Copper Silicon Alloy FNPT Backflow Preventer
Watts 1-1/4 in. Cast Copper Silicon Alloy FPT Reduced Pressure Zone Assembly with Quarter Turn Shutoff Valves, Strainer and Flood Sensor
Manufacturer Part #88004083
Watts

Series LF009 1-1/4 in. Cast Bronze FNPT Backflow Preventer

  • Fast #
  • Part #WLF009M2QTSH
  • Item #4321388
  • Manufacturer Part #0122688
5 out of 5 Customer Rating
Brand image
Watts Cast Bronze Cast Bronze FNPT Backflow Preventer
Watts Cast Bronze Cast Bronze FNPT Backflow Preventer

This product has been replaced by

Watts Cast Copper Cast Copper Silicon Alloy FNPT Backflow Preventer
Watts 1-1/4 in. Cast Copper Silicon Alloy FPT Reduced Pressure Zone Assembly with Quarter Turn Shutoff Valves, Strainer and Flood Sensor
Manufacturer Part #88004083
Watts

Series LF009 1-1/4 in. Cast Bronze FNPT Backflow Preventer

  • Fast #
  • Part #WLF009M2QTSH
  • Item #4321388
  • Manufacturer Part #0122688
5 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
    Pick Up  Not Available
    Not available in OH
  • Shipping Not Available
    Not available at this time
    Shipping Not Available
    Not available in OH

Product Details

Product Details

  • Single access cover and modular check construction for ease of maintenance
  • Top entry - all internals immediately accessible
  • Captured springs for safe maintenance
  • Internal relief valve for reduced installation clearances
  • Replaceable seats for economical repair
  • Large body passages provides low pressure drop
  • Compact, space saving design
  • No special tools required for servicing
  • Lead-Free
  • Requires Certification

  • Lead Law Compliant

Specifications

ANSI:
ANSI 61 Annex G
ASSE Standards:
ASSE 1013
AWWA:
AWWA C-511
CSA Certified:
CSA B64.4
Collection:
Series LF009
End Connection 1:
FNPT
End Connection 2:
FNPT
End Connections:
FNPT
FM Approved:
No
IAPMO Listed:
Yes
Lead Law Compliance Level:
Lead Law Compliant and Certified
Lead Law Compliant:
Yes
Material:
Cast Bronze
NSF:
NSF 61 Annex G
NSF Certified:
Yes
Number of Handles:
Two Handle
Pressure - High:
175
Proposition 65:
WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Temperature Range:
33 to 180 Deg F (0.5 to 82 Deg C)
UL Listed:
Yes
UPC:
098268643046
Valve Body Style:
Inline
Valve Disc Material:
Rubber, Silicone
Valve Operator:
Quarter Turn Handle
Valve Port Opening:
Full Port
Valve Seat Material:
Polymer
Valve Size:
1-1/4 in
Valve Type:
Reduced Pressure Zone Assembly
Weight:
15
