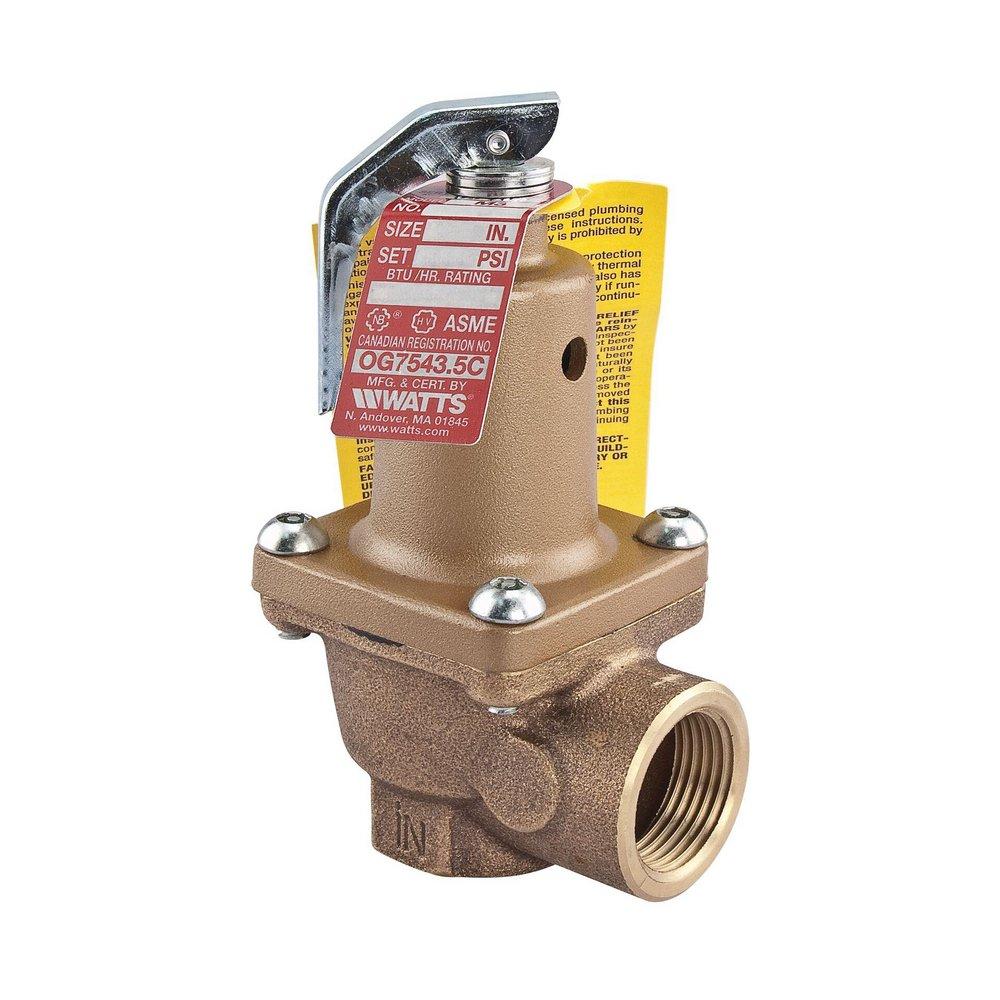

3/4 in. Cast Copper Silicon Alloy FNPT 80# 250 Relief Valve
This product has been replaced by
Watts 3/4 in lf174a lead free boiler pressure relief valve 80 psi discharge line flood sensor included
Manufacturer Part #F121471
Manufacturer Part #F121471
Watts
Series LF174A 3/4 in. Cast Copper Silicon Alloy FNPT 80# 250 Relief Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 25
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
Pick Up Not AvailableNot available in FL
-
Shipping Not AvailableNot available at this timeShipping Not AvailableNot available in FL
Purchase history
Watts
Series LF174A
3/4 in. Cast Copper Silicon Alloy FNPT 80# 250 Relief Valve
0121471
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Compatible with ANSI 125# & 150# flanges
- Full port
- Minimal pressure drop
- Light weight
- Spring assisted closing for quicker response
- FDA food grade epoxy
-
Lead Law Compliant
Specifications
- ASME:
- ASME Section IV
- Application:
- Hot Water Boilers
- BAA Compliant:
- Yes
- Collection:
- Series LF174A
- End Connection 1:
- FNPT
- End Connection 2:
- FNPT
- End Connections:
- FNPT
- Height:
- 4-1/2
- ISO:
- ISO 9001-2008
- Lead Law Compliance Level:
- Lead Law Compliant and Certified
- Lead Law Compliant:
- Yes
- Length:
- 2-3/4
- Material:
- Cast Copper Silicon Alloy, Metal, Non-Metallic
- Maximum Temperature:
- 250
- Pressure - Maximum:
- 150 psi
- Pressure Class:
- 80#
- Proposition 65:
- WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Recommended Valve Application:
- Water
- UPC:
- 098268585612
- Valve Body Material:
- Cast Copper Silicon Alloy
- Valve Disc Material:
- Non Metallic
- Valve Operator:
- Lever Handle
- Valve Seat Material:
- Metal
- Valve Size:
- 3/4 in
- Valve Type:
- Pressure Relief Valve
- Weight:
- 1.2
- Width:
- 2
