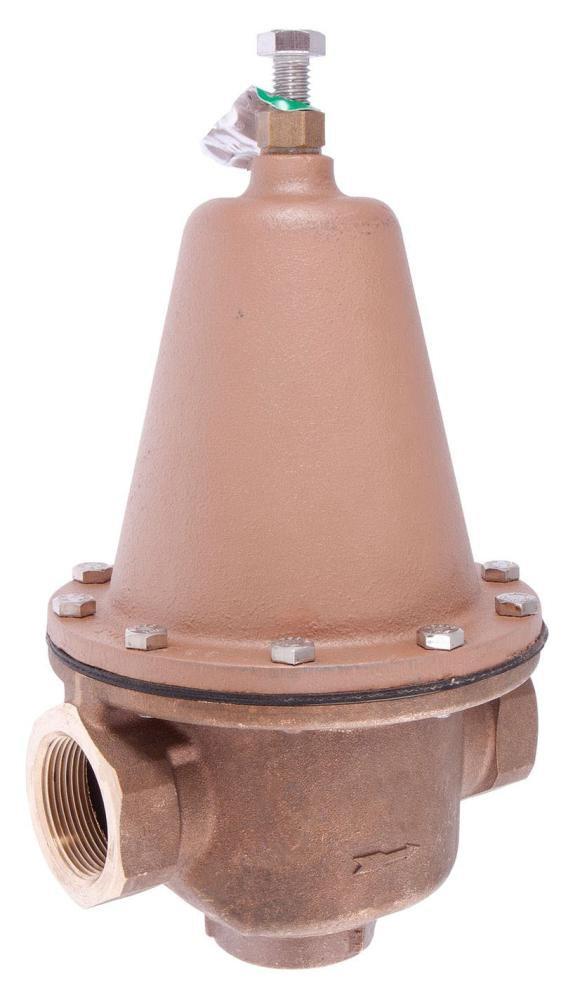

2 in. Brass FNPT Pressure Reducing Valve
Series LF223 2 in. Brass FNPT Pressure Reducing Valve
Frequently Purchased Together
Product Details
- Serviceable in line
- Sealed spring cage on all models for accessible outdoor or pit installations
- Enlarged diaphragm, spring cage and seat orifice for super capacity performance
- Lead-Free
- Sensitive spring and large diaphragm for accurate pressure control
-
Lead Law Compliant
Specifications
- ANSI:
- ANSI A112.26
- ASSE Standards:
- ASSE 1003
- BAA Compliant:
- Yes
- CSA Certified:
- CSA B356
- Collection:
- Series LF223
- End Connection 1:
- FNPT
- End Connection 2:
- FNPT
- End Connections:
- FNPT
- FM Approved:
- No
- Height:
- 14-1/8 in
- IAPMO Listed -:
- Yes
- ISO:
- ISO 9001:2008
- Lead Law Compliance Level:
- Lead Law Compliant and Certified
- Lead Law Compliant:
- Yes
- Length:
- 8 in
- Maximum Temperature:
- 160
- NSF:
- NSF 61G
- NSF Certified:
- Yes
- Pressure - High:
- 300
- Recommended Valve Application:
- Water
- Temperature Range:
- 33 to 160 Deg F (0.5 to 71 Deg C)
- UL Listed:
- No
- Valve Body Material:
- Cast Copper Silicon Alloy
- Valve Body Style:
- Standard
- Valve Disc Material:
- EPDM
- Valve Port Opening:
- Standard Port
- Valve Seat Material:
- Stainless Steel
- Valve Size:
- 2 in
- Valve Type:
- Pressure Reducing Valve
- Weight:
- 30 lb
