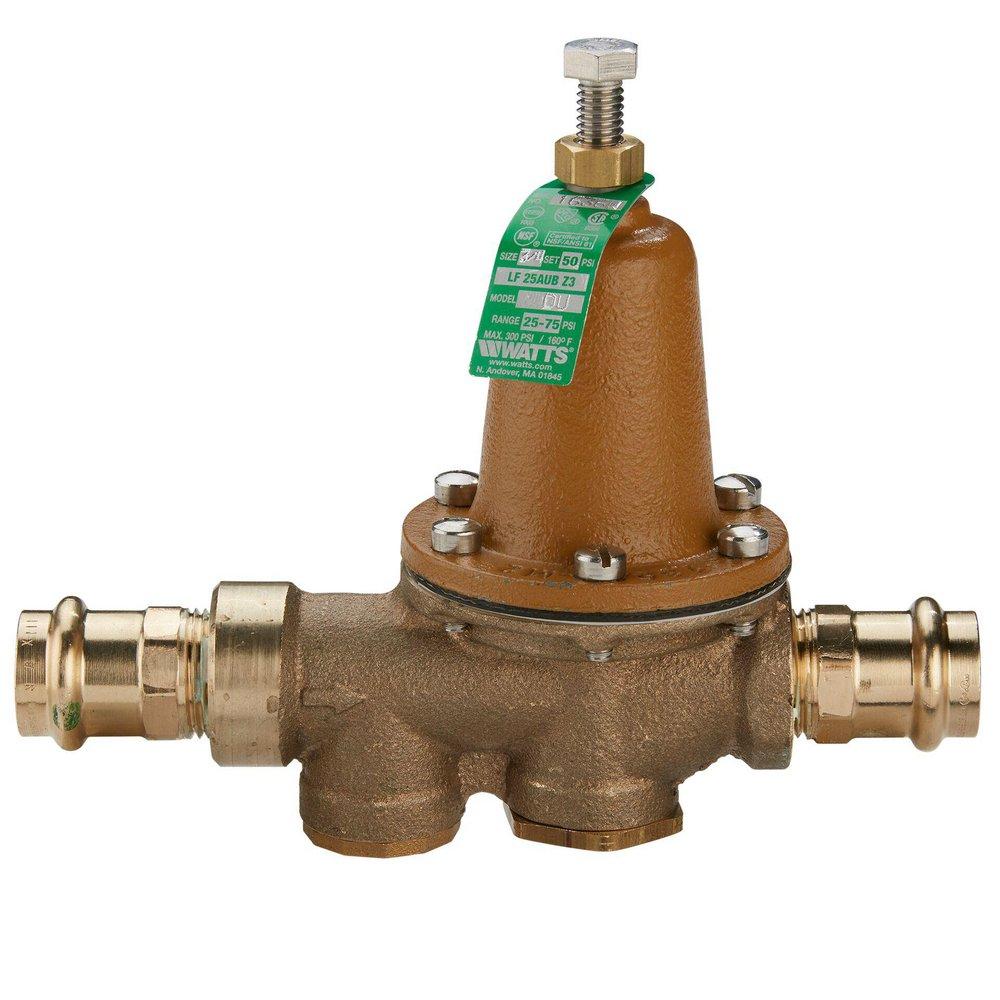

1-1/2 in. 300 psi Copper Silicon Alloy Union Press Pressure Reducing Valve
Series LF25AUB-Z3 1-1/2 in. 300 psi Copper Silicon Alloy Union Press Pressure Reducing Valve
-
Pick Up: Not available
-
Shipping: Available for immediate shipment
Frequently Purchased Together
Product Details
- Viega ProPress® connections
- Sealed spring cage with stainless steel cage screws
- Integral stainless steel strainer removable for cleaning
- Replaceable seat module
- High temperature resistant reinforced diaphragm for hot water
- Double union press connections
- Standard construction includes Z3 sealed spring cage and stainless steel corrosion resistant adjusting & cage screws
- Lead free cast copper silicon alloy construction
- Serviceable in line
- Bypass feature controls thermal expansion pressure
Specifications
- ADA Compliant:
- No
- ANSI:
- ANSI 61 Annex G, ANSI A112.26.2
- ASSE Standards:
- ASSE 1003
- Application:
- Residential, Commercial
- BAA Compliant:
- Yes
- CSA Certified:
- Yes
- Coating:
- Corrosion Resistant
- Collection:
- Series LF25AUB-Z3
- Depth:
- 8-1/2 in
- End Connection 1:
- Union
- End Connection 2:
- Press
- End Connections:
- Union x Press
- FM Approved:
- No
- Height:
- 9-1/2 in
- IAPMO Listed -:
- Yes
- Lead Law Compliance Level:
- Applicable to Lead Leaching, Not Compliant
- Material:
- Cast Copper Silicon Alloy, Rubber, Stainless Steel
- Material Type:
- EPDM
- Maximum Temperature:
- 180
- Minimum Temperature:
- 33
- NSF:
- NSF 61 Annex G
- NSF Certified:
- Yes
- Pressure - High:
- 300
- Pressure - Maximum:
- 300 psi
- Product Type:
- Standard
- Recommended Valve Application:
- Commercial, Residential, Plumbing, Water
- Temperature Range:
- 33 to 180 Deg F (0.5 to 82 Deg C)
- UL Listed:
- No
- Valve Body Material:
- Cast Copper Silicon Alloy
- Valve Body Style:
- Standard
- Valve Disc Material:
- EPDM
- Valve Seat Material:
- Stainless Steel
- Valve Size:
- 1-1/2 in
- Valve Type:
- Pressure Reducing Valve
- Weight:
- 10 lb
- Width:
- 4-1/2 in
