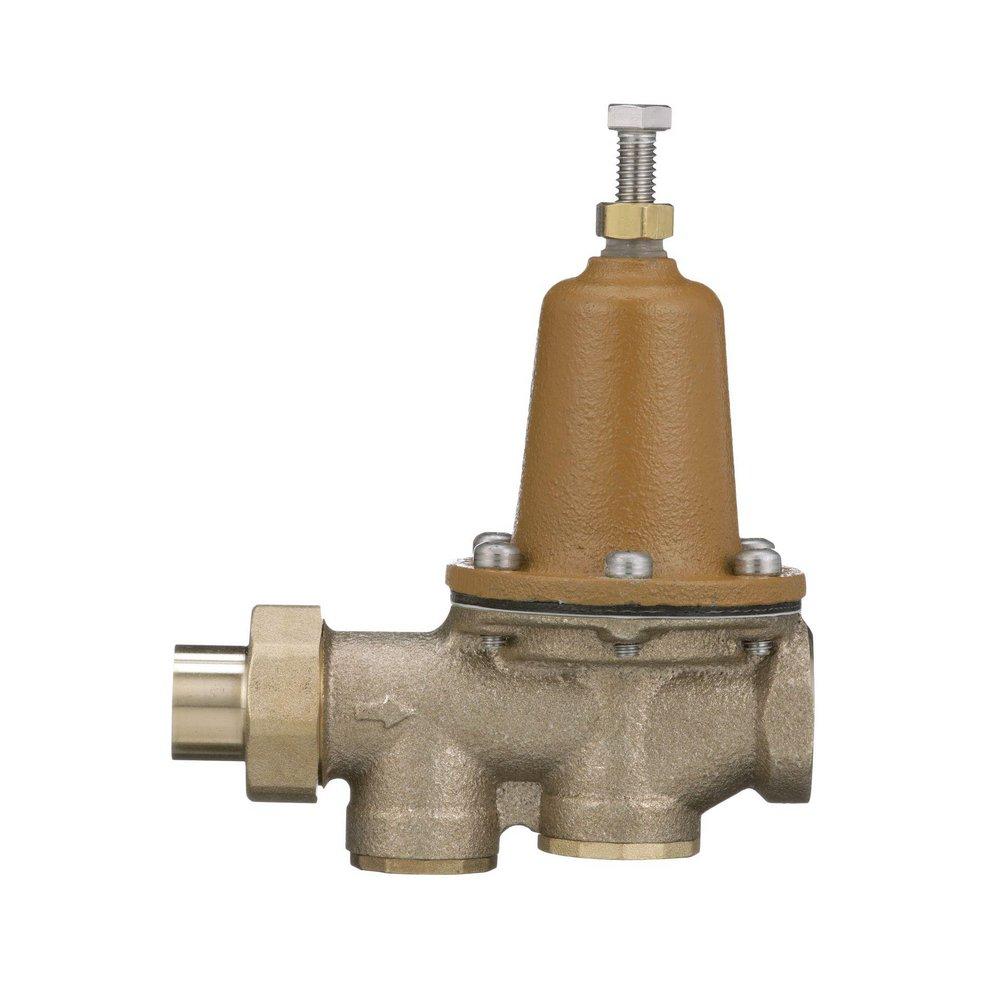

3/4 in. 300 psi Cast Copper Silicon Alloy Socket x FNPT Pressure Reducing Valve

Watts

Series LF25AUB-Z3 3/4 in. 300 psi Cast Copper Silicon Alloy Socket x FNPT Pressure Reducing Valve

  • Fast #
  • Part #WLF25AUBSZ3F
  • Item #3920073
  • Manufacturer Part #0009282
3.1 out of 5 Customer Rating
Brand image
Watts 300 psi Cast Copper Silicon Alloy Solder Union x FNPT Pressure Reducing Valve
Watts 300 psi Cast Copper Silicon Alloy Solder Union x FNPT Pressure Reducing Valve
Watts

Series LF25AUB-Z3 3/4 in. 300 psi Cast Copper Silicon Alloy Socket x FNPT Pressure Reducing Valve

  • Fast #
  • Part #WLF25AUBSZ3F
  • Item #3920073
  • Manufacturer Part #0009282
3.1 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1 Case: 6 Pallet: 672
Quantity:
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Available
    Available for immediate shipment

Product Details

Product Description
  • Solder union inlet
  • Sealed spring cage with stainless steel cage screws
  • Integral stainless steel strainer removable for cleaning
  • Replaceable seat module
  • Suitable for up to 300 PSI
  • Pressure range can be adjusted from 25 to 75 PSI
  • Temperature range is 33 to 160 degrees F
  • Designed to reduce incoming water pressure to protect plumbing systems
  • Designed to reduce water consumption for commercial, industrial and residential applications
Product Information
  • Requires Certification

  • Lead Law Compliant

Dimensions & Measurements
End Connection 1
Socket Weld
End Connection 2
FPT
End Connections
Socket Weld x FPT
Height
3 in
Length
6-7/8 in
Pressure - Maximum
300 psi
Valve Size
3/4 in
Weight
3.5 lb
Width
6-11/25 in
Characteristics & Features
Collection
Series LF25AUB-Z3
Material
Copper Silicon Alloy
Proposition 65
WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Valve Body Material
Copper Silicon Alloy
Valve Body Style
Standard
Valve Disc Material
EPDM
Valve Port Opening
Standard Port
Valve Seat Material
Stainless Steel
Valve Type
Pressure Reducing Valve
Electrical & Operational Information
Maximum Temperature
160
Warranty & Product Information
ANSI
ANSI A112.26.2
ASSE Standards
ASSE 1003
CSA Certified
Yes
IAPMO Listed
Yes
ISO
ISO 9001-2008
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
NSF Certified
No
Recommended Valve Application
Water
UPC
098268330083
