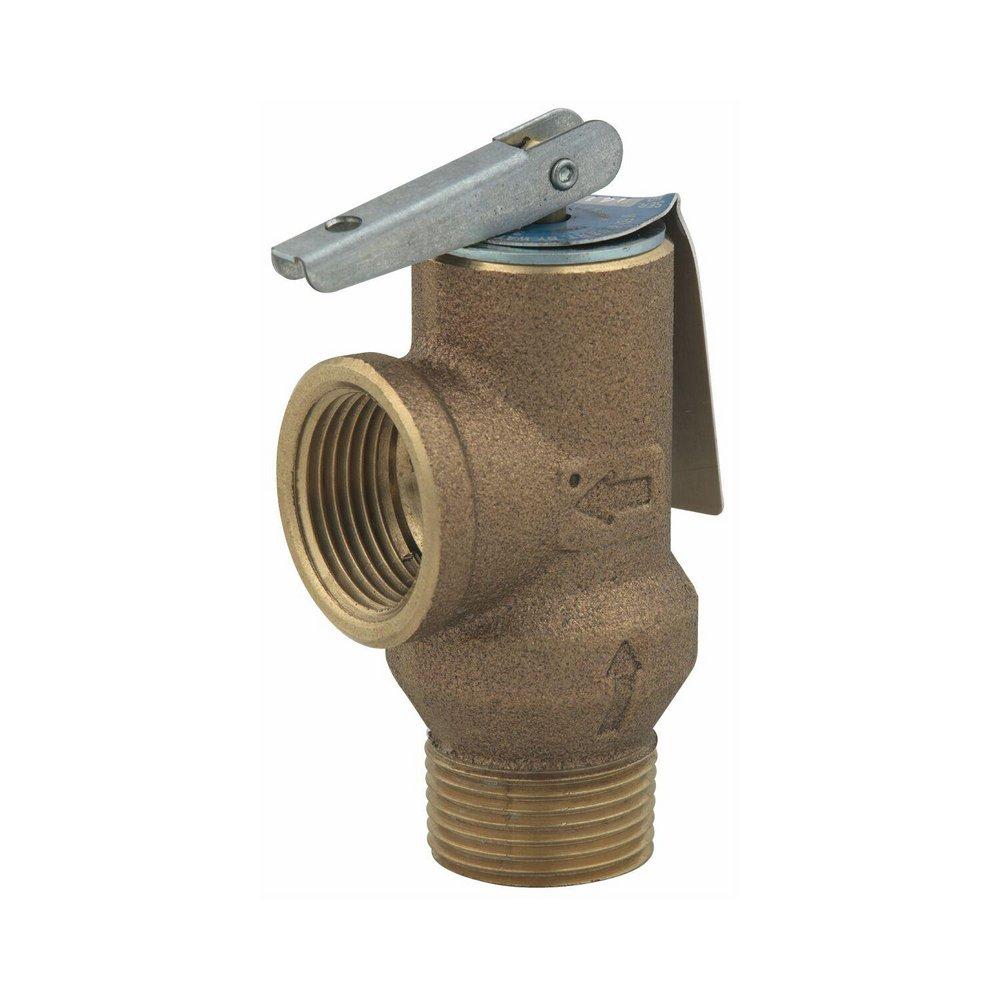

3/4 in. Copper Alloy and Silicone Male Threaded x Female Threaded 150# 210F Pressure Relief Valve
Watts
Series LF3L 3/4 in. Copper Alloy and Silicone Male Threaded x Female Threaded 150# 210F Pressure Relief Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 50Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Watts
Series LF3L
3/4 in. Copper Alloy and Silicone Male Threaded x Female Threaded 150# 210F Pressure Relief Valve
0011917
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Brass body construction
- Pressure relief is set at 150 PSI (10.3 BAR)
- Test lever included
- ASME rated and CSA certified
Dimensions & Measurements
End Connection 1
Male Threaded
End Connection 2
Female Threaded
End Connections
Male Threaded x Female Threaded
Height
3-11/64 in
Pressure Class
150#
Pressure - Maximum
113 psi
Valve Size
3/4 in
Weight
0.4 lb
Width
1-5/32 in
Characteristics & Features
Collection
Series LF3L
Material
Copper Alloy, Silicone, Stainless Steel
Proposition 65
WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Valve Disc Material
Silicone
Valve Operator
Lever Handle
Valve Type
Pressure Relief Valve
Electrical & Operational Information
Maximum Temperature
210
Warranty & Product Information
ANSI
ANSI 372, ANSI Z21.22
Application
Water Heaters
ASME
ASME Section IV
CSA Certified
CSA 4.4
FM Approved
No
IAPMO Listed
No
ISO
ISO 9001
Lead Law Compliance Level
Applicable to Lead Leaching, Not Compliant
NSF
NSF 372
NSF Certified
Yes
Recommended Valve Application
Water
UL Listed
No
UPC
098268001563
