1-1/4 in. Bronze Reduced Pressure Zone Backflow Preventer Assembly

Watts

Series LF909 1-1/4 in. Bronze Reduced Pressure Zone Backflow Preventer Assembly

  • Fast #
  • Part #WLF909HWM1QTH
  • Item #3920265
  • Manufacturer Part #0792033
3.4 out of 5 Customer Rating
Brand image

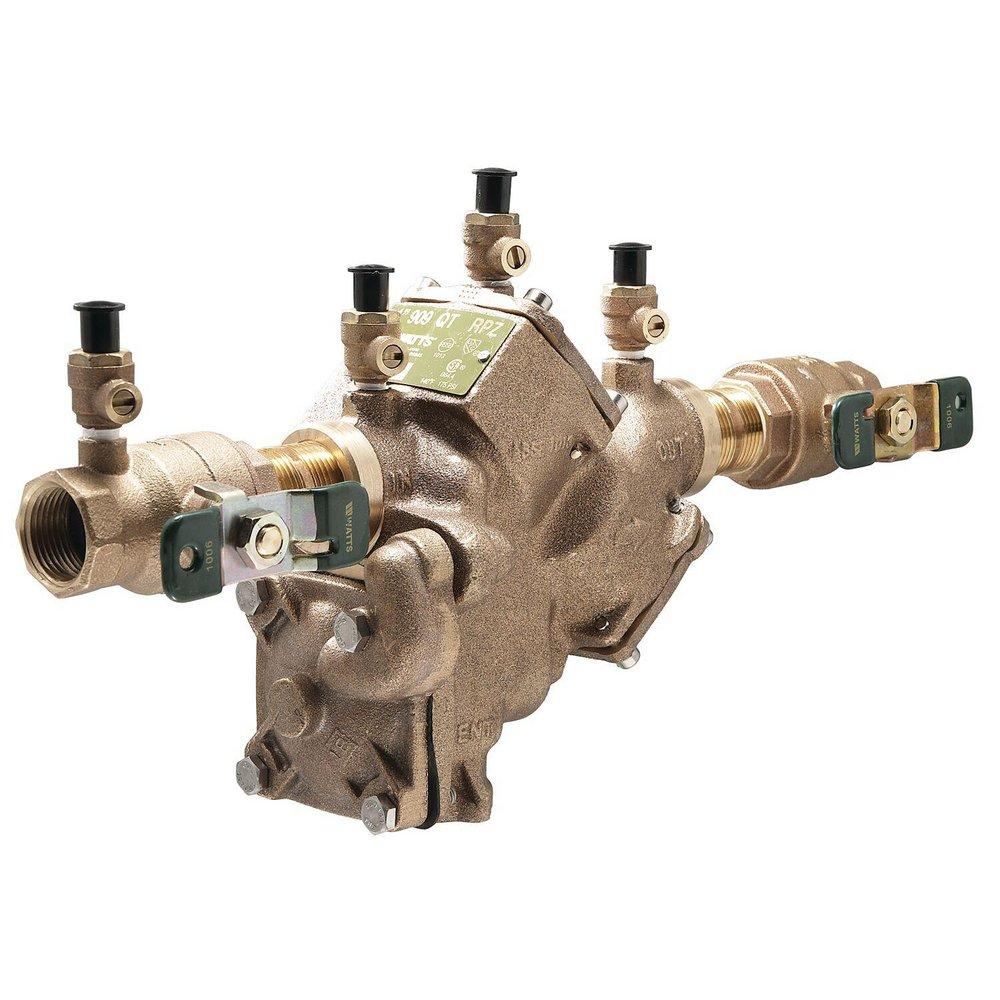

Watts Bronze Cast Copper Silicon Alloy FNPT Backflow Preventer
Watts Bronze Cast Copper Silicon Alloy FNPT Backflow Preventer
Watts

Series LF909 1-1/4 in. Bronze Reduced Pressure Zone Backflow Preventer Assembly

  • Fast #
  • Part #WLF909HWM1QTH
  • Item #3920265
  • Manufacturer Part #0792033
3.4 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • Lead free bronze body construction
  • Unique patented air-in and water-out design provides high capacity relief valve discharge performance during emergency conditions
  • Compact for easy installation
  • Quarter turn ball valves with lever handles
  • Single access cover
  • Horizontal or vertical (up or down) installation
  • Top mounted test cocks
  • No special tools are required for servicing
  • Replaceable seats
  • Requires Certification

  • Lead Law Compliant

Specifications

ANSI:
ANSI 372, ANSI 61-G
ASSE Standards:
ASSE 1013
AWWA:
AWWA C-511 1992
CSA Certified:
CSA B64.4
Collection:
Series LF909
End Connection 1:
FPT
End Connection 2:
FPT
End Connections:
FPT
FM Approved:
No
Height:
7-1/4 in
IAPMO Listed:
Yes
Included:
Quarter-Turn Ball Valve(s)
Installation Type:
Horizontal, Vertical
Lead Law Compliance Level:
Lead Law Compliant and Certified
Lead Law Compliant:
Yes
Length:
23-7/16 in
Material:
Cast Copper Silicon Alloy
NSF:
NSF 372, NSF 61-G
NSF Certified:
Yes
Pressure - High:
175
Pressure - Maximum:
175 psi
Proposition 65:
WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Recommended Valve Application:
Health Hazard, Potable Water
Temperature Range:
33 to 140 Deg F (0.5 to 60 Deg C)
UL Listed:
No
UPC:
098268434163
Valve Body Material:
Cast Copper Silicon Alloy
Valve Body Style:
Inline
Valve Disc Material:
Silicone
Valve Port Opening:
Full Port
Valve Seat Material:
Stainless Steel
Valve Size:
1-1/4 in
Valve Type:
Reduced Pressure Zone Assembly
Weight:
40 lb
Width:
13-1/2 in
