6 in. Cast Iron Flanged Reduced Pressure Zone Assembly

Watts

Series LF909-FS 6 in. Cast Iron Flanged Reduced Pressure Zone Assembly

  • Fast #
  • Part #WLF909OSYSFDAFS6U
  • Item #9776589
  • Manufacturer Part #88009359
3.8 out of 5 Customer Rating
Brand image

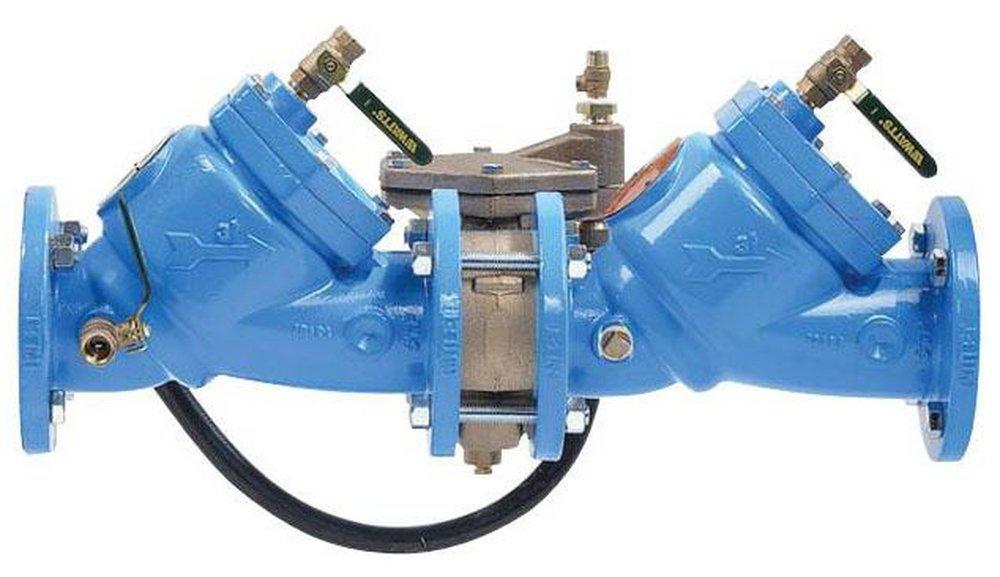

*CVR* 6 IN CAST IRON REDUCED PRESSURE ZONE BACKFLOW PREVENTER ASSEMBLY OSY SHUTOFF VALVES FDA EPOXY COATED STRAINER ARMORTEK COATING BACKFLOW FLOOD SENSOR
*CVR* 6 IN CAST IRON REDUCED PRESSURE ZONE BACKFLOW PREVENTER ASSEMBLY OSY SHUTOFF VALVES FDA EPOXY COATED STRAINER ARMORTEK COATING BACKFLOW FLOOD SENSOR
Watts

Series LF909-FS 6 in. Cast Iron Flanged Reduced Pressure Zone Assembly

  • Fast #
  • Part #WLF909OSYSFDAFS6U
  • Item #9776589
  • Manufacturer Part #88009359
3.8 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • Replaceable seats
  • Stainless steel internal parts
  • No special tools required for servicing
  • Captured spring check assemblies
  • Fused epoxy coated & lined checks
  • Industrial strength sensing hose
  • Field reversible relief valve
  • Air-in/water-out relief valve design provides maximum capacity during emergency conditions
  • Lead free
  • Unique patented air-in and water-out design provides high capacity relief valve discharge performance during emergency conditions
  • Requires Certification

  • Lead Law Compliant

Specifications

ANSI:
ANSI 61-G
ASSE Standards:
ASSE 1013
AWWA:
AWWA C-511-92
CSA Certified:
CSA B64.4, CSA B64.5
Coating:
Epoxy
Collection:
Series LF909-FS
End Connection 1:
Flanged
End Connection 2:
Flanged
End Connections:
Flanged
FM Approved:
Yes
IAPMO Listed:
Yes
Included:
Flood Sensor, OS and Y Gate, Strainer
Installation Type:
Horizontal, Vertical
Lead Law Compliance Level:
Lead Law Compliant and Certified
Lead Law Compliant:
Yes
Length:
84-5/16 in
Material:
Cast Iron, Stainless Steel
Minimum Temperature:
33
NSF:
NSF 61-G
NSF Certified:
Yes
Number of Handles:
Two Handle
Pressure - High:
175
Pressure - Maximum:
175 psi
Recommended Valve Application:
Potable Water, Plumbing
Temperature Range:
33 to 110 Deg F (0.5 to 43 Deg C)
UL Listed:
Yes
UPC:
098268293234
Valve Body Material:
Cast Iron
Valve Body Style:
Inline
Valve Operator:
Wheel Handle
Valve Seat Material:
Stainless Steel
Valve Size:
6 in
Valve Stem:
Outside
Valve Type:
Reduced Pressure Zone Assembly
Weight:
798 lb
