3/4 in. Forged Copper Silicon Alloy Full Port Solder 600# and 150# Ball Valve

Watts

Series LFFBV-3C 3/4 in. Forged Copper Silicon Alloy Full Port Solder 600# and 150# Ball Valve

  • Fast #
  • Part #W88005701
  • Item #7939874
  • Manufacturer Part #88005701
5 out of 5 Customer Rating
Brand image

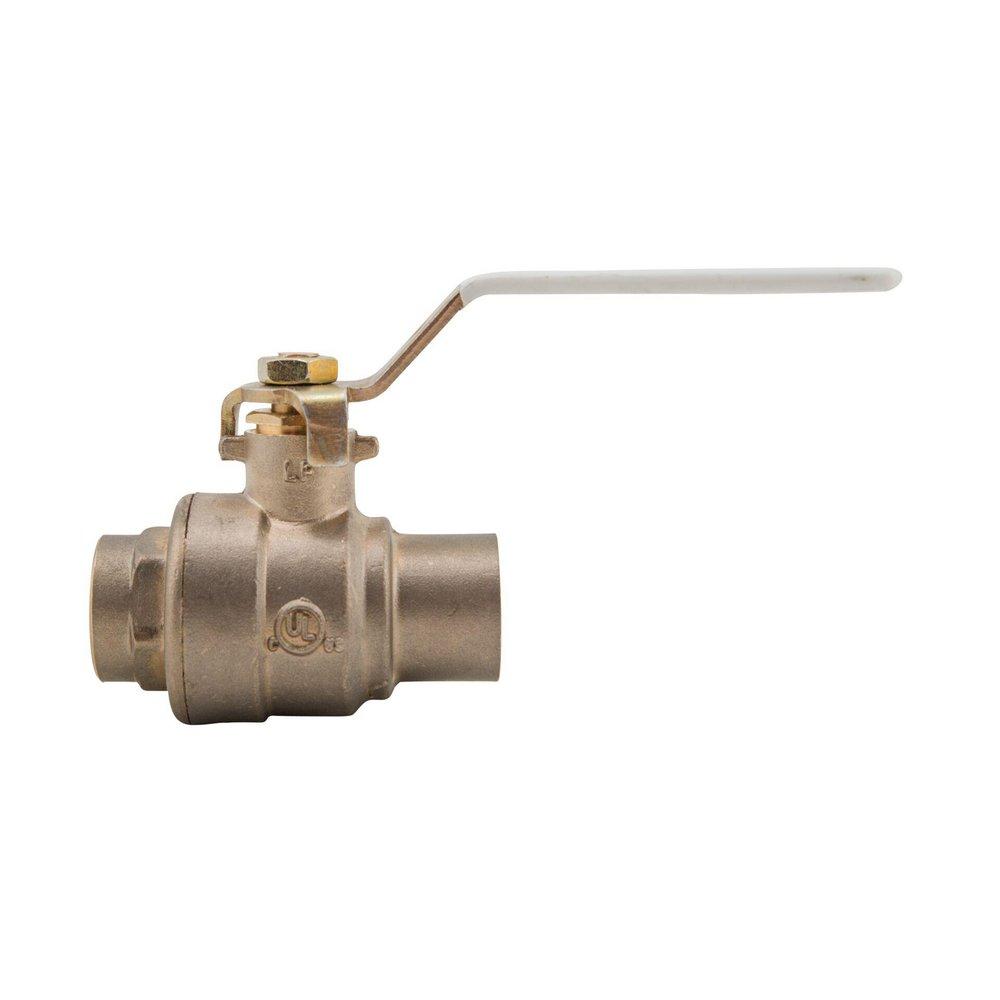

Watts Brass Forged Copper Silicon Alloy Full Port Solder Ball Valve
Watts Brass Forged Copper Silicon Alloy Full Port Solder Ball Valve
Watts

Series LFFBV-3C 3/4 in. Forged Copper Silicon Alloy Full Port Solder 600# and 150# Ball Valve

  • Fast #
  • Part #W88005701
  • Item #7939874
  • Manufacturer Part #88005701
5 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1 Case: 60
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Available
    Available for immediate shipment

Product Details

Product Details

  • Lead free construction
  • Full port
  • Solder end connection
  • NSF approved
  • Adjustable stem packing gland for easy maintenance
  • PTFE stem packing seal, thrust washer, and seats for reliable performance
  • Bottom loaded blowout proof stem
  • Valves comply to manufacturing standard MSS-SP-110
  • Requires Certification

  • Lead Law Compliant

Specifications

ANSI:
ANSI 61, ANSI 8
Clean Bagged:
No
Collection:
Series LFFBV-3C
End Connection 1:
Socket Weld
End Connection 2:
Socket Weld
End Connections:
Socket Weld
FM Approved:
Yes
Fire Suppression System Rated:
No
Handle Material:
Zinc Plated Carbon Steel
Height:
2-1/2 in
IAPMO Listed:
No
Lead Law Compliance Level:
Lead Law Compliant and Certified
Lead Law Compliant:
Yes
Length:
2-1/2 in
MA Approved:
No
MSS:
MSS SP-110
Material:
Brass
Maximum Temperature:
400
Minimum Temperature:
-40
NSF:
NSF 61, NSF 8
NSF Certified:
Yes
Origin:
Domestic
Pressure - Maximum:
600 psi
Pressure Class:
600#
Recommended Valve Application:
Cold Water, Gas, Oil, Potable Water
Temperature Range:
0 to 400 Deg F (-18 to 204 Deg C)
UL Listed:
Yes
UPC:
098268163940
Valve Body Style:
2 piece
Valve Operator:
Lever Handle
Valve Port Opening:
Full Port
Valve Seat Material:
Virgin PTFE
Valve Size:
3/4 in
Valve Stem:
Bottom-loaded/Blowout-proof
Valve Type:
Ball Valve
Weight:
0.8 lb
Width:
1-14/25 in
cUPC Certified:
No
