3 in. Forged Copper Silicon Alloy Full Port Solder 600# Ball Valve

Watts

Series LFFBVS-4 3 in. Forged Copper Silicon Alloy Full Port Solder 600# Ball Valve

  • Fast #
  • Part #WLFFBVS4M
  • Item #4631713
  • Manufacturer Part #0555135
4.2 out of 5 Customer Rating
Brand image

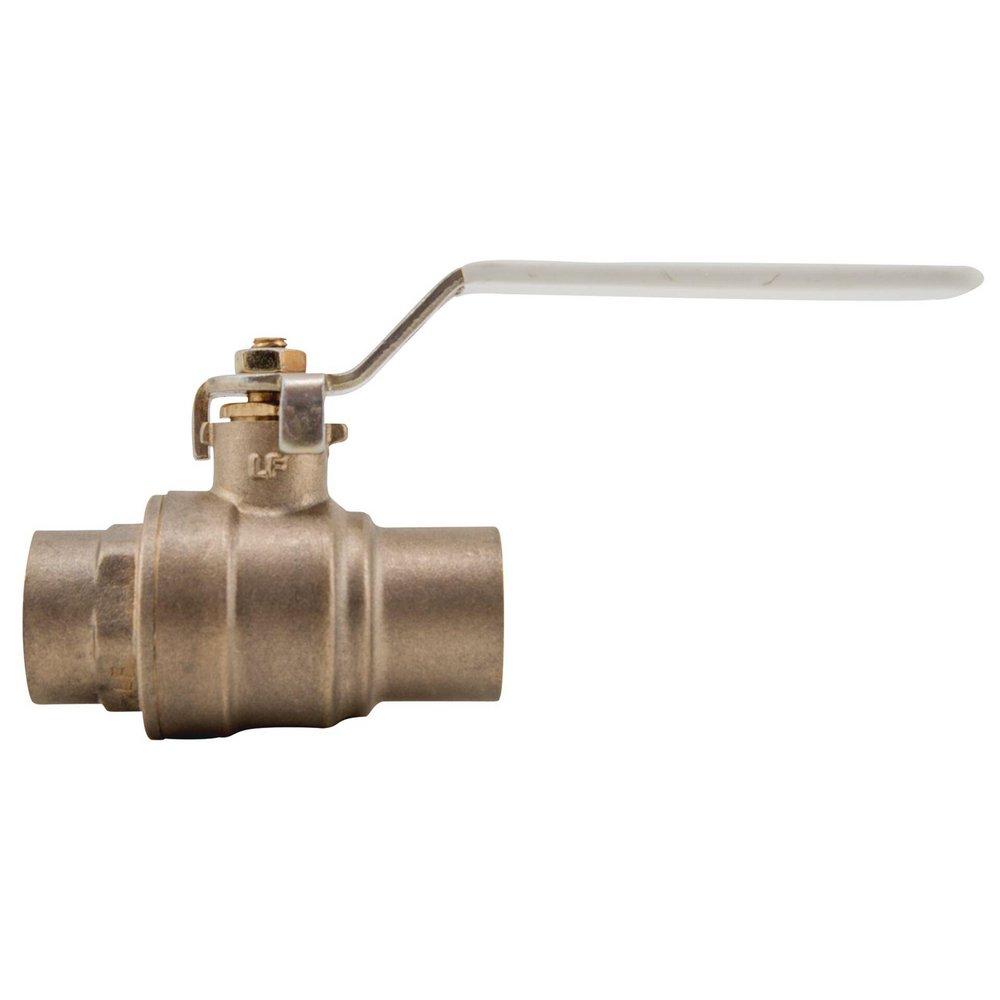

Watts Brass Forged Copper Silicon Alloy Full Port Solder 600# Ball Valve
Watts Brass Forged Copper Silicon Alloy Full Port Solder 600# Ball Valve
Watts

Series LFFBVS-4 3 in. Forged Copper Silicon Alloy Full Port Solder 600# Ball Valve

  • Fast #
  • Part #WLFFBVS4M
  • Item #4631713
  • Manufacturer Part #0555135
4.2 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1 Case: 5
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Indianapolis, IN
    0 nearby
    Pick Up  Not Available
    Not available in IN
  • Shipping Not Available
    Not available at this time
    Shipping Not Available
    Not available in IN

Product Details

Product Details

  • Lead free construction
  • Full port
  • Solder end connections
  • NSF approved
  • Fluorocarbon elastomer stem O-ring prevents stem leaks
  • Adjustable stem packing gland provides longer service life
  • PTFE stem packing seal and seats
  • Machined chrome-plated Lead Free brass ball
  • Complies with MSS-SP-110
  • Requires Certification

  • Lead Law Compliant

Specifications

ANSI:
ANSI 61-8, ANSI 61-G
BAA Compliant:
No
Clean Bagged:
No
Collection:
Series LFFBVS-4
End Connection 1:
Solder
End Connection 2:
Solder
End Connections:
Solder
FM Approved:
No
Fire Suppression System Rated:
No
Handle Material:
Zinc Plated Carbon Steel
Height:
11-9/25
IAPMO Listed:
No
Lead Law Compliance Level:
Lead Law Compliant and Certified
Lead Law Compliant:
Yes
Length:
7-1/4
MA Approved:
No
MSS:
MSS SP-110
Material:
Forged Copper Silicon Alloy
NSF:
NSF 61 Annex G, NSF 61-8
NSF Certified:
Yes
Origin:
Global
Pressure Class:
600#
Proposition 65:
WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Recommended Valve Application:
Cold Water, Gas, Liquid, Oil
Temperature Range:
-40 to 400 Deg F (-40 to 204 Deg C)
UL Listed:
No
UPC:
098268806182
Valve Body Style:
2 piece
Valve Operator:
Lever Handle
Valve Port Opening:
Full Port
Valve Seat Material:
Virgin PTFE
Valve Size:
3 in
Valve Stem:
Bottom-loaded/Blowout-proof
Valve Type:
Ball Valve
Weight:
11
Width:
7-1/100
cUPC Certified:
No
