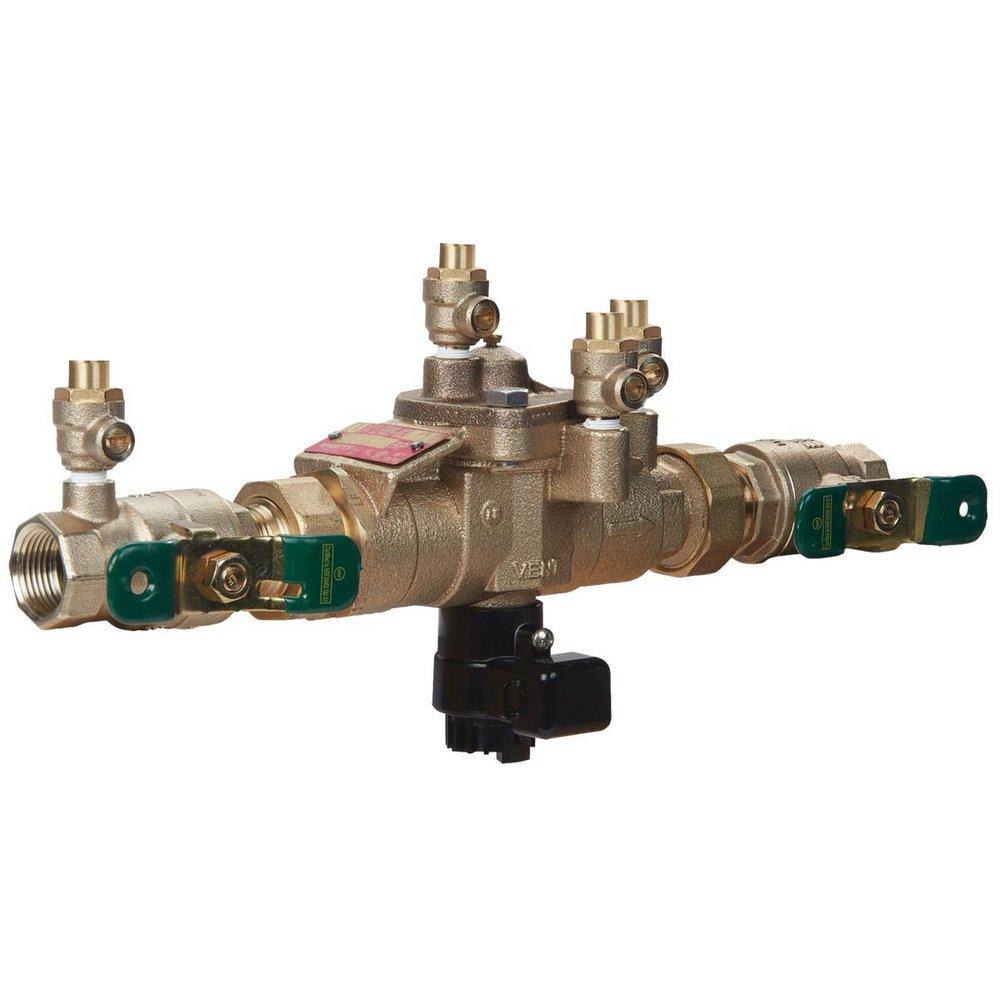

3/4 in Cast Copper Silicon Alloy Union Reduced Pressure Zone Assembly with Flood Sensor and Quarter-Turn Ball Valves

Watts

Series LFU009 3/4 in Cast Copper Silicon Alloy Union Reduced Pressure Zone Assembly with Flood Sensor and Quarter-Turn Ball Valves

  • Fast #
  • Part #WLFU009M2QTFS34
  • Item #9894510
  • Manufacturer Part #88004081
3.3 out of 5 Customer Rating
Brand image
3/4 IN LEAD FREE REDUCED PRESSURE ZONE BACKFLOW PREVENTER ASSEMBLY QUARTER TURN SHUTOFF VALVES UNION BACKFLOW FLOOD SENSOR
Watts

Series LFU009 3/4 in Cast Copper Silicon Alloy Union Reduced Pressure Zone Assembly with Flood Sensor and Quarter-Turn Ball Valves

  • Fast #
  • Part #WLFU009M2QTFS34
  • Item #9894510
  • Manufacturer Part #88004081
3.3 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Looking for compatible parts?
Out of Stock
  • Pick Up: Not available
  • Shipping: Not available

Frequently Purchased Together

Product Details

Product Details

  • Features an integrated flood sensor with Sentry Plus Alert technology to detect excessive water discharges from the relief valve
  • Alert features available with add-on sensor connection kit
  • Lead free bronze body construction for durability
  • Unique swivel union inlet and outlet connections
  • Quarter turn full port resilient seated ball valve shutoffs
  • Single access cover and modular check construction for the ease of maintenance
  • Internal relief valve for reduced installation clearances
  • Sensor on the relief valve for flood detection
  • No special tools required for servicing
  • Compact, space saving design
  • Requires Certification

Specifications

ASSE Standards:
ASSE 1013
AWWA:
AWWA C-510 1992
BAA Compliant:
Yes
CSA Certified:
CSA B64.4
Coating:
Polymer
Collection:
Series LFU009
End Connection 1:
Union
End Connection 2:
Union
End Connections:
Union
Height:
7 in
Included:
Flood Sensor, Quarter-Turn Ball Valve(s)
Lead Law Compliance Level:
Applicable to Lead Leaching, Not Compliant
Material:
Copper Silicon Alloy
Pressure - High:
175
Pressure - Maximum:
175 psi
Proposition 65:
CALIFORNIA PROP 65 WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Recommended Valve Application:
Potable Water
Temperature Range:
33 to 180 Deg F (0.5 to 82 Deg C)
UL Listed:
Yes
Valve Body Material:
Cast Copper Silicon Alloy
Valve Body Style:
Inline
Valve Disc Material:
Silicone
Valve Seat Material:
Engineered Plastic
Valve Size:
3/4 in
Valve Type:
Reduced Pressure Zone Assembly
Weight:
6 lb
Width:
10 in
