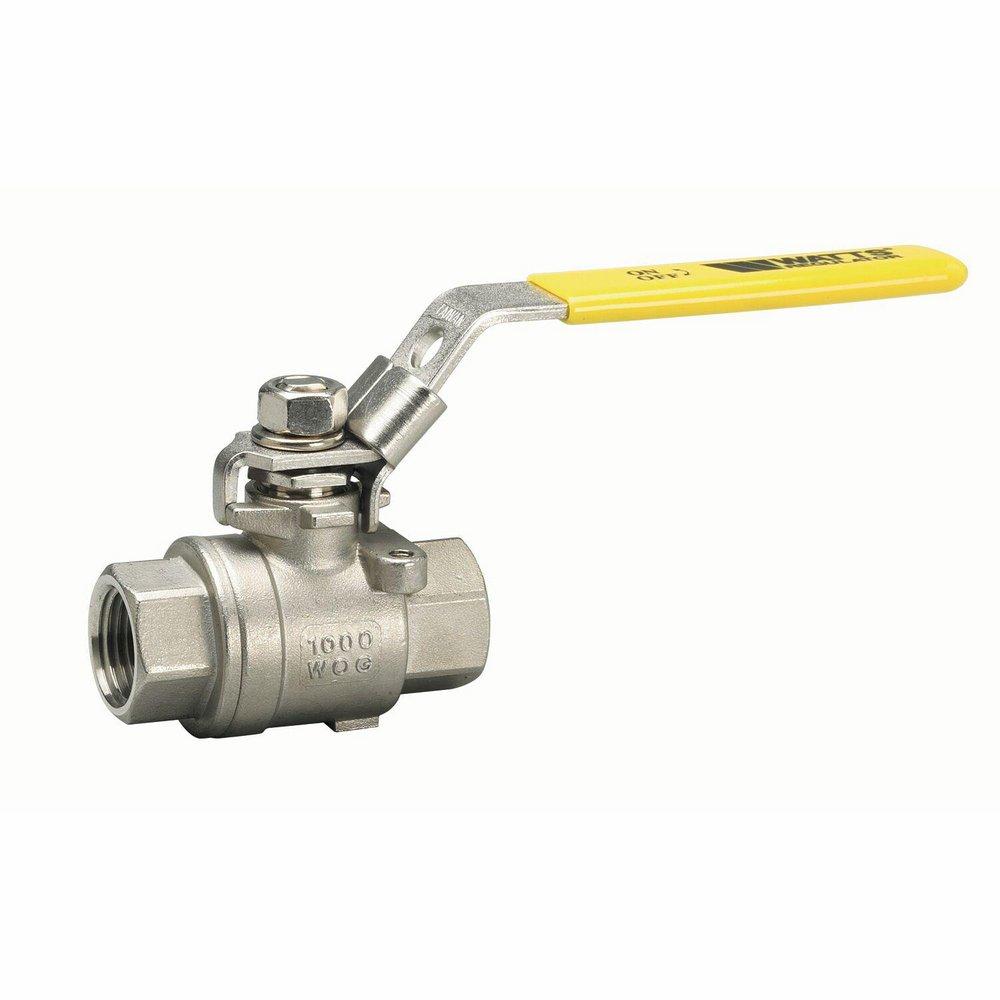

3/4 in. 316 Stainless Steel Full Port Threaded 1000# Ball Valve
You last purchased this on
Watts
Series S-FBV-1 3/4 in. 316 Stainless Steel Full Port Threaded 1000# Ball Valve
Purchase history
Watts
Series S-FBV-1
3/4 in. 316 Stainless Steel Full Port Threaded 1000# Ball Valve
0548013
Order #
Order Date
Job Name
My PO#
Frequently Purchased Together
Product Details
Product Details
- Two-piece stainless steel body construction
- Full port for minimal pressure drop
- Drilled and tapped mounting pads
- Vinyl insulated standard Latch-Lok handle to lock open or closed
- Reinforced PTFE seats and seals
- Adjustable packing gland
- Bottom loaded blowout proof stem
- Conforms to MSS-SP-110 and API-598
-
Not Compliant, Approved for Non-Potable Water Applications
Specifications
- BAA Compliant:
- No
- Collection:
- Series S-FBV-1
- Color Finish Name:
- Stainless Steel
- Depth:
- 6-3/4 in
- End Connection 1:
- Female Threaded
- End Connection 2:
- Female Threaded
- End Connections:
- Female Threaded
- FM Approved:
- No
- Handle Type:
- Lever
- Height:
- 1-3/4 in
- IAPMO Listed:
- No
- Lead Law Compliance Level:
- Not Compliant, Approved for Non-Potable Water Applications
- MSS:
- MSS-SP-110
- Material:
- Stainless Steel
- Material Type:
- 316
- Maximum Temperature:
- 400
- Minimum Temperature:
- 0
- NSF Certified:
- No
- Pressure - High:
- 125, 1000
- Pressure Class:
- 1000#
- Recommended Valve Application:
- Water
- UL Listed:
- No
- Valve Body Style:
- 2 piece
- Valve Operator:
- Lever Handle
- Valve Port Opening:
- Full Port
- Valve Seat Material:
- Reinforced PTFE
- Valve Size:
- 3/4 in
- Valve Stem:
- Bottom-loaded/Blowout-proof
- Valve Type:
- Ball Valve
- Weight:
- 1.39 lb
- Width:
- 3-1/2 in
