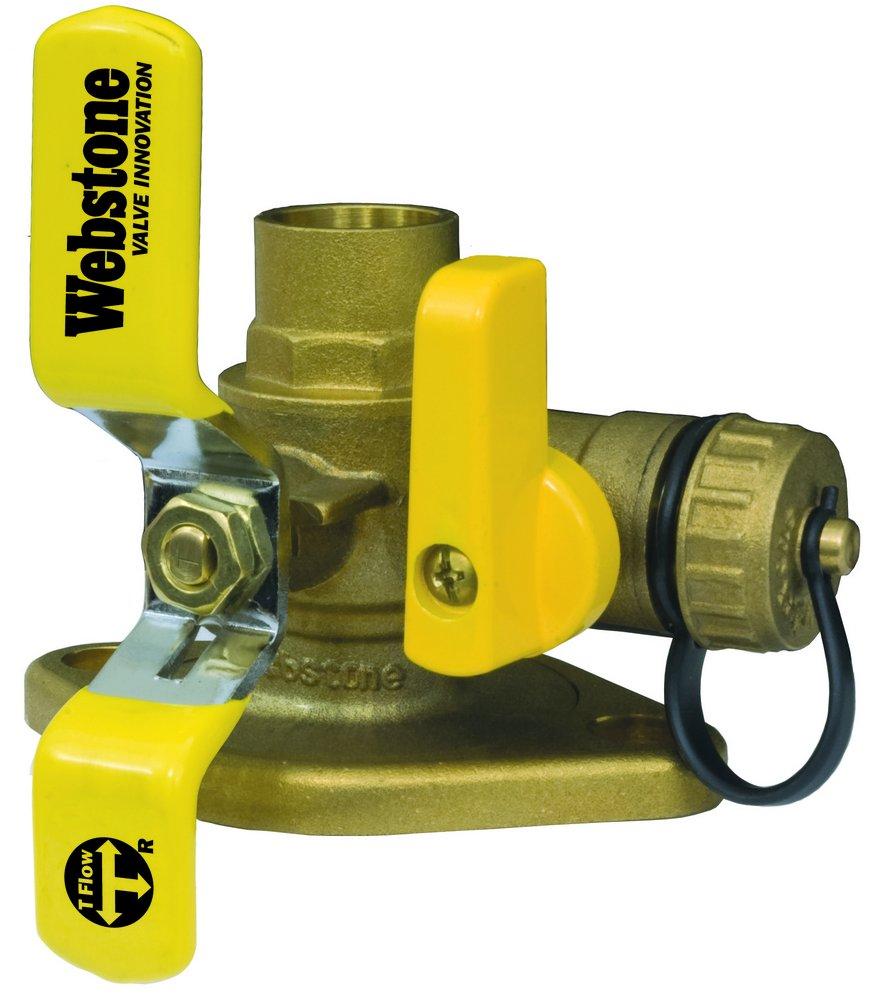

1 in. Forged Brass Full Port Sweat 600# Ball Valve

Webstone a brand of NIBCO

5141 Series 1 in. Forged Brass Full Port Sweat 600# Ball Valve

  • Fast #
  • Part #WH51414HV
  • Item #7018473
  • Manufacturer Part #H-51414HV
3.7 out of 5 Customer Rating
Brand image
Webstone a brand of NIBCO Forged Brass Full Port Sweat 600# Ball Valve
Webstone a brand of NIBCO Forged Brass Full Port Sweat 600# Ball Valve
Webstone a brand of NIBCO

5141 Series 1 in. Forged Brass Full Port Sweat 600# Ball Valve

  • Fast #
  • Part #WH51414HV
  • Item #7018473
  • Manufacturer Part #H-51414HV
3.7 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 2 Case: 20
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Available
    Available for immediate shipment

Product Details

Product Details

  • Unique uni-body design
  • Replaces 8 components, eliminates 7 leak paths and saves 63 minutes of labor
  • Solid forged brass outer flange
  • Fully removable outer flange secured by snap ring
  • Prevents electrolysis
  • Eliminates galvanic corrosion
  • Three way ball purges before or after the pump
  • Rotation of 360° offers greater flexibility
  • Snap ring provides greater control over installation
  • Twice the purging capabilities in a single component
  • Requires Certification

  • Not Compliant, Approved for Non-Potable Water Applications

Specifications

ANSI:
ANSI 372, ANSI 61
ASME:
ASME B16.18 Annex A
Clean Bagged:
No
Collection:
5141 Series
End Connection 1:
Sweat
End Connection 2:
Sweat
End Connections:
Sweat
FM Approved:
No
Handle Material:
Chrome Plated Steel
Height:
2-5/8 in
IAPMO Listed:
No
ISO:
ISO 9001
Lead Law Compliance Level:
Not Compliant, Approved for Non-Potable Water Applications
Length:
2-3/4 in
Material:
Forged Brass
Maximum Temperature:
250
NSF:
NSF 372, NSF 61
NSF Certified:
Yes
Pressure - High:
600
Pressure Class:
600#
Recommended Valve Application:
Commercial, Gas, Industrial, Oil, Residential, Water
Temperature Range:
Up to 100 Deg F
UL Listed:
No
UPC:
018394584143
Valve Disc Material:
Brass
Valve Operator:
T-Handle
Valve Port Opening:
Full Port
Valve Seat Material:
PTFE
Valve Size:
1 in
Valve Stem:
Blowout-proof
Valve Type:
Ball Valve
