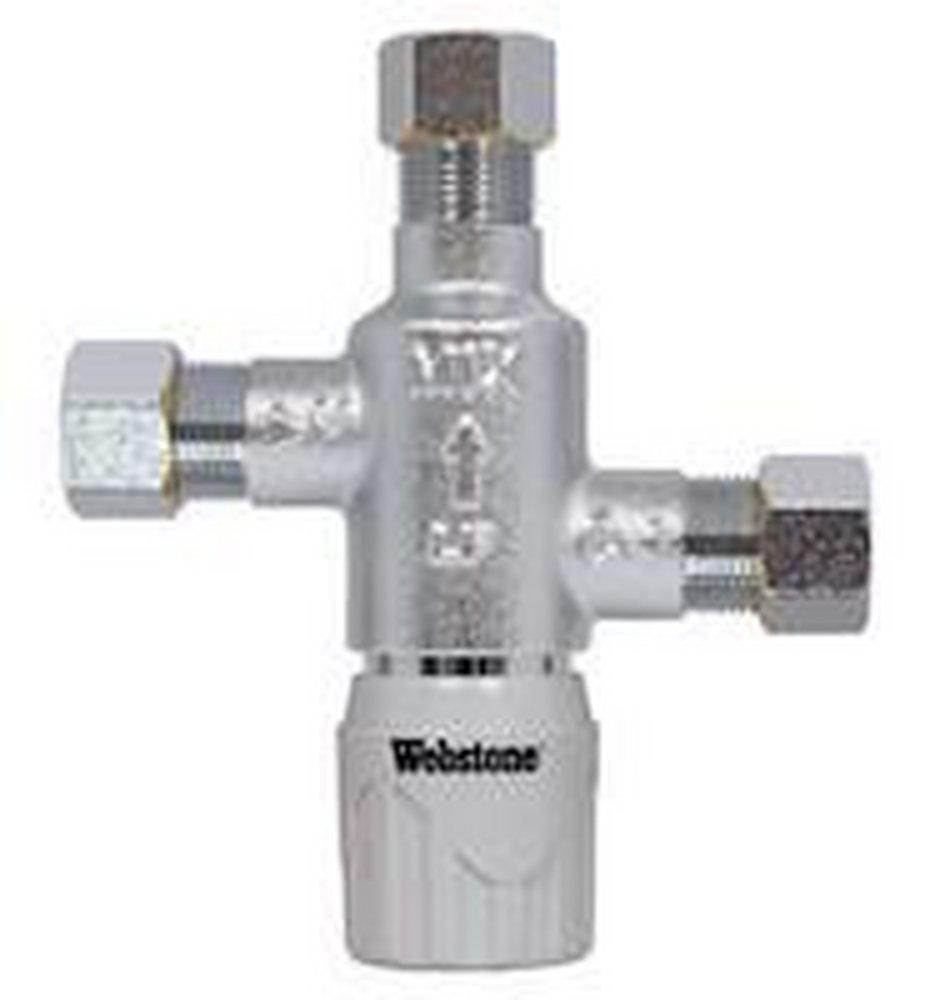

Webstone a brand of NIBCO 7721W Series 3/8 in. Compression Thermostat Mixing Valve | Ferguson

Ferguson.com no longer supports Internet Explorer. If you continue using IE, your experience will be degraded and you will not be able to check out. To use Ferguson.com, please use one of the following browsers: Chrome, Safari, Firefox, or Edge.

Skip to main content Skip to footer content

Webstone a brand of NIBCO

Webstone a brand of NIBCO

Fast #
Part #WH77201W
Item #7839625
Manufacturer Part #H-77201W

$143.05

EACH

Valve Size: 3/8 in

Add $45.00 more to cart to get FREE Shipping

Pick Up: Not available
Shipping: Available for immediate shipment

Frequently Purchased Together

Product Details

Chrome plated forged DZR brass thermostatic mixing valve with integral check valves
Temperature locking handle and cold water by-pass fittings
For point of use (single fixture)
Outlet temperature range 95° - 120°F

Lead Law Compliant

Documents

WARRANTY

SPECIFICATION

Specifications

ANSI:: ANSI 372, ANSI 61

ASSE Standards:: ASSE 1070

Collection:: 7721W Series

End Connection 1:: Compression

End Connection 2:: Compression

End Connection 3:: Compression

End Connections:: Compression

Flow Rate:: 0.5 gpm

Height:: 3-29/100 in

IAPMO Listed:: Yes

Lead Law Compliance Level:: Lead Law Compliant and Certified

Lead Law Compliant:: Yes

Length:: 2-27/50 in

Material:: Forged Brass, Plastic, Rubber, Stainless Steel

Material Type:: EPDM

Maximum Temperature:: 120

Minimum Temperature:: 95

NSF:: NSF 372, NSF 61

NSF Certified:: Yes

Origin:: Global

Pressure Class:: 150#

Proposition 65:: WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Recommended Valve Application:: Water

UL Listed:: No

Valve Body Material:: Forged Brass

Valve Operator:: Locking Handle

Valve Size:: 3/8 in

Valve Type:: Thermostat Mixing Valve

Weight:: 0.507 lb
