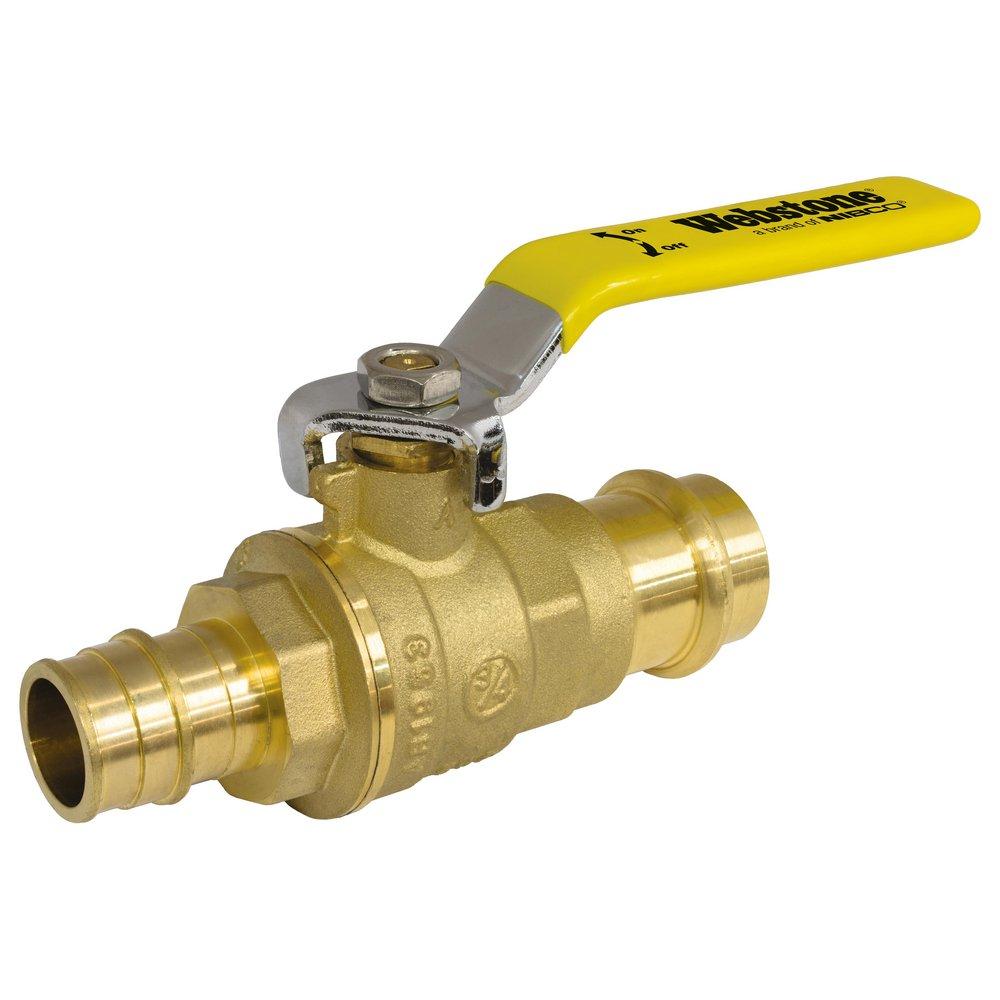

1 in. Forged Brass Full Port Press x F1807 250# Ball Valve
Webstone a brand of NIBCO
8013 Series 1 in. Forged Brass Full Port Press x F1807 250# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 4 Case: 20 Pallet: 480
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Webstone a brand of NIBCO
8013 Series
1 in. Forged Brass Full Port Press x F1807 250# Ball Valve
H-80134W
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Controls Flow With Quarter-Turn Lever Handle
- Easily Transition from Press to PEX
- Saves Time
- Replaces Components
- Reduces Leak paths
- This valve is actuated by a blowout proof stem.
- Adjustable Packing Gland
- Models available to satisfy all state and federal low-lead laws
- Available in PRS x PEX
- Certified to NSF/ANSI/CAN 61 & 372
-
Lead Law Compliant
Specifications
- ANSI:
- ANSI 14, ANSI 372, ANSI 61, ANSI Z1157
- ASTM:
- ASTM F-1807
- Clean Bagged:
- No
- Collection:
- 8013 Series
- End Connection 1:
- Press
- End Connection 2:
- PEX
- End Connections:
- Press x PEX
- FM Approved:
- No
- Handle Material:
- Chrome Plated Steel
- Height:
- 2-3/10 in
- IAPMO Listed:
- Yes
- ISO:
- ISO 9001
- Lead Law Compliance Level:
- Lead Law Compliant and Certified
- Lead Law Compliant:
- Yes
- Length:
- 4-13/50 in
- Material:
- Forged Brass
- Material Type:
- DZR
- Maximum Temperature:
- 250
- NSF:
- NSF 14, NSF 372, NSF 61
- NSF Certified:
- Yes
- Pressure - High:
- 250
- Pressure Class:
- 250#
- Recommended Valve Application:
- Residential, Commercial, Industrial, Water, Oil, Gas
- UL Listed:
- No
- UPC:
- 018394013780
- Valve Disc Material:
- Brass
- Valve Operator:
- Lever Handle
- Valve Port Opening:
- Full Port
- Valve Seat Material:
- PTFE
- Valve Size:
- 1 in
- Valve Stem:
- Blowout-proof
- Valve Type:
- Ball Valve
- Weight:
- 0.49 lb
- Width:
- 2-3/10 in
