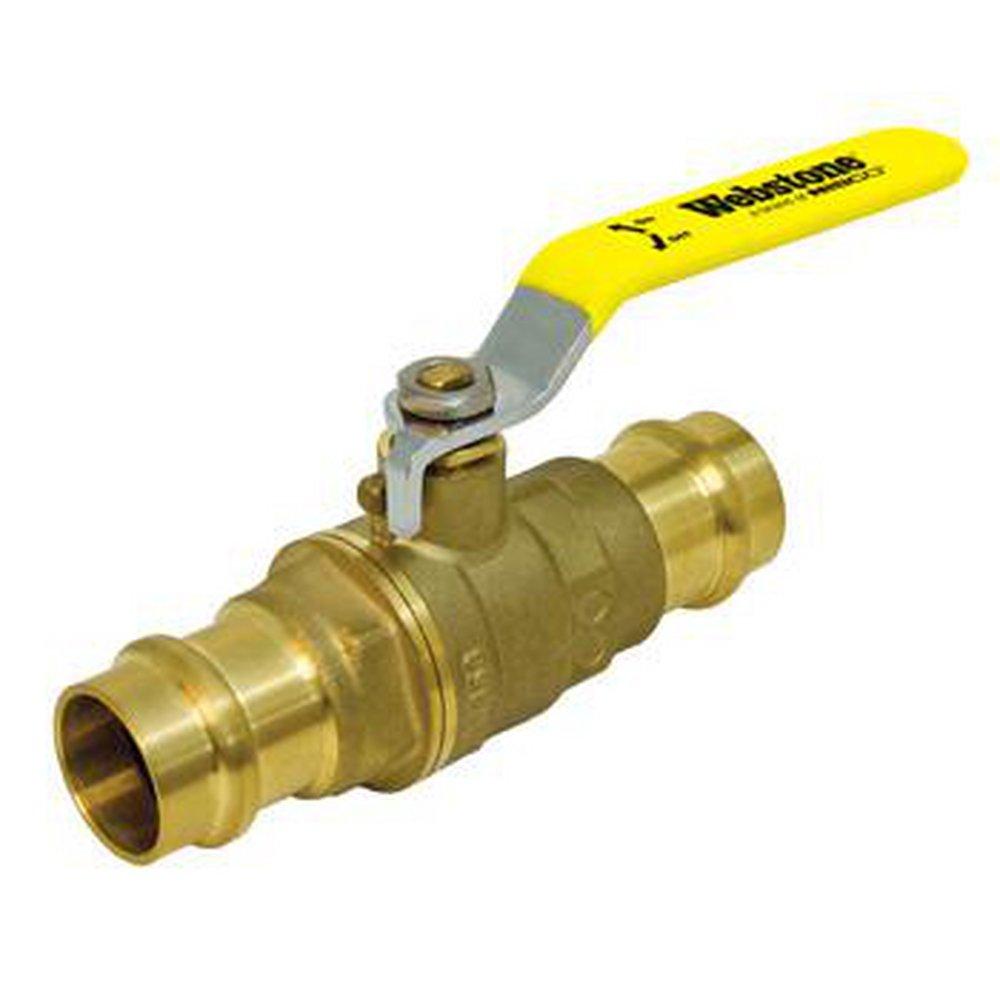

1/2 in. Forged Brass Full Port Press 250# Ball Valve
Webstone a brand of NIBCO
8170 Series 1/2 in. Forged Brass Full Port Press 250# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 1
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
Pick Up Not AvailableNot available in OH
-
Shipping AvailableAvailable for immediate shipmentShipping Not AvailableNot available in OH
Purchase history
Webstone a brand of NIBCO
8170 Series
1/2 in. Forged Brass Full Port Press 250# Ball Valve
H-81702W
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Controls Flow with Quarter-turn Lever Handle
- This Valve is Actuated by a Blowout Proof stem
- Adjustable Packing Gland
- Models Available to Satisfy All State and Federal Low-Lead Laws
Documents
Specifications
- ANSI:
- ANSI 61, ANSI 372, ANSI 14
- Clean Bagged:
- No
- Collection:
- 8170 Series
- End Connection 1:
- Press
- End Connection 2:
- Press
- End Connections:
- Press
- FM Approved:
- No
- Handle Material:
- Chrome Plated Steel
- Height:
- 6-4/5
- IAPMO Listed:
- No
- ISO:
- ISO 9001
- Length:
- 6
- Material:
- Forged Brass
- Maximum Temperature:
- 250
- NSF:
- NSF 61, NSF 372, NSF 14
- NSF Certified:
- Yes
- Origin:
- Global
- Pressure - Maximum:
- 250 psi
- Pressure Class:
- 250#
- Recommended Valve Application:
- Residential, Commercial, Plumbing, HVAC
- UL Listed:
- No
- UPC:
- 018394817029
- Valve Body Material:
- Forged Brass
- Valve Operator:
- Lever Handle
- Valve Port Opening:
- Full Port
- Valve Seat Material:
- PTFE
- Valve Size:
- 1/2 in
- Valve Stem:
- Blowout-proof
- Valve Type:
- Ball Valve
- Weight:
- 0.49
- Width:
- 6-7/10
