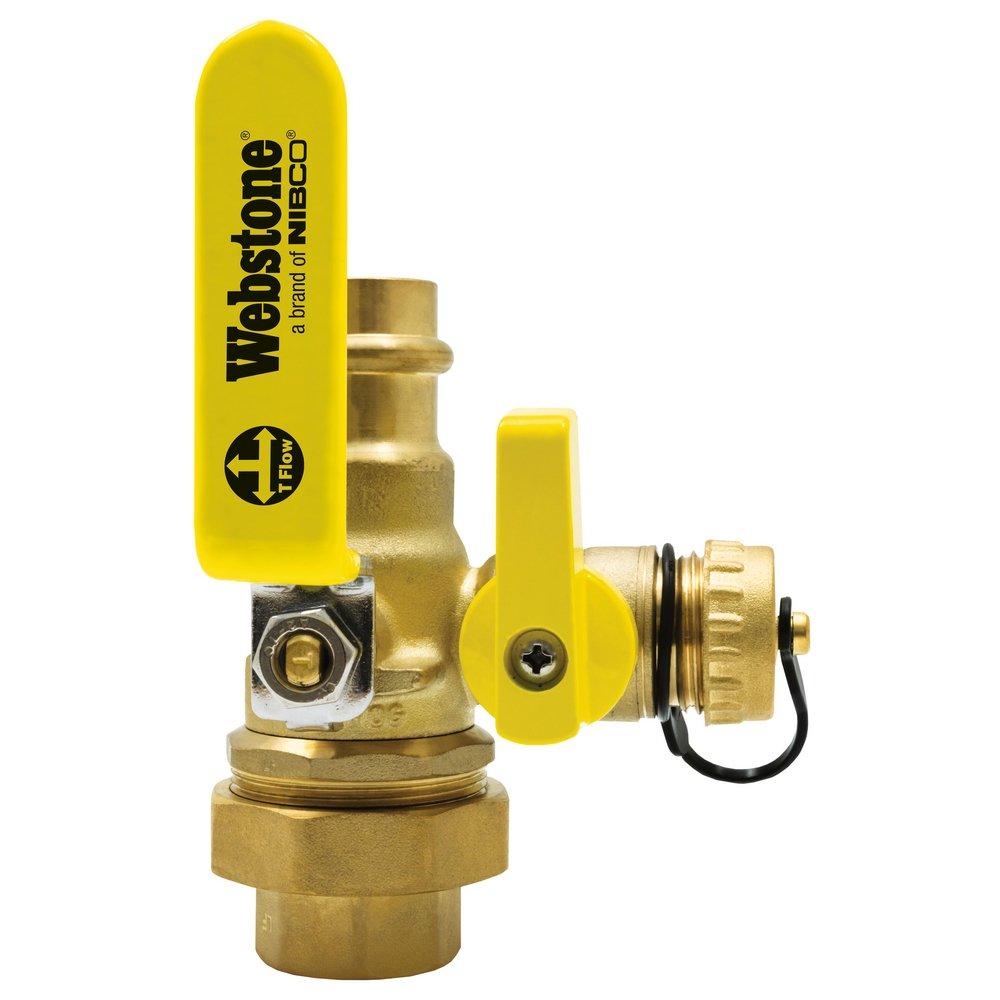

1 in. Forged Brass Full Port Union FIPS x Press 250# Ball Valve
Webstone a brand of NIBCO
H-x043W Series 1 in. Forged Brass Full Port Union FIPS x Press 250# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 2
How to get it:
-
Pick Up Not AvailableNot available in 'VA'
-
Shipping Not AvailableNot available at this timeShipping Not AvailableNot available in 'VA'
Purchase history
Webstone a brand of NIBCO
H-x043W Series
1 in. Forged Brass Full Port Union FIPS x Press 250# Ball Valve
H-80434W
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Eliminates Assembly Needed to Isolate and Drain Any Portion of a Piped System
- Reversible Handle for Added Versatility
- Exclusive Adjustable Flow Path Allow for Draining From Either Side of the Ball
- Union Connection Allows for Any System Appliance to Be Easily Disconnected for Replacement
- Saves 45 Minutes
- Replaces 6 Components
- Eliminates 5 Leak Paths
Specifications
- ANSI:
- ANSI B1.20.1,ANSI 14,ANSI 61,ANSI 372
- Clean Bagged:
- No
- Collection:
- H-x043W Series
- End Connection 1:
- Union FPT
- End Connection 2:
- Press
- End Connections:
- Union FPT x Press
- FM Approved:
- No
- Handle Material:
- Steel
- Height:
- 4-1/10
- Length:
- 7-2/5
- Material:
- Brass
- Material Type:
- DZR
- Maximum Temperature:
- 250
- NSF:
- NSF 14, NSF 61, NSF 372
- NSF Certified:
- Yes
- Origin:
- Global
- Pressure - High:
- 250
- Pressure - Maximum:
- 250 psi
- Pressure Class:
- 250#
- Recommended Valve Application:
- Residential, Commercial, Potable Water, Oil, Chemical
- Temperature Range:
- Up to 250 Deg F
- UL Listed:
- No
- UPC:
- 018394012868
- Valve Body Material:
- Forged Brass
- Valve Body Style:
- 1 piece
- Valve Bonnet Type:
- Union
- Valve Operator:
- Reversible Handle
- Valve Port Opening:
- Full Port
- Valve Seat Material:
- PTFE
- Valve Size:
- 1 in
- Valve Stem:
- Blowout-proof
- Valve Type:
- Ball Valve
- Weight:
- 2.2
- Width:
- 4-1/10
