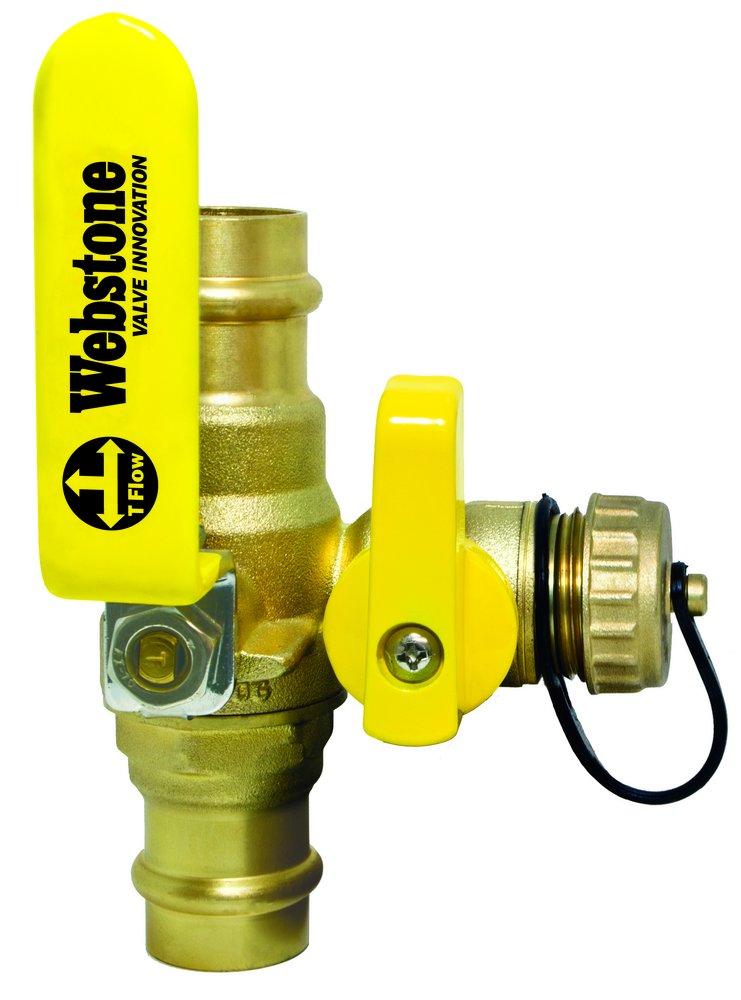

3/4 in. Forged Brass Full Port Press 250# Ball Valve
Webstone a brand of NIBCO
H-x061 Series 3/4 in. Forged Brass Full Port Press 250# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 4 Case: 4Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Webstone a brand of NIBCO
H-x061 Series
3/4 in. Forged Brass Full Port Press 250# Ball Valve
H-80613
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Eliminates the need for assemblies to isolate and drain any portion of a piped system
- Replaces 4 components, eliminates 3 leak paths and saves 27 minutes of labor
- Winterize an entire building with simple quarter-turn actions
- Reversible handle for added versatility
- Exclusive adjustable flow path allows for draining from either side of the ball
- Compatible with popular press tools
Product Information
-
Not Compliant, Approved for Non-Potable Water Applications
Dimensions & Measurements
End Connection 1
Press
End Connection 2
Press
End Connections
Press
Length
4-11/25 in
Pressure Class
250#
Valve Size
3/4 in
Weight
1.23 lb
Characteristics & Features
Collection
H-x061 Series
Handle Material
Chrome Plated Steel
Material
Forged Brass
Valve Body Style
2 piece
Valve Operator
Reversible Handle
Valve Port Opening
Full Port
Valve Seat Material
PTFE
Valve Stem
Blowout-Proof
Valve Type
Ball Valve
Electrical & Operational Information
Maximum Temperature
250
Pressure - High
250
Warranty & Product Information
ANSI
ANSI 61, ANSI 372
FM Approved
No
IAPMO Listed
No
ISO
ISO 9001
Lead Law Compliance Level
Not Compliant, Approved for Non-Potable Water Applications
NSF
NSF 61, NSF 372
NSF Certified
Yes
Recommended Valve Application
Commercial, Residential, Industrial, Water, Oil, Gas
UL Listed
No
UPC
018394008717
