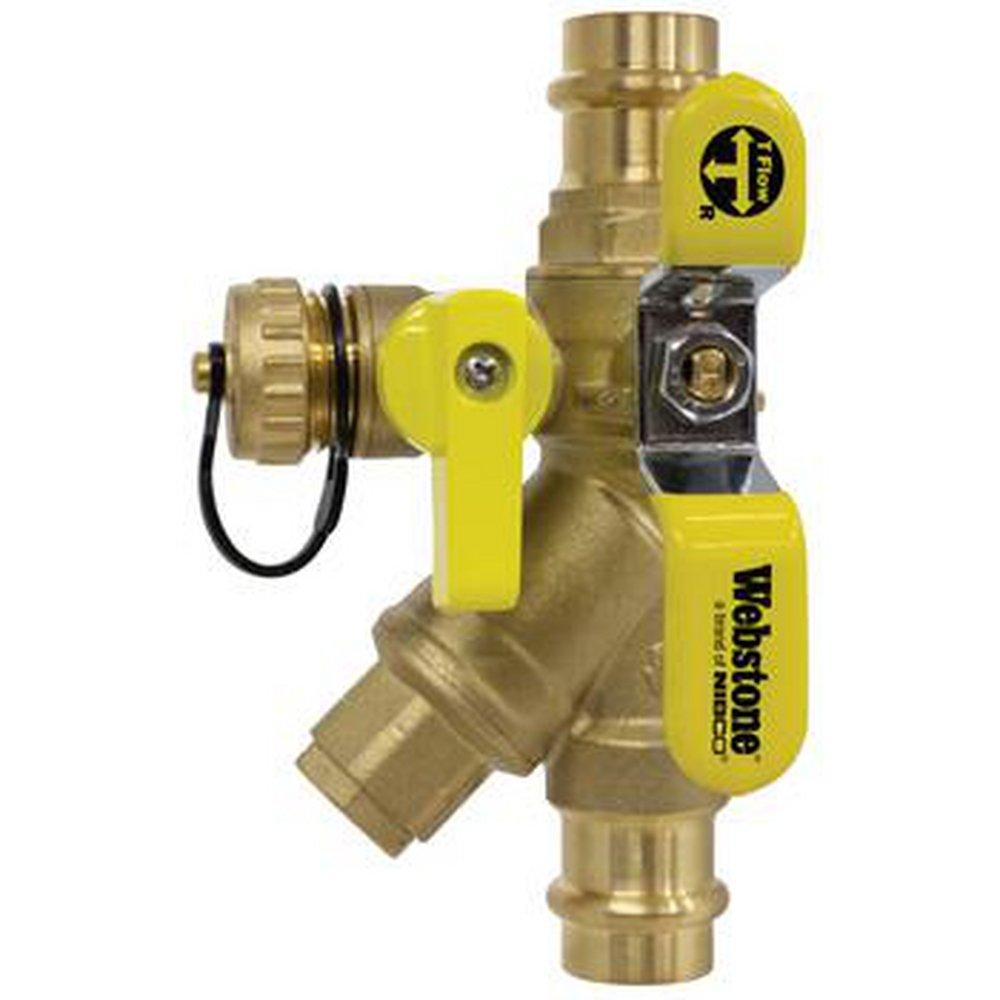

1/2 in. Press Pro-Pal Ball Drain Strainer
You last purchased this on
Webstone a brand of NIBCO
H-x156W Series 1/2 in. Press Pro-Pal Ball Drain Strainer
Purchase history
Webstone a brand of NIBCO
H-x156W Series
1/2 in. Press Pro-Pal Ball Drain Strainer
H-81562W
Order #
Order Date
Job Name
My PO#
Frequently Purchased Together
Product Details
- Integrated Y-strainer saves space and protects system from debris
- Creates cleaner-looking, more efficient installations
- Eliminates assemblies needed to isolate, drain and strain any portion of a piped system
- Saves 63 minutes, replaces 8 components
- O-ring sealed and plugged blow down port for easy installation of a drain valve
- Suitable for vertical or horizontal installation
- O-ring sealed and plugged strainer port for easy removal of filter
- Replaceable 20 mesh screen
- This valve is actuated by a blowout proof stem
- Eliminates 7 leak paths
Specifications
- ANSI:
- ANSI 372, ANSI 61, ANSI B1.20.1
- Clean Bagged:
- No
- Collection:
- H-x156W Series
- Color Finish Name:
- Brass
- Depth:
- 5-3/25 in
- End Connection 1:
- Press
- End Connection 2:
- Press
- End Connections:
- Press
- FM Approved:
- No
- Fitting Sizes:
- 1/2 in
- Handle Included:
- Yes
- Handle Material:
- Chrome Plated Steel
- Handle Type:
- Wing
- Height:
- 2-14/25 in
- Length:
- 5-9/100 in
- Material:
- Brass, Plastic, Stainless Steel
- Material Type:
- DZR, PTFE
- Maximum Temperature:
- 200
- Mesh Size:
- 20
- NSF:
- NSF 372, NSF 61
- NSF Certified:
- Yes
- Origin:
- Global
- Pressure - High:
- 250
- Pressure Class:
- 250#
- Recommended Valve Application:
- Glycol, Oil, Water
- Size:
- 1/2 in
- Strainer Type:
- Wye
- Temperature Rating:
- 200
- UL Listed:
- No
- Valve Body Material:
- Forged Brass
- Valve Body Style:
- 1 piece
- Valve Material:
- Brass
- Valve Operator:
- Wing Handle
- Valve Port Opening:
- Full Port
- Valve Seat Material:
- PTFE
- Valve Type:
- Y-Strainer
- Weight:
- 1.16 lb
- Width:
- 3-27/50 in
