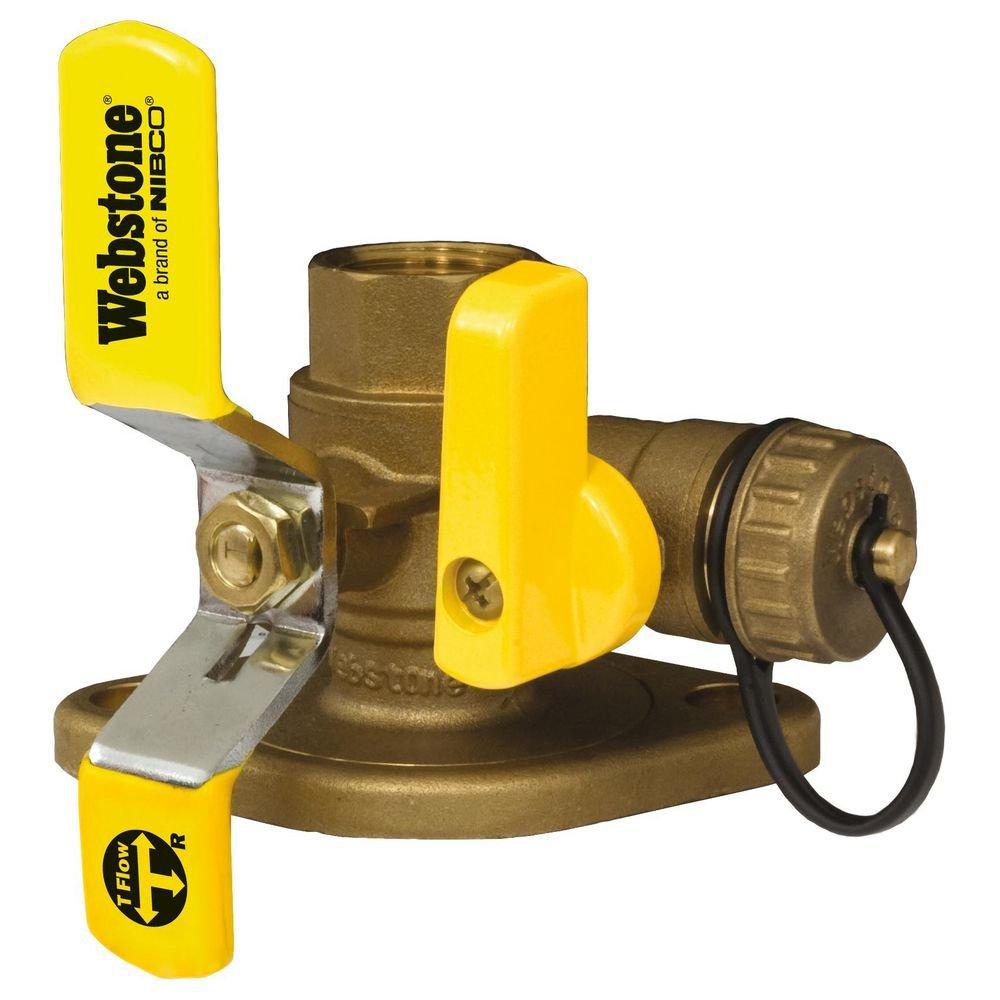

3/4 in. Forged Brass Full Port FIPS x Flanged 600# Ball Valve

Webstone a brand of NIBCO

Isolator® 3/4 in. Forged Brass Full Port FIPS x Flanged 600# Ball Valve

  • Fast #
  • Part #WH41413HV
  • Item #7340532
  • Manufacturer Part #H-41413HV
3.1 out of 5 Customer Rating
Brand image
Webstone a brand of NIBCO Forged Brass Full Port FIPS x Flanged 600# Ball Valve
Webstone a brand of NIBCO Forged Brass Full Port FIPS x Flanged 600# Ball Valve
Webstone a brand of NIBCO

Isolator® 3/4 in. Forged Brass Full Port FIPS x Flanged 600# Ball Valve

  • Fast #
  • Part #WH41413HV
  • Item #7340532
  • Manufacturer Part #H-41413HV
3.1 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Looking for compatible parts?
Out of Stock
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
    Pick Up  Not Available
    Not available in 'OH'
  • Shipping Not Available
    Not available at this time
    Shipping Not Available
    Not available in 'OH'

Product Details

Product Details

  • Easily Isolates the Pump for Replacement
  • Prevents Electrolysis and Eliminates Galvanic Corrosion
  • Rotating Flange is Secured by a Snug-Fit Snap-Ring that Provides Greater Control Over Positioning During Installation
  • Flange Features a Conical Inlet to Minimize Turbulence
  • Multi-Function Drain Makes the Isolator the Only Valve That Drains From Either Side of the Pump
  • Fits Virtually Any Standard Circulator Pump
  • Saves 63 Minutes
  • Replaces 8 Components
  • Eliminates 7 Leak Paths
  • This valve is actuated by a blowout proof stem.
  • Requires Certification

  • Not Compliant, Approved for Non-Potable Water Applications

Specifications

ANSI:
ANSI 61:ANSI 372
Clean Bagged:
No
Collection:
Isolator®
End Connection 1:
FPT
End Connection 2:
Flanged
End Connection 3:
MGHT
End Connections:
FPT x Flanged x MGHT
FM Approved:
No
Handle Material:
Enamel Coated Aluminum
Height:
2-3/4
IAPMO Listed:
No
ISO:
ISO 9001
Lead Law Compliance Level:
Not Compliant, Approved for Non-Potable Water Applications
Length:
2-3/8
Material:
Brass
Material Type:
Brass
Maximum Temperature:
300
NSF:
NSF 61:NSF 372
NSF Certified:
Yes
Origin:
Global
Pressure - High:
600
Pressure - Maximum:
600 psi
Pressure Class:
600#
Recommended Valve Application:
Residential, Commercial, Plumbing, Heating
Temperature Range:
0 to 300 Deg F
UL Listed:
No
UPC:
018394005150
Valve Body Material:
Brass
Valve Body Style:
Flanged
Valve Disc Material:
Brass
Valve Operator:
T-Handle
Valve Port Opening:
Full Port
Valve Seat Material:
PTFE
Valve Size:
3/4 in x 3/4 in
Valve Stem:
Blowout-proof
Valve Type:
Ball Valve
Weight:
1740
