1 in. Brass Full Port Sweat 600# Ball Valve

Webstone a brand of NIBCO

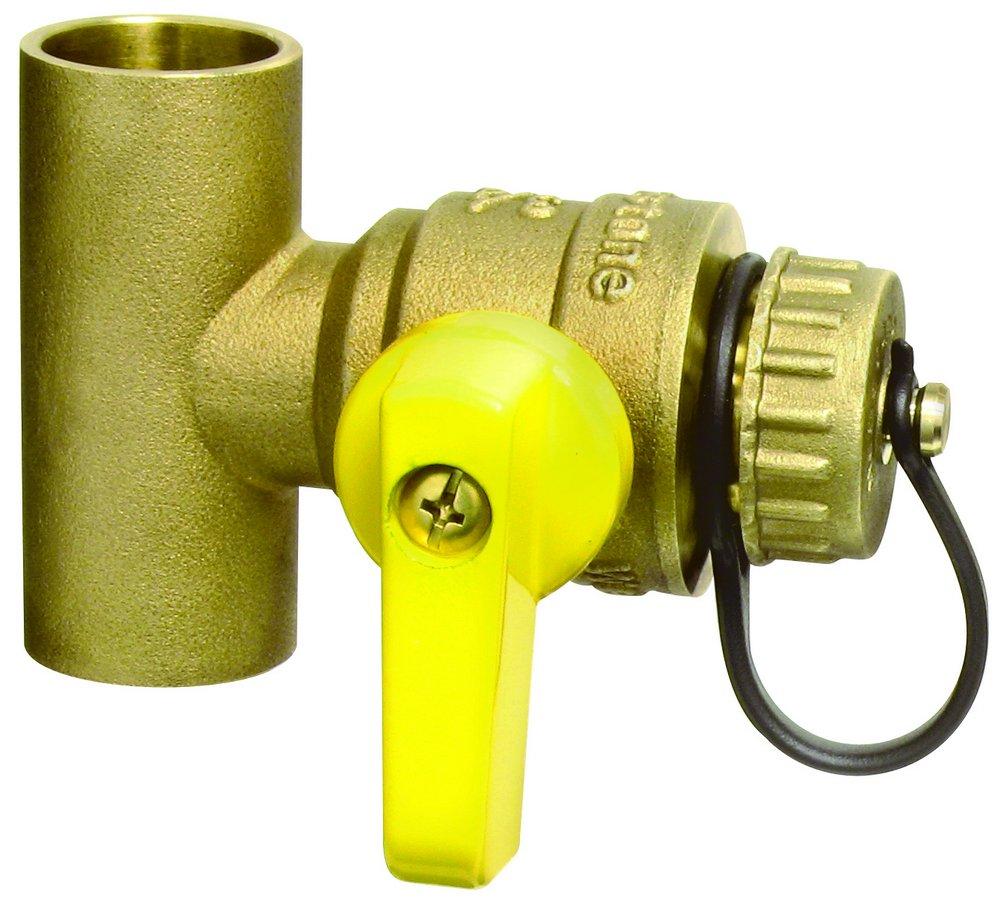

Pro-Pal Series® 1 in. Brass Full Port Sweat 600# Ball Valve

  • Fast #
  • Part #WH50674W
  • Item #4583012
  • Manufacturer Part #H-50674W
5 out of 5 Customer Rating
Brand image
Webstone a brand of NIBCO Brass Full Port Sweat 600# Ball Valve
Webstone a brand of NIBCO Brass Full Port Sweat 600# Ball Valve
Webstone a brand of NIBCO

Pro-Pal Series® 1 in. Brass Full Port Sweat 600# Ball Valve

  • Fast #
  • Part #WH50674W
  • Item #4583012
  • Manufacturer Part #H-50674W
5 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 4 Case: 40
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
    Pick Up  Not Available
    Not available in OH
  • Shipping Not Available
    Not available at this time
    Shipping Not Available
    Not available in OH

Product Details

Product Details

  • Eliminates the need for assemblies to install drains into a line
  • Replaces 2 components, eliminates 1 leak path and saves 9 minutes of labor
  • Install anywhere a drain or purge valve is required
  • Hi-flow alternative for filling, draining, or venting closed-loop hydronic systems
  • Add a garden hose connection to any water source in lines up to 2"
  • Certified to NSF/ANSI 61 & 372
  • Available in SWT, PRS
  • Models available to satisfy all state and federal low-lead laws
  • Adjustable Packing Gland
  • Ball valve with integral spring check saves labor, space, and leak paths
  • Requires Certification

  • Lead Law Compliant

Specifications

ANSI:
ANSI 61, ANSI 372
ASME:
ASME B16.18
Collection:
Pro-Pal Series®
End Connection 1:
Sweat
End Connection 2:
Sweat
End Connections:
Sweat
Handle Material:
Enamel Coated Aluminum
Height:
2-13/16 in
IAPMO Listed:
No
ISO:
ISO 9001
Lead Law Compliance Level:
Lead Law Compliant and Certified
Lead Law Compliant:
Yes
Length:
2-13/16 in
Material:
Brass, Aluminum, Plastic
Material Type:
PTFE
Maximum Temperature:
250
NSF:
NSF 61, NSF 372
NSF Certified:
Yes
Pressure - High:
600
Pressure Class:
600#
Recommended Valve Application:
Commercial, Residential, Industrial, Water, Oil, Gas
UL Listed:
No
UPC:
018394004108
Valve Body Material:
Brass
Valve Body Style:
T Pattern
Valve Operator:
Lever Handle
Valve Port Opening:
Full Port
Valve Seat Material:
PTFE
Valve Size:
1 in
Valve Stem:
Blowout-proof
Valve Type:
Ball Valve
