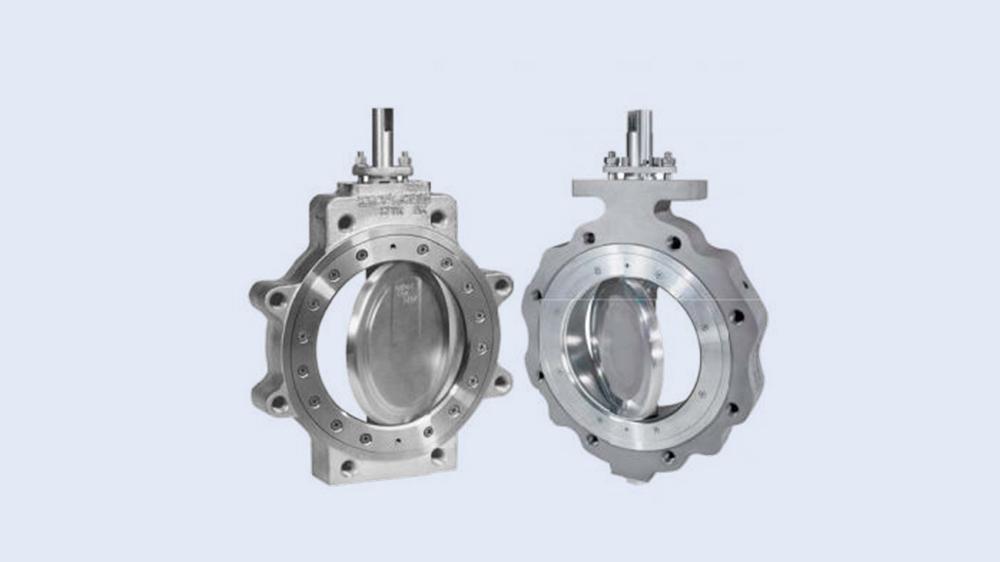

3 in. Stainless Steel Lug Butterfly Valve
XOMOX
821 Series 3 in. Stainless Steel Lug Butterfly Valve
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
XOMOX
821 Series
3 in. Stainless Steel Lug Butterfly Valve
03821667SGST3L
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- 360° sealing seat area
- Long life of seat due to early disengagement of the disc from seat
- Reduced torque figures compared to conventional butterfly valve designs
- A large diameter shaft which provides a direct and distortion free power transmission to disc and therefore excellent control characteristics (low hysteresis)
Documents
Specifications
- API:
- API 607, API 609
- ASME:
- ASME B16.5, ASME B16.21, ASME B16.34, ASME Class 150
- ASTM:
- ASTM A216, ASTM A351, ASTM A494, ASTM A743, ASTM A744, ASTM B367
- Application:
- Chemical Industry, Desalination, Energy, HVAC, Petrochemical Industry, Power Generation, Pulp and Paper
- Collection:
- 821 Series
- End Connection 1:
- Lug
- End Connection 2:
- Lug
- End Connections:
- Lug
- ISO:
- ISO 5211
- MSS:
- MSS SP 44, MSS SP 68
- Material:
- Stainless Steel, Plastic
- Material Type:
- UHMWPE
- Pressure Class:
- 150#
- Recommended Valve Application:
- Chlorine, Gas, Oil, Oxygen, Sewage, Sour Gas
- Valve Body Material:
- Stainless Steel
- Valve Body Style:
- Lug
- Valve Disc Material:
- 316 Stainless Steel
- Valve Operator:
- Locking Lever Handle
- Valve Seat Material:
- UHMWPE
- Valve Size:
- 3 in
- Valve Type:
- Butterfly Valve
