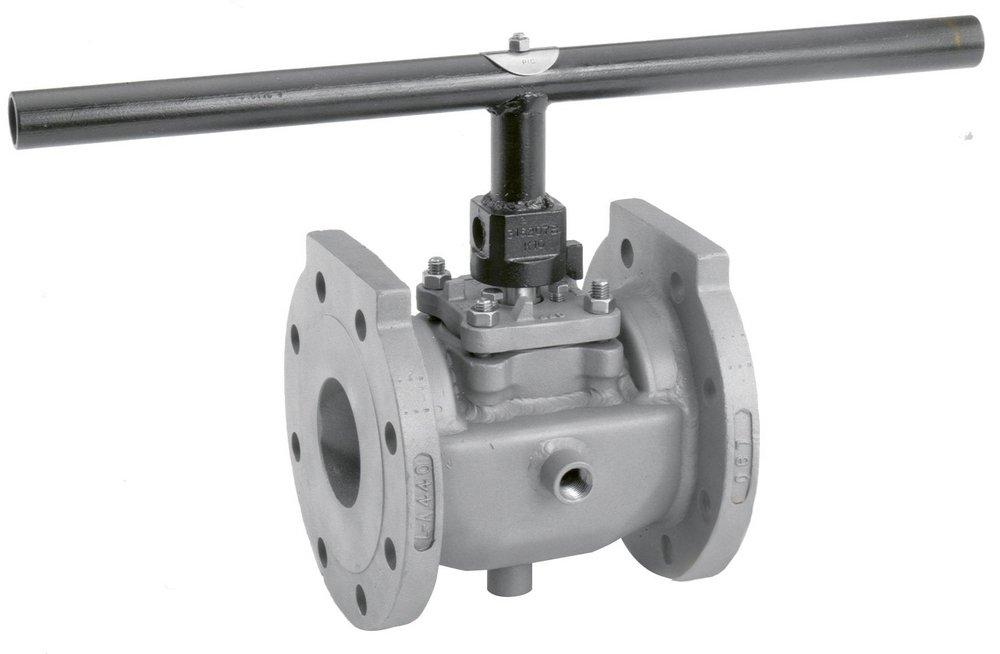

1/2 in. 150# RF FLG DI PFA Lined Plug Valve with Locking Wrench Operator, Ductile Iron Body, Ductile Iron Plug, PFA Body Liner, PFA Plug Liner

Xomox

Figure 061 1/2 in. 150# RF FLG DI PFA Lined Plug Valve with Locking Wrench Operator, Ductile Iron Body, Ductile Iron Plug, PFA Body Liner, PFA Plug Liner

Brand image
Xomox

Figure 061 1/2 in. 150# RF FLG DI PFA Lined Plug Valve with Locking Wrench Operator, Ductile Iron Body, Ductile Iron Plug, PFA Body Liner, PFA Plug Liner

  • Part #X0611P627P6WYD
  • Item #4113136
  • Manufacturer Part #061-1P6-1-P6-WY 1/2
4.6 out of 5 Customer Rating

$1.00
EACH

Package Quantity Info:

EA: 1 IP: 1
Out of Stock
  • Pick Up: Not available
  • Shipping: Not available

Product Details

  • Locked in lining resists shrinkage, collapse, and blow-out
  • Higher pressures and vacuums are easily handled
  • Tufline® lined valve bodies and plugs incorporate dovetail recesses
  • The three adjusting bolts in the cover and the bottom adjustment bolt work together to assure a maximum sealing capability and an extended service life
  • A continuous primary seal results from the interaction of the tapered plug and the tapered body bore

Documents


Specifications

ANSI:
ANSI B16.34, ANSI B16.42, ANSI Class 150
API:
API 607
ASME:
ASME B16.34
ASTM:
ASTM A-395, ASTM D-5162
Collection:
Figure 061
End Connection 1:
Flanged
End Connection 2:
Flanged
End Connections:
Flanged
FM Approved:
No
Length:
4-1/4 in
MSS:
MSS SP-61
Material:
Ductile Iron
Material Type:
PFA
NSF Certified:
No
Pressure Class:
150#
Recommended Valve Application:
Benzene, Bromine, Chlorine, Hydrochloric Acid, Nitric Acid, Phosphoric Acid, Sea Water, Sulphuric Acid
Temperature Range:
-40 to 200 Deg C
UL Listed:
No
Valve Body Material:
Ductile Iron
Valve Body Style:
2-way
Valve Operator:
Wrench with Locking Device
Valve Seat Material:
PFA
Valve Size:
1/2 in
Valve Type:
Plug Valve
Weight:
8 lb
