4 in. Ductile Iron Reduced Port Flanged 150# Ball Valve

You last purchased this on

XOMOX

Series XLB 4 in. Ductile Iron Reduced Port Flanged 150# Ball Valve

  • Fast #
  • Part #XLB42A1P628P16GP
  • Item #7956465
  • Manufacturer Part #XLB-42A-1-P6-28-P16-GP
3.9 out of 5 Customer Rating
Brand image

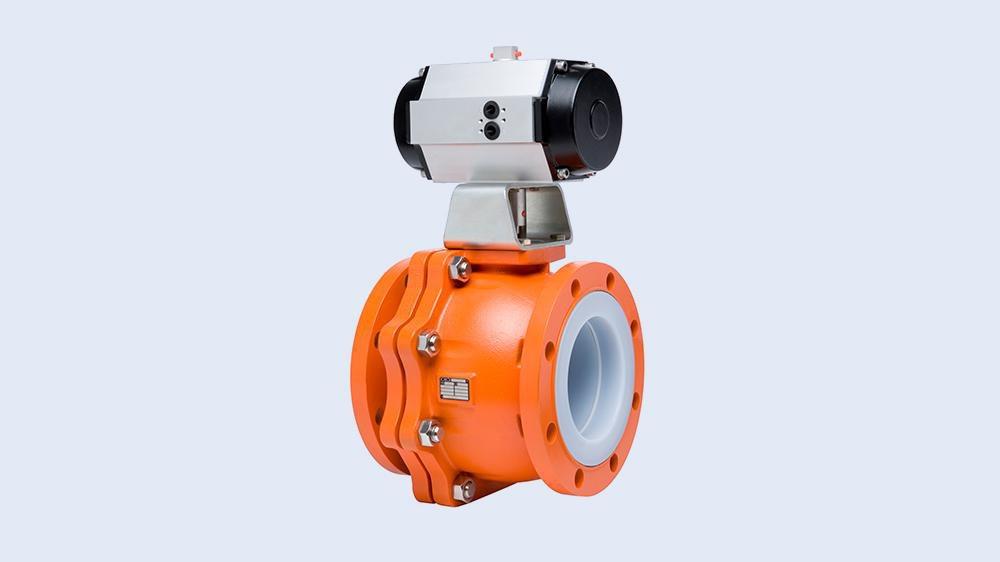

XOMOX Ductile Iron Reduced Port Flanged 150# Ball Valve
You last purchased this on

XOMOX

Series XLB 4 in. Ductile Iron Reduced Port Flanged 150# Ball Valve

  • Fast #
  • Part #XLB42A1P628P16GP
  • Item #7956465
  • Manufacturer Part #XLB-42A-1-P6-28-P16-GP
3.9 out of 5 Customer Rating
X Points
EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Looking for compatible parts?
Out of Stock
  • Pick Up: Not available
  • Shipping: Not available

Frequently Purchased Together

Product Details

Product Details

  • XOMOX® XLB lined ball valves offer economical solutions for the vast majority of chemical applications while maintaining the highest possible degree of performance in terms of in-line leakage and fugitive emissions with the Patented SX stem seal design
  • Lower torque smaller actuators, reduced costs, space and weight saving
  • Compact design allows installation in space restricted areas in parallel piping systems
  • Actuator mounting fully compliant with ISO 5211 allowing use of standardized mounting kits
  • The SX seal in the XLB valve moves in conjunction with the spherical portion of the stem, maintaining a constant seal
  • The body assembly has metal-to-metal connection that offers resistance against forces that may be created in the pipework
  • Innovative "pressure assisted" SX seal device provides the highest protection from fugitive emissions
  • The XLB dynamic body joint design retains pressure boundary during thermal cycles
  • Requires Certification

Specifications

ANSI:
ANSI B16.34
ASME:
ASME B16.10, ASME B16.5 Class 150
BAA Compliant:
No
Clean Bagged:
No
Collection:
Series XLB
End Connection 1:
Flanged
End Connection 2:
Flanged
End Connections:
Flanged
FM Approved:
No
Fire Suppression System Rated:
No
Handle Material:
Ductile Iron
IAPMO Listed:
No
ISO:
ISO 15848
Length:
9 in
MA Approved:
No
MSS:
MSS SP-61
Material:
Ductile Iron, Plastic
Material Type:
PFA
NSF Certified:
No
Pressure - High:
145
Pressure Class:
150#
Recommended Valve Application:
Chemical, Marine
Temperature Range:
-20 to 400 Deg F (-29 to 204 Deg C)
UL Listed:
No
Valve Body Material:
Ductile Iron
Valve Body Style:
Ball
Valve Operator:
Gear Operator Handle
Valve Port Opening:
Standard Port
Valve Seat Material:
PFA
Valve Size:
4 in
Valve Type:
Ball Valve
Weight:
64 lb
cUPC Certified:
No
