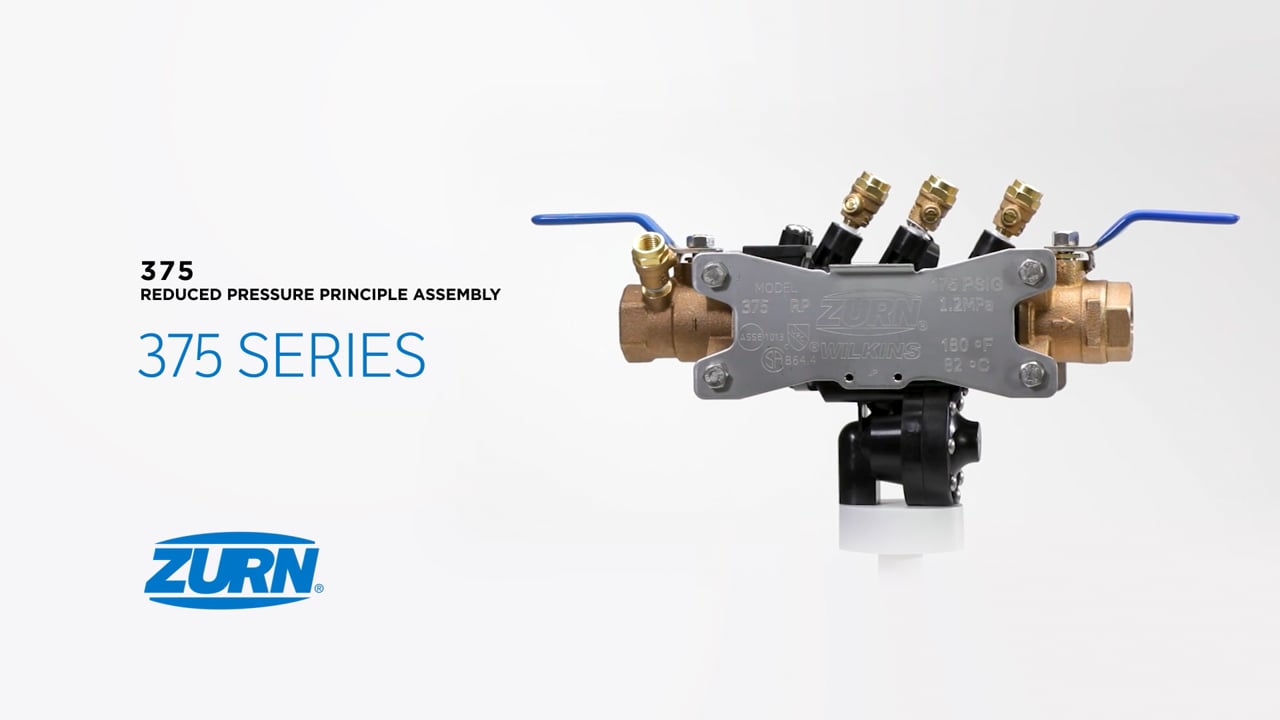

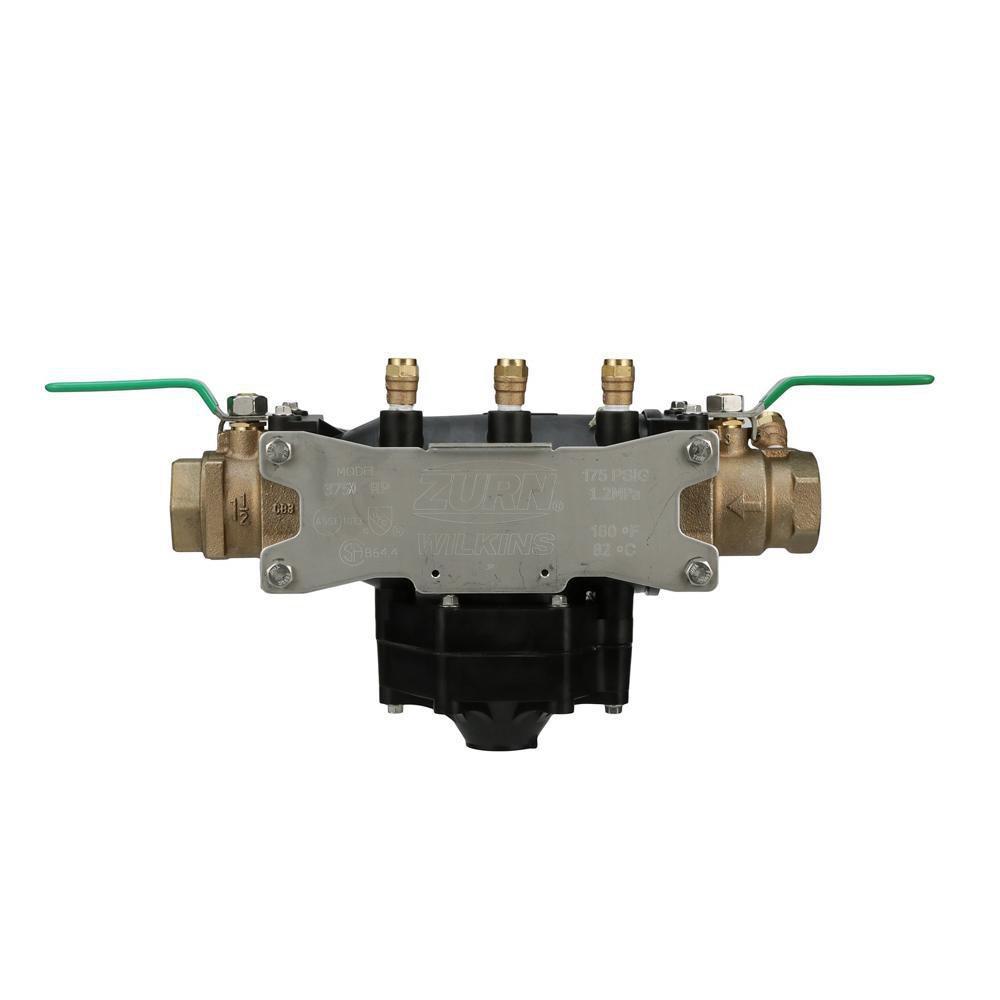

1-1/2 in Reinforced Nylon Flanged Reduced Pressure Principle Assembly with Quarter-Turn Ball Valves
Zurn Wilkins
375XL 1-1/2 in Reinforced Nylon Flanged Reduced Pressure Principle Assembly with Quarter-Turn Ball Valves
Package Quantity Info:
Each: 1 Inner Pack: 1Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Zurn Wilkins
375XL
1-1/2 in Reinforced Nylon Flanged Reduced Pressure Principle Assembly with Quarter-Turn Ball Valves
112-375XL
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Fits pipes with 1-1/2" inner diameter
- With full port QT ball valves
- EZSwap pressure vessel is removable for easy access and added convenience
- Durable, UV-resistant EZSwap Pressure Vessel resists corrosion and mineral build-up to better withstand harsh conditions
- Minimal bronze construction acts as theft deterrent
- Optional line flush tool provides easy line flushing, saving up to 15 minutes per installation and easier winterization.
- ASSE listed 1013 and cUPC listed
- CSA certified B64.4 and Meets the requirements of NSF/ANSI/CAN 61
- Safe Drinking Water Act compliant
- Approved by the Foundation for Cross Connection Control and Hydraulic Research at the University of Southern California
Product Information
-
Lead Law Compliant
Dimensions & Measurements
End Connection 1
Flanged
End Connection 2
Flanged
End Connections
Flanged
Height
9-1/2 in
Length
15-1/4 in
Pressure - Maximum
175 psi
Valve Size
1-1/2 in
Weight
21.5 lb
Width
6-1/4 in
Characteristics & Features
Collection
375XL
Installation Type
Vertical, Horizontal
Material
Stainless Steel, Nylon, Low Lead Cast Bronze
Material Type
300, Buna-N, Reinforced Nylon
Number of Handles
Two Handle
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Valve Body Material
Reinforced Nylon
Valve Body Style
Inline
Valve Material
Stainless Steel
Valve Operator
Lever Handle
Valve Port Opening
Full Port
Valve Seat Material
Delrin
Valve Type
Reduced Pressure Principle Assembly
Electrical & Operational Information
Maximum Temperature
180
Minimum Temperature
33
Warranty & Product Information
ANSI
ANSI B1.20.1
ASSE Standards
ASSE 1013
AWWA
AWWA C-511
CSA Certified
CSA
IAPMO Listed
Yes
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
NSF Certified
Yes
Recommended Valve Application
Plumbing, Water
UL Listed
Yes
UPC
612052071640
