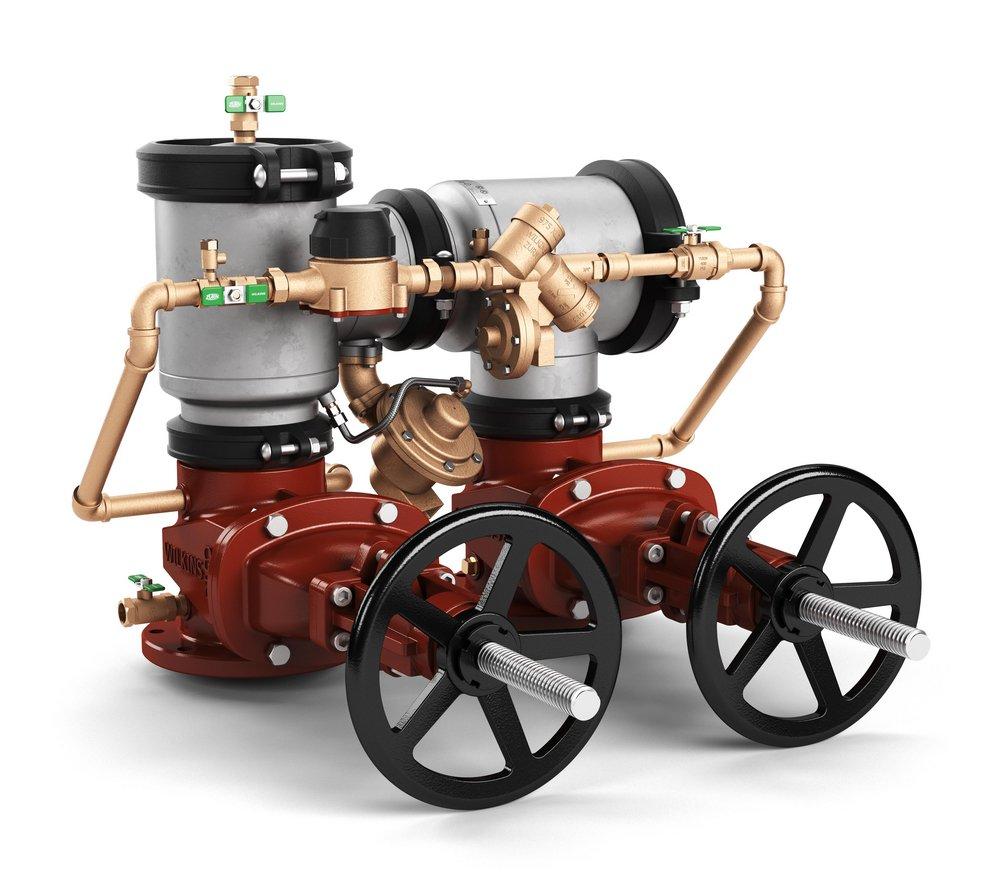

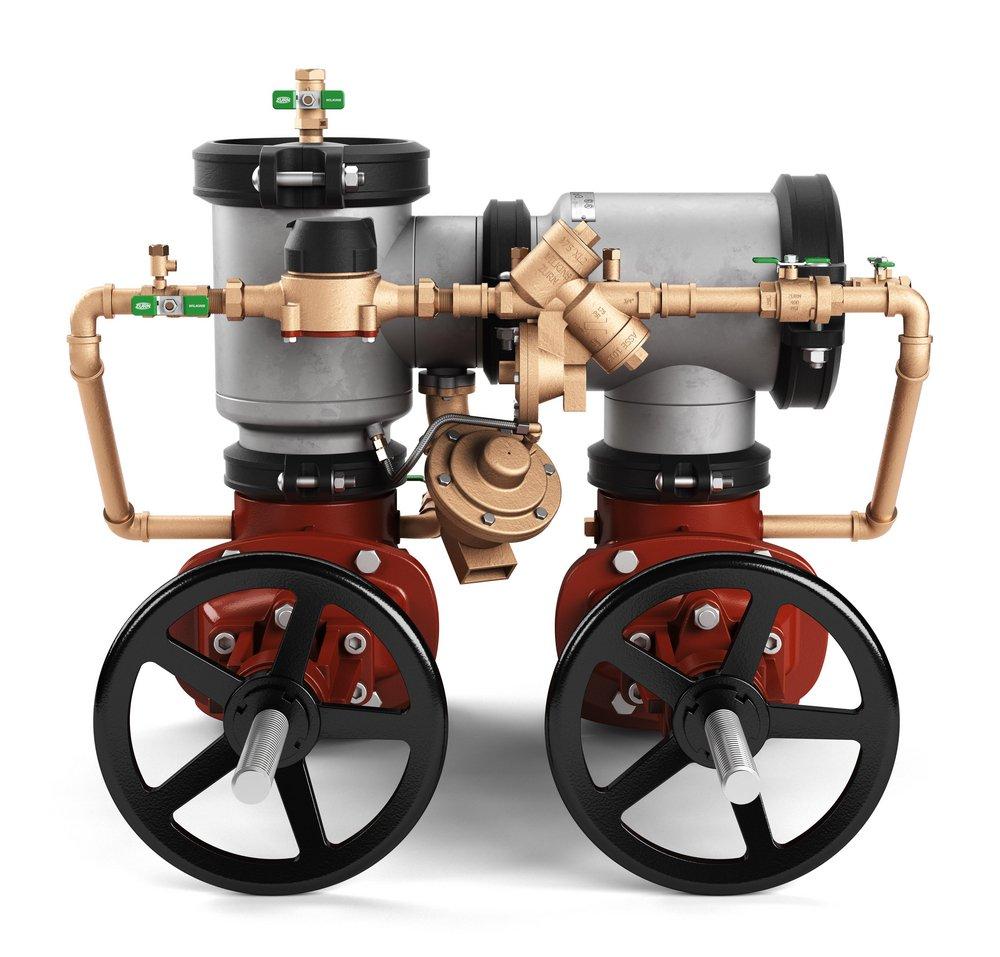

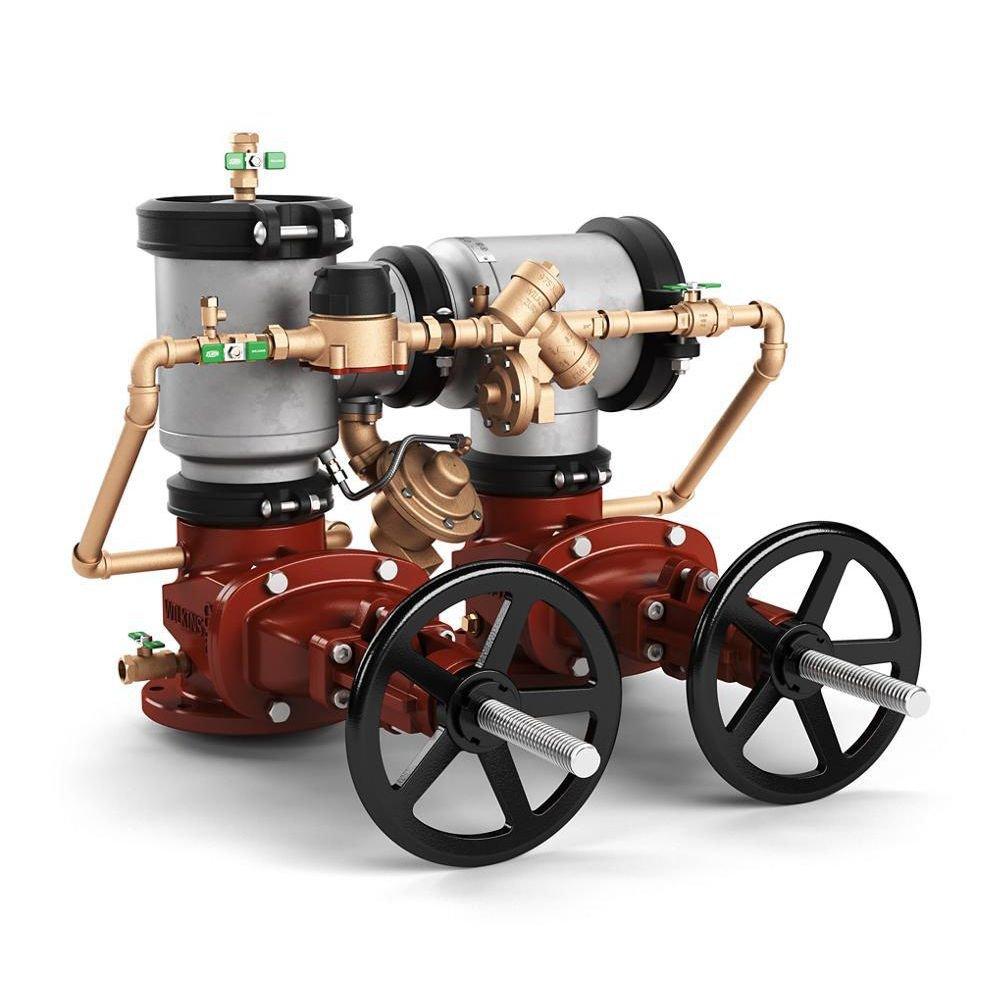

10 in. 304L Stainless Steel Flanged OS&Y Body Sprinkler Valve
Zurn Wilkins
Model 475STDA 10 in. 304L Stainless Steel Flanged OS&Y Body Sprinkler Valve
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
Purchase history
Zurn Wilkins
Model 475STDA
10 in. 304L Stainless Steel Flanged OS&Y Body Sprinkler Valve
10-475STDA
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- For use with potable water pipes with a 10 in. diameter
- OS and Y gate valves; GPM meter
- Superior stainless steel body resists corrosion and extends the life of the product
- Small, compact footprint allows for direct drop-in replacement
- Time-tested check and relief valve components ensure easy maintenance and more water system uptime
- Patented compound checks provide ultra-low pressure drop as documented by approval authorities, reducing the need for a booster pump
- Patented AR spool for drop-in replacements, matching lay-lengths of common n-pattern valves
- AR spool maintains agency approvals when installed by the factory
- Backflow setter eliminates the need for concrete thrust blocks, allowing for easier installation and lower cost
- Available in sizes 4 in. through 10 in.
Product Information
-
Lead Law Compliant
Dimensions & Measurements
End Connection 1
Flanged
End Connection 2
Flanged
End Connections
Flanged
Height
53-9/16 in
Length
48 in
Pressure - Maximum
350 psi
Valve Size
10 in
Weight
837 lb
Width
55-1/8 in
Characteristics & Features
Collection
Model 475STDA
Installation Type
Horizontal, Vertical
Material
Stainless Steel, Plastic, Rubber
Material Type
300, 304L, Buna-N, Noryl®, EPDM
Number of Handles
Two Handle
Valve Body Material
304L Stainless Steel
Valve Body Style
Inline
Valve Disc Material
EPDM
Valve Material
Stainless Steel
Valve Operator
Hand Wheel
Valve Port Opening
Full Port
Valve Seat Material
Noryl
Valve Stem
Outside
Valve Type
Reduced Pressure Detector Assembly
Electrical & Operational Information
Minimum Temperature
33
Pressure - High
175
Temperature Range
Up to 140 Deg F
Warranty & Product Information
ANSI
ANSI 61
ASME
ASME B16.42
ASSE Standards
ASSE 1047
AWWA
AWWA C-550
CSA Certified
CSA B64.4
FM Approved
Yes
IAPMO Listed
Yes
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
NSF
NSF 61
NSF Certified
Yes
Recommended Valve Application
Fire Protection, Potable Water, Waterworks
UL Listed
Yes
UPC
612052282930
