1-1/4 in Bronze FPT Reduced Pressure Principle Assembly with Quarter-Turn Ball Valves

Zurn Wilkins

Model 975XL3 1-1/4 in Bronze FPT Reduced Pressure Principle Assembly with Quarter-Turn Ball Valves

  • Fast #
  • Part #W975XL3H
  • Item #9753845
  • Manufacturer Part #114-975XL3
5 out of 5 Customer Rating
Brand image

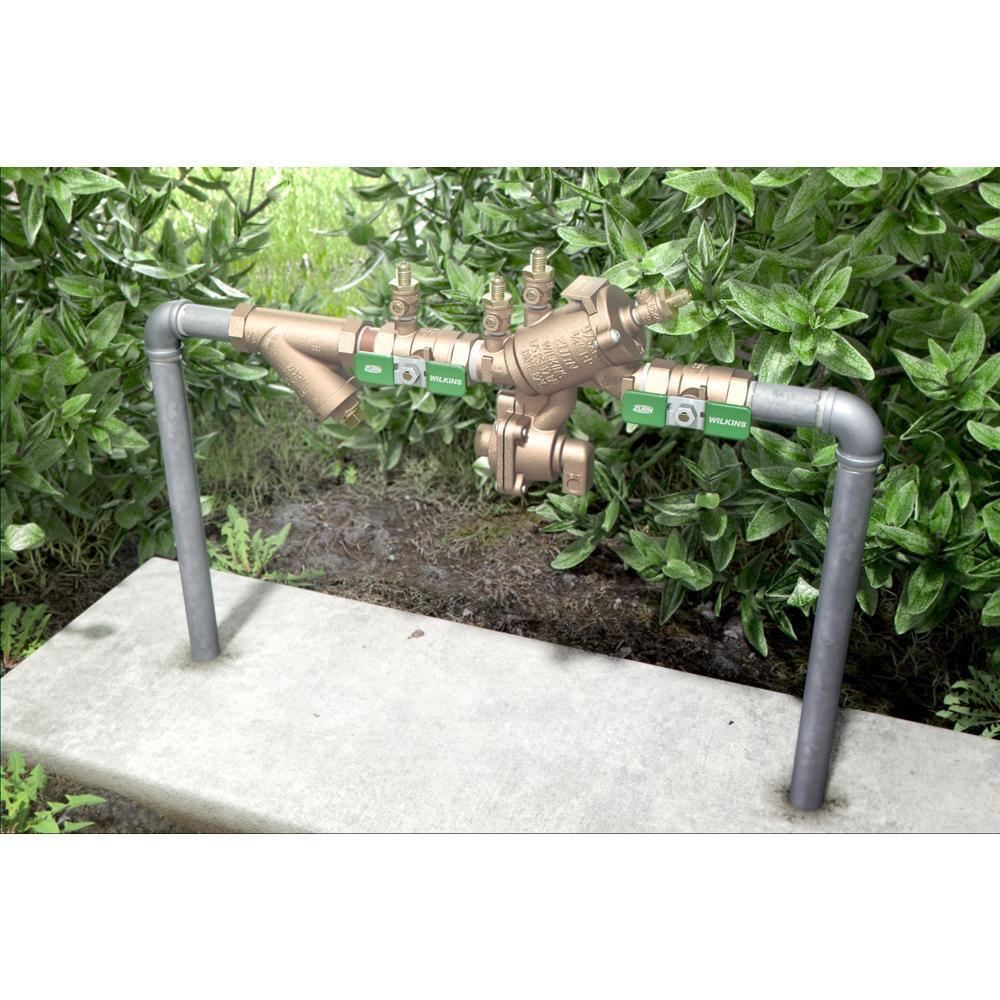

Zurn Wilkins Bronze NPT 350 psi Backflow Preventer
1-1/4 in. Reduced Pressure Principle Backflow Preventer Valve
Zurn Wilkins Bronze NPT 350 psi Backflow Preventer
1-1/4 in. Reduced Pressure Principle Backflow Preventer Valve
Zurn Wilkins

Model 975XL3 1-1/4 in Bronze FPT Reduced Pressure Principle Assembly with Quarter-Turn Ball Valves

  • Fast #
  • Part #W975XL3H
  • Item #9753845
  • Manufacturer Part #114-975XL3
5 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Add $45.00 more to cart to get FREE Shipping
  • Pick Up: Not available
  • Shipping: Available for immediate shipment

Frequently Purchased Together

Product Details

Product Details

  • For piping with 1-1/4 in. inner diameter
  • Comes with full port QT ball valves with stainless steel handles
  • Compact and shortest bronze small backflow valve on the market allowing for installation versatility
  • All-bronze body ensures durability against the elements, with a Noryl®* check body and stainless-steel fasteners to resist corrosion over time.
  • EZSWAP® modular check with top access speeds up repairs and replacements
  • Test ports located on valve’s centerline make install and testing easy
  • Interlocking connected checks provide ¼ turn to access and disassemble.
  • Low-cost repair kits extend the lifespan at a significantly lower cost
  • Lead Free* (0.25% max. weighted average lead content)
  • ASSE Listed, UPC® Listed, Meets NSF/ANSI/CAN 61 & 372 requirements; Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California; Safe Drinking Water Act Compliant
  • Requires Certification

  • Lead Law Compliant

Recommended Accessories

Specifications

ANSI:
ANSI 372, ANSI 61, ANSI B1.20.1
ASSE Standards:
ASSE 1013
ASTM:
ASTM B-584
AWWA:
AWWA C-511
Collection:
Model 975XL3
End Connection 1:
FPT
End Connection 2:
FPT
End Connections:
FPT
FM Approved:
No
Height:
4-1/16 in
Lead Law Compliance Level:
Lead Law Compliant and Certified
Lead Law Compliant:
Yes
Length:
15-9/16 in
Material:
Cast Bronze, Plastic, Stainless Steel
Material Type:
Noryl®
Minimum Temperature:
33
NSF:
NSF 372, NSF 61
NSF Certified:
Yes
Pressure - Maximum:
350 psi
Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Recommended Valve Application:
Potable Water
UL Listed:
Yes
Valve Body Material:
Bronze
Valve Body Style:
Inline
Valve Seat Material:
Noryl®
Valve Size:
1-1/4 in
Valve Type:
Reduced Pressure Principle Assembly
Weight:
15 lb
Width:
9-1/4 in
