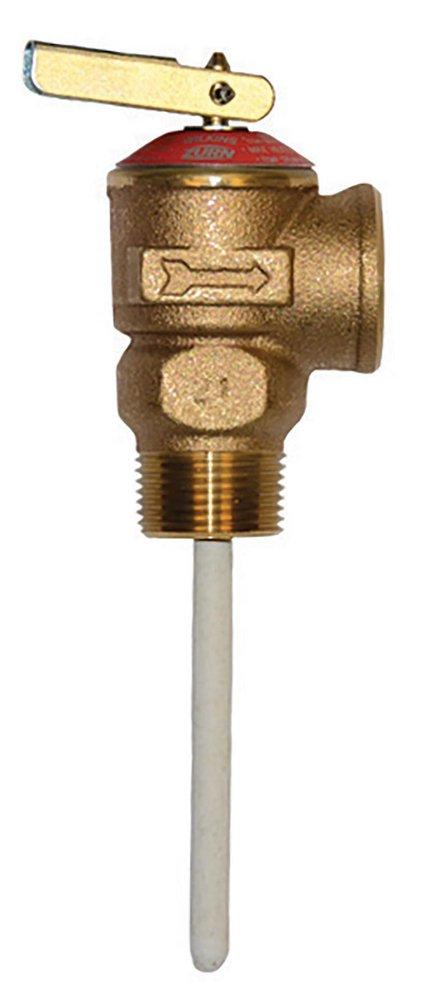

3/4 in. Cast Brass and Bronze and Stainless Steel and Silicone MNPT x FNPT 150# 210 Relief Valve
Zurn Wilkins
TP1100A 3/4 in. Cast Brass and Bronze and Stainless Steel and Silicone MNPT x FNPT 150# 210 Relief Valve
Package Quantity Info:
Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Zurn Wilkins
TP1100A
3/4 in. Cast Brass and Bronze and Stainless Steel and Silicone MNPT x FNPT 150# 210 Relief Valve
TP1100AE-3C-150C
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Commonly used on residential water heaters
- Protection from excessive pressure reduces risk of damage in residential applications
- Thermal element protected with epoxy coating
- CSA 4.4
- Epoxy-coating effectively protects the thermal element
- Certified to ASME Section IV by National Board
- Available in 75, 100, 125, 150, and 175 psi setting
Recommended Accessories
Specifications
- ANSI:
- ANSI Z21.22
- ASME:
- ASME Section IV
- ASTM:
- ASTM A-313, ASTM B-16, ASTM B-36, ASTM B-584
- Application:
- Residential, Commercial
- CSA Certified:
- CSA 4.4
- Collection:
- TP1100A
- Color Finish Name:
- Cast Bronze
- End Connection 1:
- MNPT
- End Connection 2:
- FNPT
- End Connections:
- MNPT x FNPT
- Fitting Size 1:
- 3/4 in
- Fitting Size 2:
- 3/4 in
- Height:
- 1-1/4 in
- Length:
- 6-1/2 in
- Material:
- Cast Brass, Bronze
- Maximum Temperature:
- 210
- Origin:
- Global
- Pressure - Maximum:
- 150 psi
- Pressure Class:
- 150#
- Proposition 65:
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Recommended Valve Application:
- Water
- UPC:
- 612052076508
- Valve Body Material:
- Cast Bronze
- Valve Body Style:
- Angle
- Valve Seat Material:
- Brass
- Valve Size:
- 3/4 in
- Valve Type:
- Pressure Relief Valve
- Weight:
- 1 lb
- Width:
- 1-1/4 in
