74 gal. Tall 75.1 MBH Low NOx Atmospheric Vent Natural Gas Water Heater

A.O. Smith

ProLine® 74 gal. Tall 75.1 MBH Low NOx Atmospheric Vent Natural Gas Water Heater

  • Fast #
  • Part #APCG7500L010000
  • Item #1875496
  • Manufacturer Part #100279911
4.7 out of 5 Customer Rating
Brand image

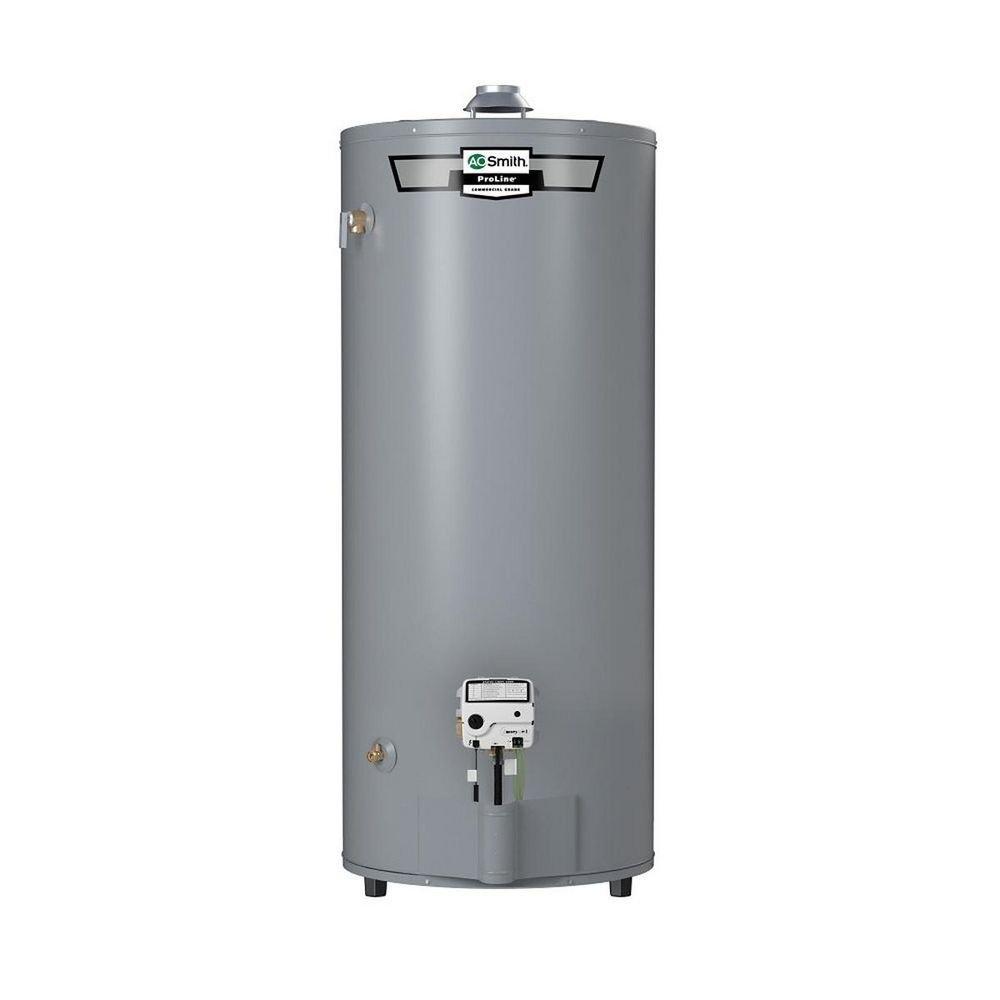

A.O. Smith Tall 75.1 MBH Residential Natural Gas Water Heater
A.O. Smith Tall 75.1 MBH Residential Natural Gas Water Heater
A.O. Smith

ProLine® 74 gal. Tall 75.1 MBH Low NOx Atmospheric Vent Natural Gas Water Heater

  • Fast #
  • Part #APCG7500L010000
  • Item #1875496
  • Manufacturer Part #100279911
4.7 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Looking for compatible parts?
Out of Stock

Product Details

Product Description
  • Highest recoveries and first hour ratings with capacity or input combinations up to 98 gallons; 75,100 BTUs produce recoveries up to 81 gallons per hour
  • Dynaclean™ diffuser dip tube helps reduce lime and sediment buildup, maximizes hot water output and is made from long lasting PEX cross-linked polymer
  • Fully automatic controls with safety shutoff is an accurate, dependable control system which requires no electric connections with a fixed automatic gas shutoff device for added safety
  • Green Choice® gas burner - patented eco-friendly design reduces NOx emissions up to 33% and complies with low emissions of less than 40 ng/J
  • Coregard™ anode rods have a stainless steel core that extends the life of the anode rod allowing superior tank protection far longer than standard anode rods
  • Heat trap nipples factory installed for faster installation
  • Push button piezo ignitor makes lighting pilot fast and easy with one hand push button spark ignition
  • Blue Diamond® glass coating provides superior corrosion resistance compared to the industry standard glass lining
  • Solid brass, tamper resistant, enhanced flow, ball type drain valve
  • CSA certified and ASME rated T&P relief valve
  • Requires Certification
Dimensions & Measurements
Capacity
74 gal
Diameter
26-1/2 in
Height
61 in
Pressure - Maximum
300 psi
Water Connections
Top
Water Connection Size
1 in
Water Heater Capacity Range
51 - 100 gal
Characteristics & Features
Collection
ProLine®
Drain Valve Material
Brass
Lining of Tank
Blue Diamond® Glass
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Vent Type
Atmospheric Vent
Water Heater Type
Tall
Electrical & Operational Information
BTU
75100
Emission
Low NOx
Fuel Type
Natural Gas
Maximum Temperature
154
MBH
75.1
Power Source
Gas
Temperature Range
Up to 154 Deg F
Warranty & Product Information
ANSI
ANSI Z21.10.3
Application
Residential
CEC Compliant
For Sale in CA
CSA Certified
CSA 4.3
Energy Star Compliant
No
ETL Listed
No
UL Listed
Yes
UPC
671657013882
