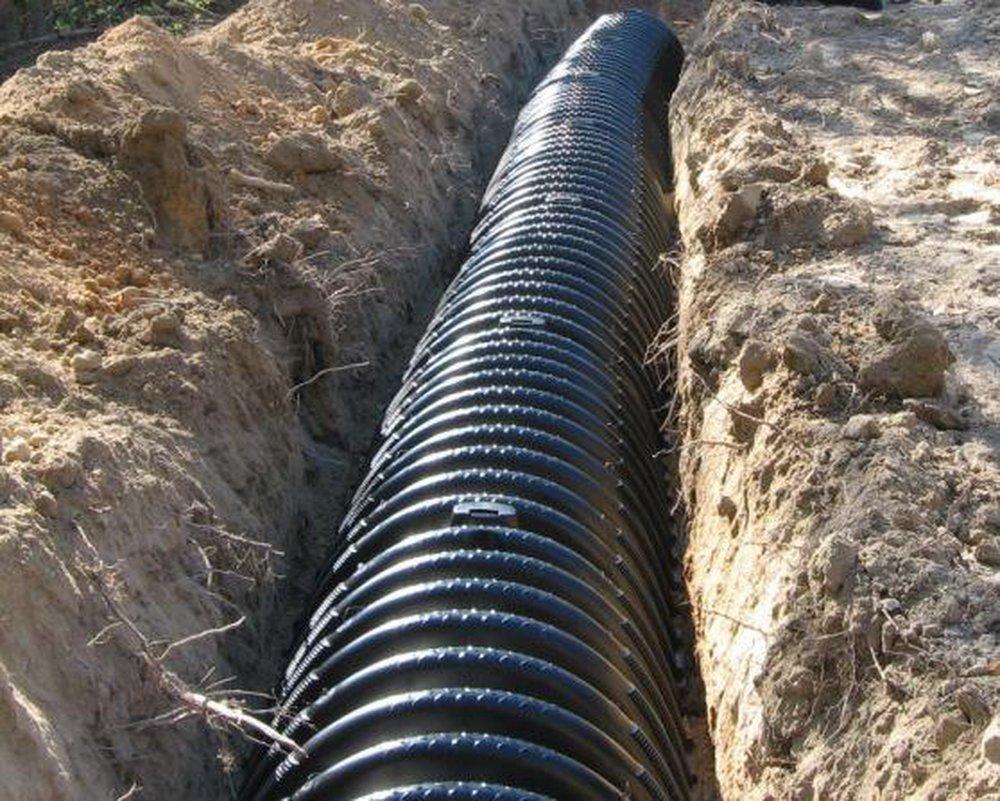

Arc 36 High Capacity Chamber
ADS®
Arc 36 High Capacity Chamber
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
Purchase history
ADS®
Arc 36 High Capacity Chamber
3616BD3
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Injection–molded from High Density Polyethylene (HDPE) for lightweight and sturdy design
- 20–degree integral articulating joint that is ideal for either straight or contoured septic leach field applications
- True corrugated chamber design eliminates flat surfaces and provides increased load bearing capability in the trench
- “Lock and Drop” joint provides a more positive connection during installation and backfill
- A universal inlet/outlet end cap
- Inspection vent ports on every unit with easy–to–remove knockouts for maximum job site flexibility
- Convenient five–foot lengths are easy to handle
- Side Port Coupler snaps in place to allow side entry at any joint throughout the trench line
Dimensions & Measurements
Height
16 in
Length
63 in
Width
34-1/2 in
Characteristics & Features
Color Finish Name
Black
Material
Plastic
Material Type
HDPE
Warranty & Product Information
Type
A3616BD3
Waterworks Application
Sewage Disposal
UPC
096942905121
