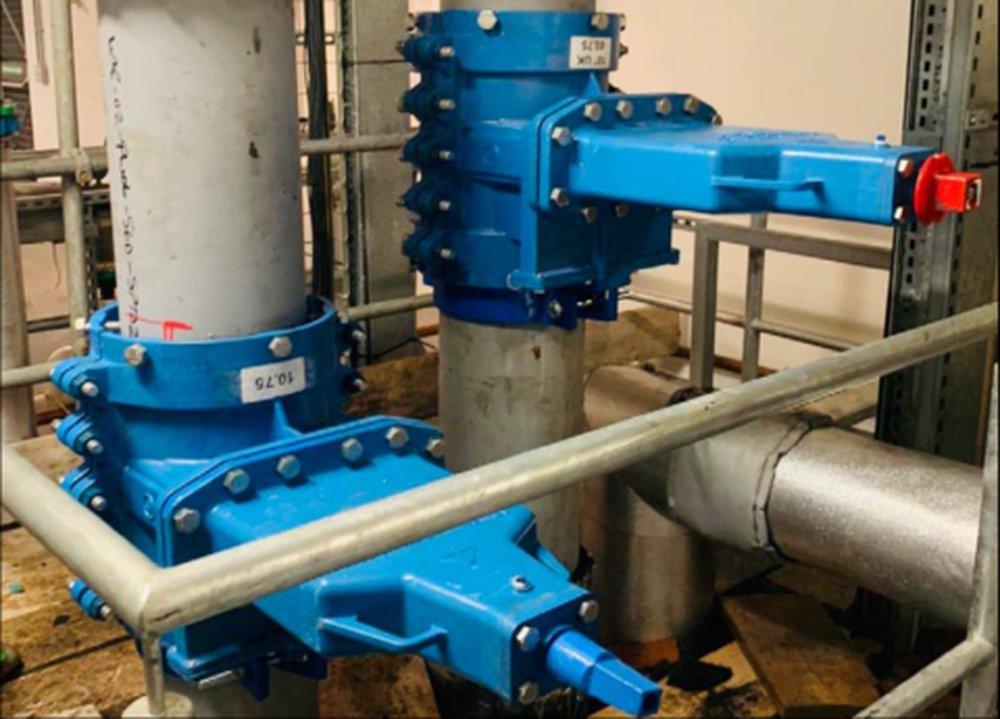

8 in. OD Tube Ductile Iron 3 Piece Tapping Valve
Advanced Valve Technologies
EZ Valve™ 8 in. OD Tube Ductile Iron 3 Piece Tapping Valve
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
Purchase history
Advanced Valve Technologies
EZ Valve™
8 in. OD Tube Ductile Iron 3 Piece Tapping Valve
080EZVOL915
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Unique, patented technology
- Low profile design
- Ductile iron castings
- Integrated isolation valve
- Patented gaskets that conform to irregular pipe geometries and sizes
- Sizes 4 in to 14 in (100mm to 350mm)
- Can be installed on all common pipe materials
- Installs at any angle
- Valve bonnet can be removed after a repair or remain in place as a permanent functioning valve
- Approved epoxy resin coated
Dimensions & Measurements
End Connection 1
OD Tube
End Connection 2
OD Tube
End Connections
OD Tube
Height
24 in
Length
17-73/100 in
Pressure - Maximum
375 psi
Valve Size
8 in
Width
16-39/100 in
Characteristics & Features
Coating
Epoxy
Collection
EZ Valve™
Material
Ductile Iron
Valve Body Material
Ductile Iron
Valve Body Style
3 piece
Valve Disc Material
Ductile Iron
Valve Stem
Resilient Wedge
Valve Type
Waterworks Tapping Valve
Warranty & Product Information
ANSI
ANSI 372, ANSI 61
ASTM
ASTM 10429, ASTM A-536 65-45-12, ASTM C-519100, ASTM C-90300
AWWA
AWWA C-509 2001, AWWA C-515 2015
FM Approved
No
NSF
NSF 372, NSF 61
NSF Certified
Yes
Recommended Valve Application
Building, Petrochemical, Refining, Sewer Service, Waste Water, Potable Water
UL Listed
Yes
Waterworks Application
Water
