6 in. x 20 ft. Fastite® Joint Zinc Plated CL350 Ductile Iron Fastite Pipe with Protecto 401 Lined
American Cast Iron Pipe
6 in. x 20 ft. Fastite® Joint Zinc Plated CL350 Ductile Iron Fastite Pipe with Protecto 401 Lined
Package Quantity Info:
Foot: 1 Stick: 20 Bundle: 240
Log in or Create Account
Log in or Create an Account to see product availability.
All Sizes
Purchase history
American Cast Iron Pipe
6 in. x 20 ft. Fastite® Joint Zinc Plated CL350 Ductile Iron Fastite Pipe with Protecto 401 Lined
AFT350PP4UZN
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- The American Fastite Joint, furnished in sizes 4" to 64", is a flexible, rubber ring compression-type joint used extensively in underground service for water, sewage or other liquids. It has the proven long-life and high-strength qualities inherent in pipe produced centrifugally in accordance with AWWA C-151
- In addition, this significant American development, a dependable, single gasket, push-on type joint meeting the requirements of AWWA C-111, affords the customer lower joint cost and time-saving advantages in installation
- Fastite Joint pipe provides exceptional strength and flexibility and has been widely accepted by engineers, contractors and utility officials since the 1950s. For added flexibility during construction, and for possible elimination of bends, a liberal 5° allowable deflection is standard in all sizes through 30", offering 21" offset in a 20’ length of pipe
- Liberal deflection can also be provided in larger diameter pipe with standard and special Fastite deflection bells
- The patented American Fastite Joint embodies many advanced design features and is rated for a water working pressure of 350 psi. For specific conditions, ductile iron piping with this joint has been approved for higher pressure conditions

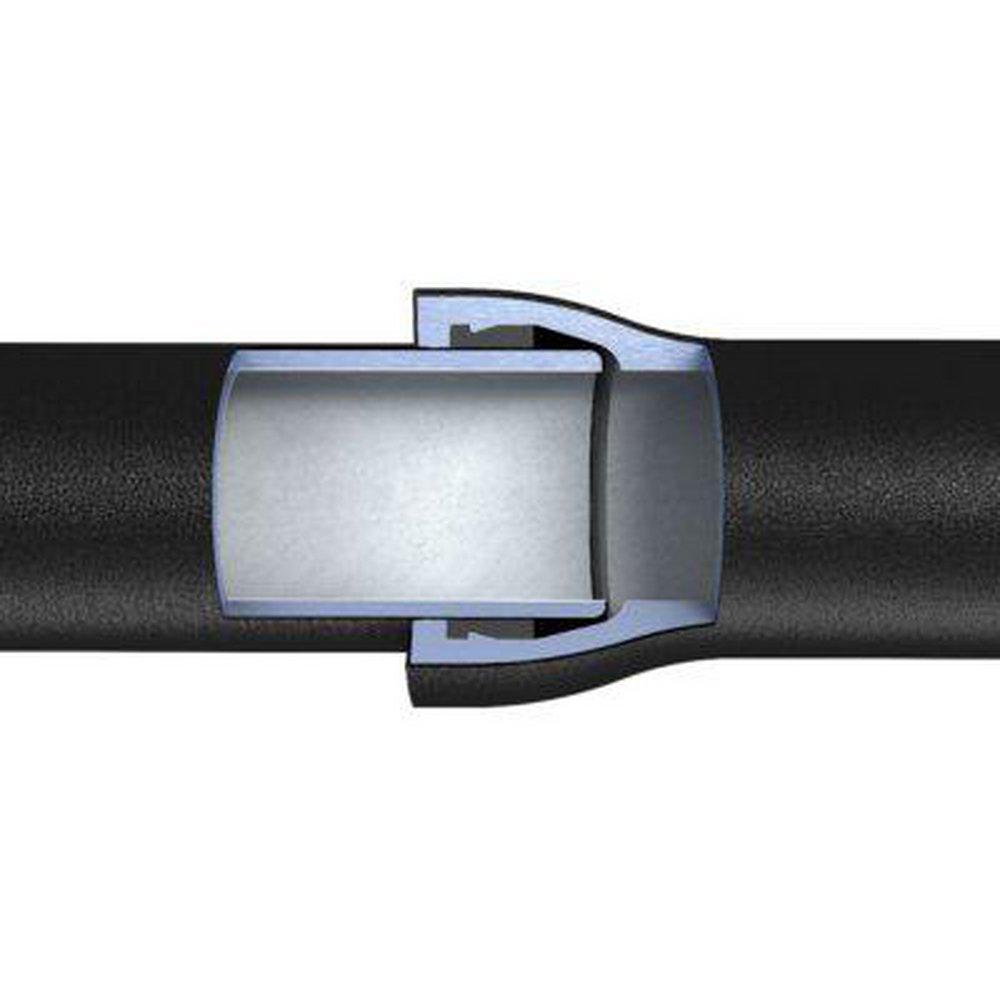

- The socket, which is scientifically designed with two gasket recesses and a dividing buttress, is manufactured to close tolerances so that the gasket is self-centered, securely confined, and firmly compressed for a permanent, tight, trouble-free joint
- The Fastite Joint seal, bubble-tight under vacuum and external pressure, becomes even tighter with the application of internal pressure due to a specially designed wedging surface in the socket
- The Fastite Joint pipe bell opening is slightly tapered to provide easy entry of the pipe end; the flared socket design permits liberal joint deflection. The plain end of the pipe is tapered or rounded to facilitate entry into the bell and self-centering in the gasket
- On pipe cut in the field, the plain end can be easily beveled and smoothed by the use of a portable grinding wheel or other suitable apparatus. A stripe is painted on the plain end of American Fastite Joint pipe to provide a visual means of checking the joint alignment and to assure proper insertion
Dimensions & Measurements
End Connection 1
Fastite Joint
End Connection 2
Fastite Joint
End Connections
Fastite® Joint
Length
20 ft
Characteristics & Features
Coating
Zinc Plated
Ductile Iron Class
CL350
Ductile Iron Pipe Type
Ductile Iron Fastite Pipe
Material
Ductile Iron
Pipe Lining
Protecto 401
PipeTubing Size
6 in
Warranty & Product Information
ANSI
ANSI 61, ANSI A21.11, ANSI C111, ANSI C600
Application
Other Liquids, Sewage, Water
ASTM
ASTM A-563
AWWA
AWWA A-21.11, AWWA C-111, AWWA C-151, AWWA C-600
FM Approved
No
NSF
NSF 61
NSF Certified
Yes
UL Listed
No
