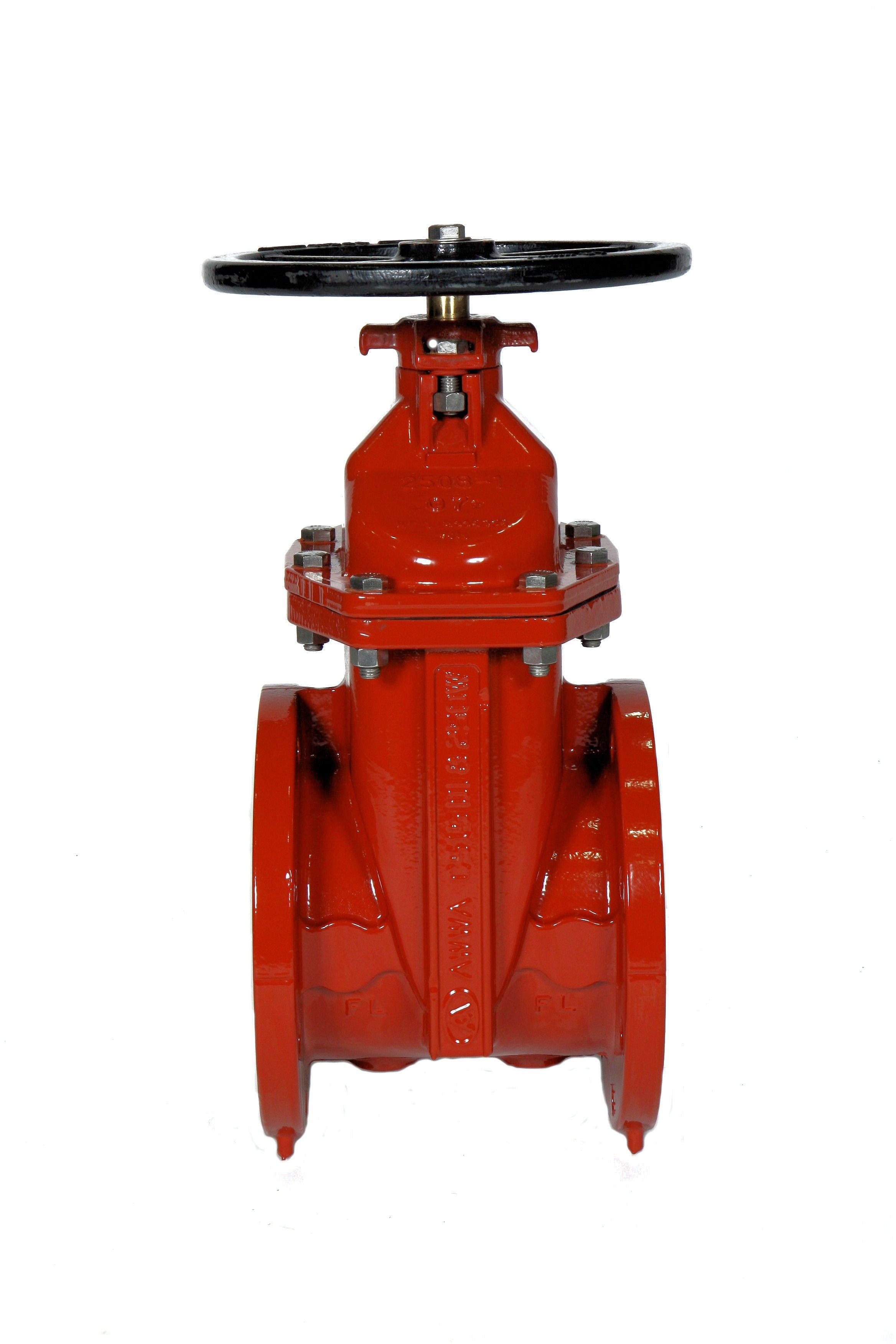

16 in. Mechanical Joint Ductile Iron 316 Open Left Resilient Wedge Gate Valve
American Flow Control
2500 Series 16 in. Mechanical Joint Ductile Iron 316 Open Left Resilient Wedge Gate Valve
Points
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
Purchase history
American Flow Control
2500 Series
16 in. Mechanical Joint Ductile Iron 316 Open Left Resilient Wedge Gate Valve
2516ALAGMM
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Dimensions & Measurements
End Connection 1
Mechanical Joint
End Connection 2
Mechanical Joint
End Connections
Mechanical Joint x Mechanical Joint
Length
20-7/8 in
Pressure Class
125#
Pressure - Maximum
250 psig
Valve Size
16 in
Characteristics & Features
Coating
Fusion Bonded Epoxy
Collection
2500 Series
Ductile Iron Pipe Type
Ductile Iron Mechanical Joint Pipe
Material
Ductile Iron
Valve Body Style
Open Left
Valve Bonnet Type
Bolted
Valve Disc Material
Ductile Iron
Valve Operator
Operating Nut
Valve Port Opening
Valve Stem
Valve Seat Material
Metal
Valve Stem
Non-Rising
Valve Type
Resilient Wedge Gate Valve
Warranty & Product Information
ANSI
ANSI 372, ANSI 61, ANSI A21.10, ANSI B2.1, ANSI C515, ANSI C550
Application
Backflow Preventer, Fire, Irrigation, Potable Water, Sewage
ASME
ASME B16.1, ASME B16.4
ASTM
ASTM A-536, ASTM D-1785, ASTM D-2000, ASTM D-2241
AWWA
AWWA C-110, AWWA C-111, AWWA C-515, AWWA C-550
FM Approved
Yes
MSS
MSS SP-45, MSS SP-113
NSF
NSF 61, NSF 372
NSF Certified
Yes
UL Listed
Yes
Waterworks Application
Water
