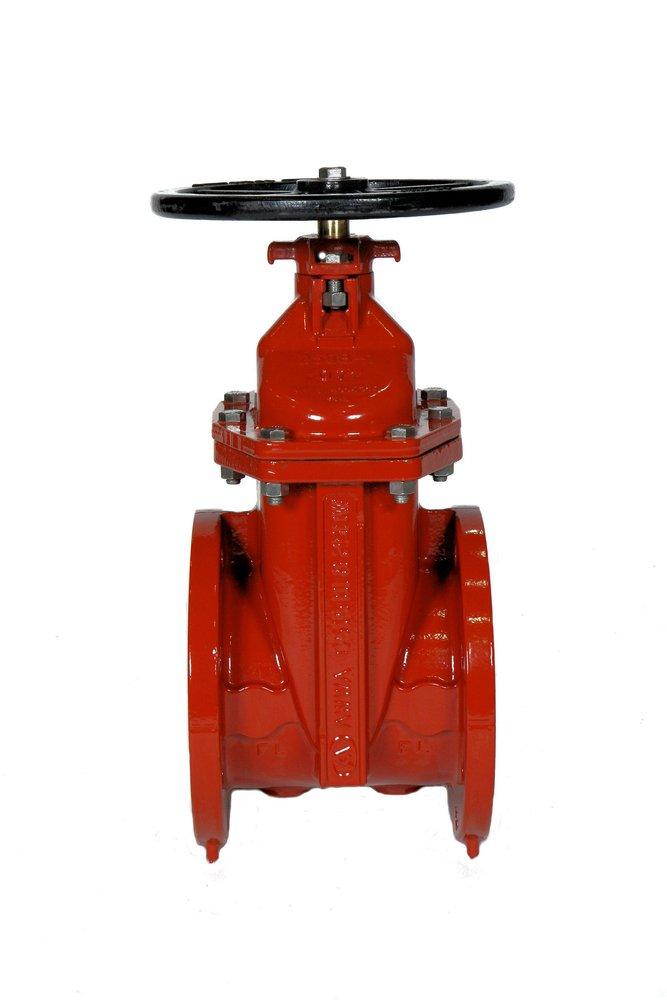

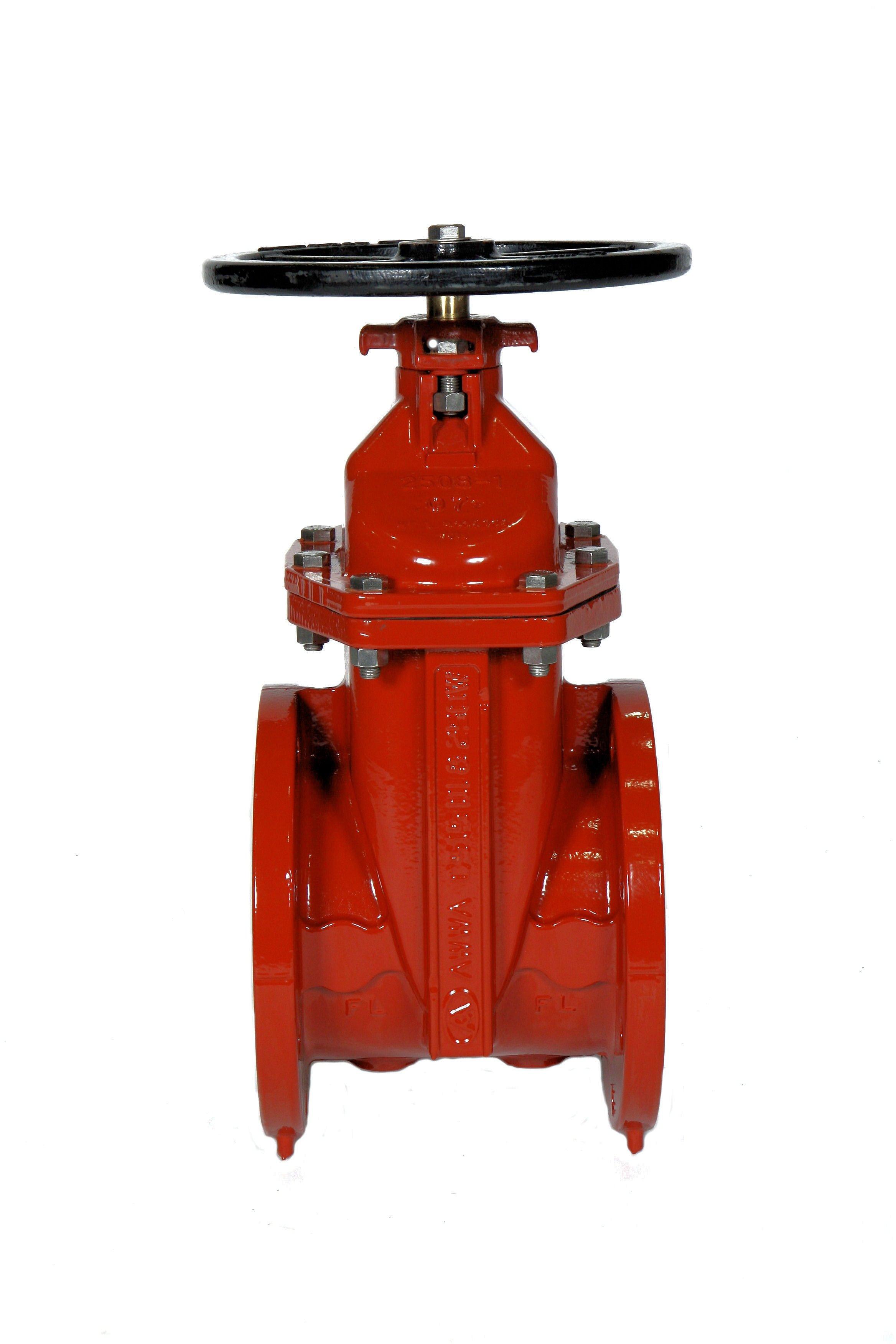

3 in. Flanged Ductile Iron Open Right Resilient Wedge Gate Valve with Operating Nut
American Flow Control
2500 Series 3 in. Flanged Ductile Iron Open Right Resilient Wedge Gate Valve with Operating Nut
Points
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
Purchase history
American Flow Control
2500 Series
3 in. Flanged Ductile Iron Open Right Resilient Wedge Gate Valve with Operating Nut
2503ALAFFF
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Open right direction
- Thrust washers
- Smooth waterway design
- Sealing the lubrication chamber is a series of three O-ring stem seals. the O-rings help to isolate the lubrication chamber
- Thrust washers are located above and below the stem collar ensuring trouble-free operation of the valve
- The Series 2500 valve is epoxy coated on the interior and the exterior. the fusion-bonded epoxy coating is applied prior to assembly. the bolt holes and body-to-bonnet flange surfaces are fully epoxy coated
- Flat features on valve body allows the valve to stand upright for storage or during installation
Dimensions & Measurements
End Connection 1
Flanged
End Connection 2
Flanged
End Connections
Flanged x Flanged
Length
8 in
Pressure Class
125#
Pressure - Maximum
250 psig
Valve Size
3 in
Characteristics & Features
Coating
Fusion Bonded Epoxy
Collection
2500 Series
Ductile Iron Pipe Type
Ductile Iron Flanged Pipe
Material
Ductile Iron
Valve Body Material
Ductile Iron
Valve Body Style
Open Right
Valve Bonnet Type
Bolted
Valve Disc Material
Ductile Iron
Valve Operator
Operating Nut
Valve Port Opening
Valve Stem
Valve Seat Material
Metal
Valve Stem
Non-rising
Valve Type
Resilient Wedge Gate Valve
Warranty & Product Information
ANSI
ANSI A21.10
Application
Fire, Irrigation, Potable Water, Sewage
ASME
ASME B16.1, ASME B16.4
ASTM
ASTM A-536, ASTM B-763
AWWA
AWWA C-110, AWWA C-515, AWWA C-550
FM Approved
Yes
MSS
MSS SP-45, MSS SP-113
NSF
NSF 61, NSF 372
NSF Certified
Yes
Recommended Valve Application
Water
UL Listed
Yes
Waterworks Application
Water
