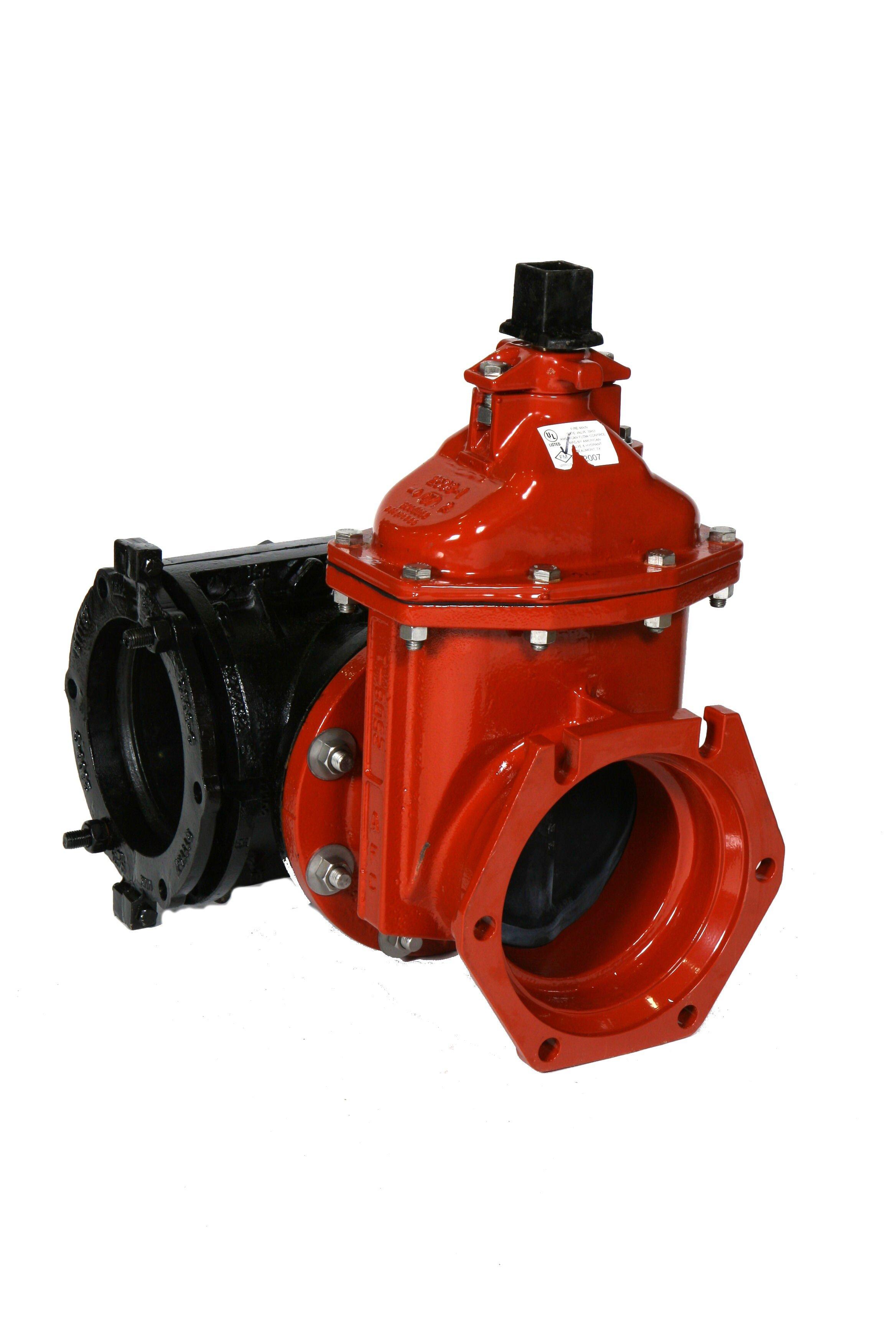

4 in. Mechanical Joint Ductile Iron Open Right Resilient Seated Tapping Valve (Less Accessories)
American Flow Control
2500 Series 4 in. Mechanical Joint Ductile Iron Open Right Resilient Seated Tapping Valve (Less Accessories)
Points
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 8 Pallet: 16
Log in or Create Account
Log in or Create an Account to see product availability.
Purchase history
American Flow Control
2500 Series
4 in. Mechanical Joint Ductile Iron Open Right Resilient Seated Tapping Valve (Less Accessories)
2504ALAFTM
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Brass stem
- Valve open right
- 2" square operating nut
- 304 SS bolts
- Tapping flange x MJ
- Products sold in select areas only. Please contact your local branch for availability in your area
Documents
Dimensions & Measurements
End Connection 1
Flanged
End Connection 2
Mechanical Joint
End Connections
Flanged x Mechanical Joint
Length
9-69/100 in
Pressure - Maximum
250 psig
Valve Size
4 in
Characteristics & Features
Coating
Fusion Bonded Epoxy
Collection
2500 Series
Material
Ductile Iron
Valve Body Style
Flanged
Valve Bonnet Type
Bolted
Valve Disc Material
Ductile Iron
Valve Operator
Operating Nut
Valve Port Opening
Valve Stem
Valve Seat Material
Metal
Valve Stem
Resilient Wedge
Warranty & Product Information
ANSI
ANSI C515, ANSI C550, ANSI C153, ANSI A21.53, ANSI A21.10, ANSI 61, ANSI 372, ANSI C110, ANSI A21.11
AWWA
AWWA C-515, AWWA C-550, AWWA C-153, AWWA C-110, AWWA C-111, AWWA A-21.10, AWWA A-21.11, AWWA A-21.53
FM Approved
Yes
MSS
MSS SP-113, MSS SP-60
NSF
NSF 61, NSF 372
NSF Certified
Yes
UL Listed
Yes
Waterworks Application
Water
UPC
674630503714
